Electronic Control Module (ECM)
Electronic Control Module (ECM)
Behind RH Side Of I/P:

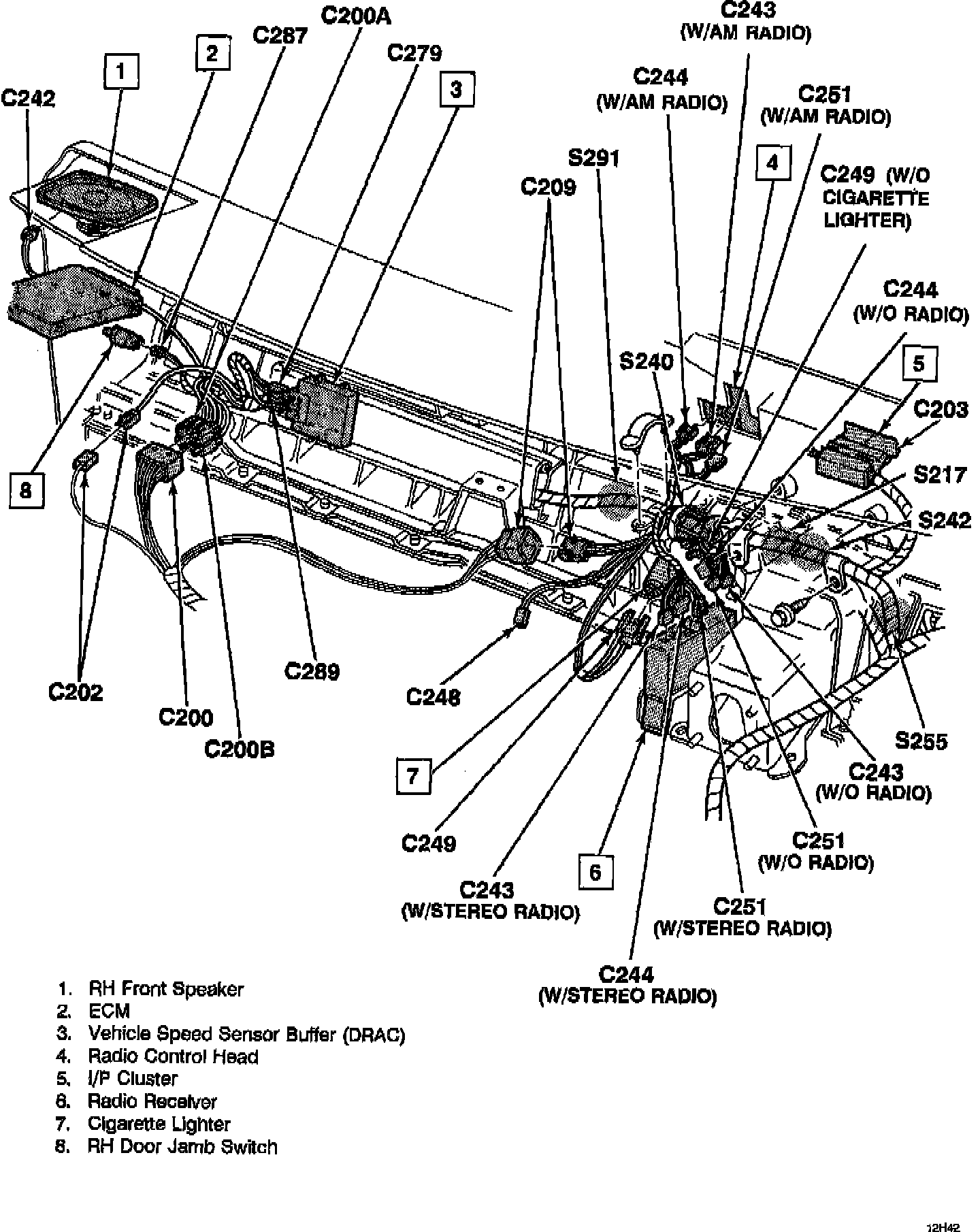

Instrument Panel Wiring - RH Side:
Under RH side of I/P
