Control Module, A/T
Control Module, A/T

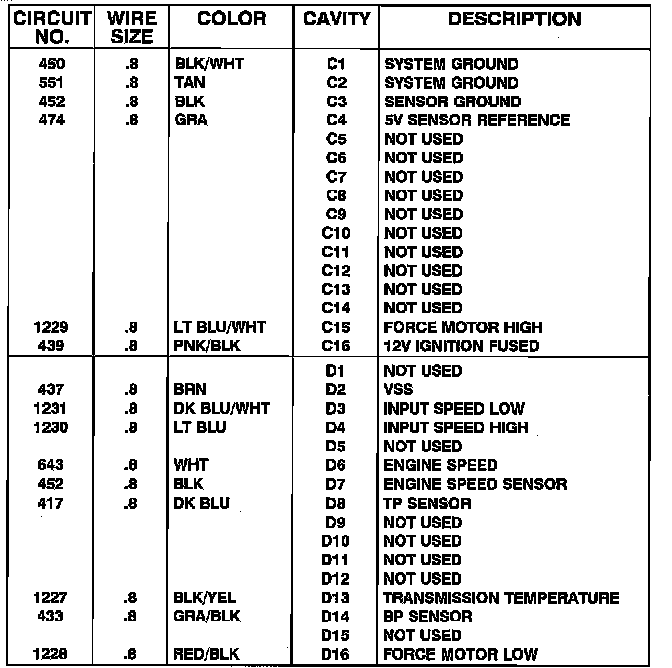

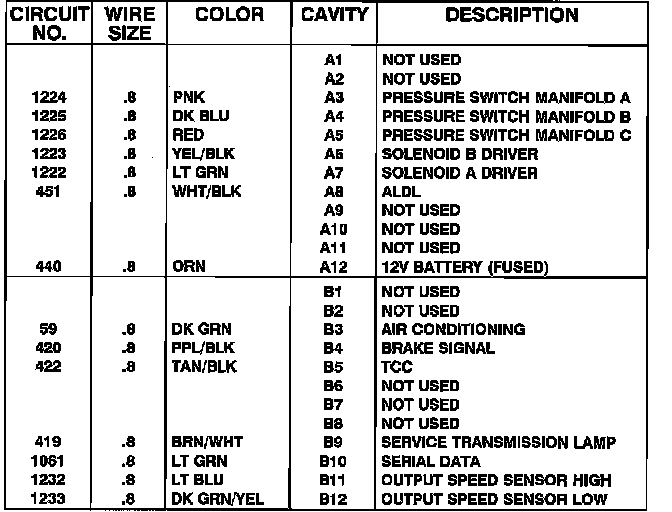

Transmission Control Module (TCM) Pinouts:
Transmission Control Module (TCM) Pinouts:
