Ignition Control Module: Locations

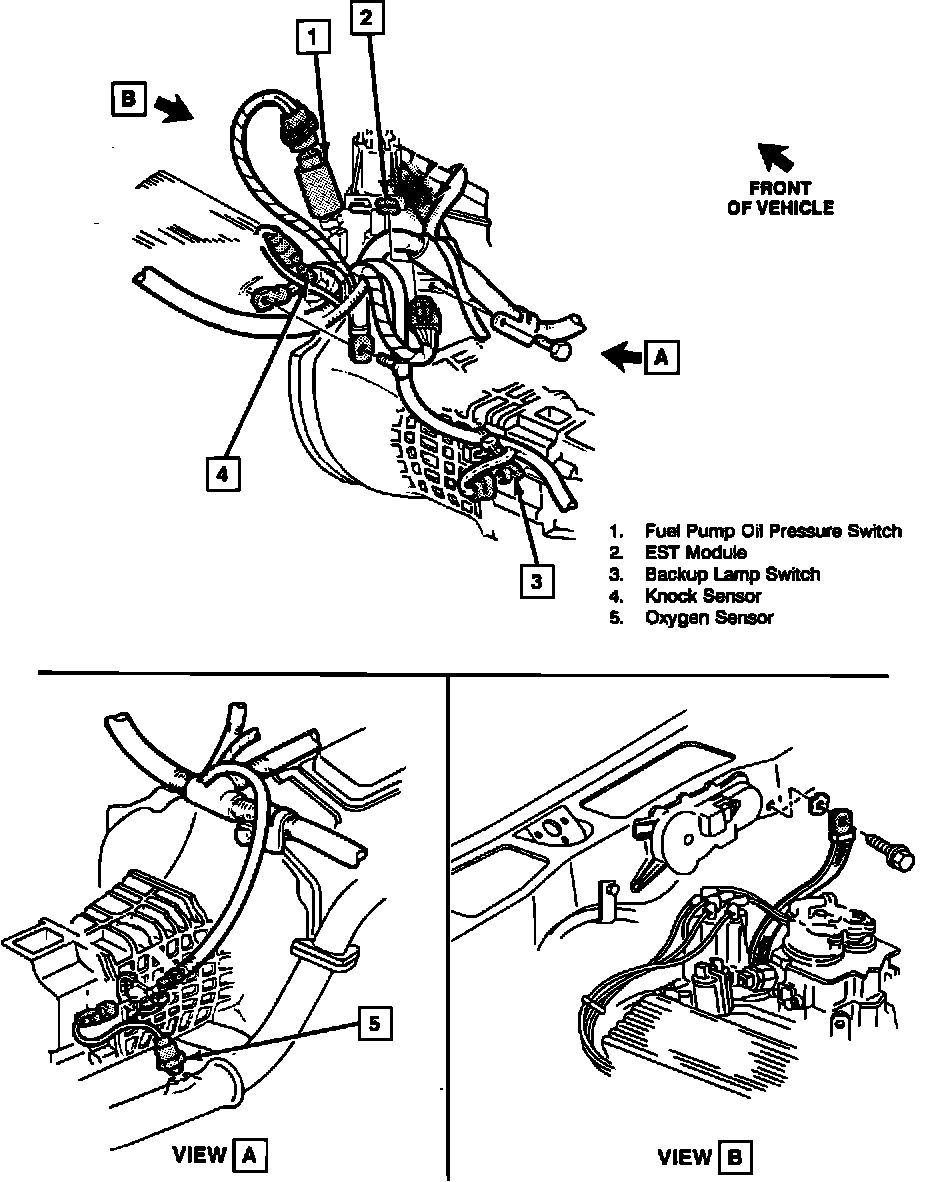

Rear Engine Components.:

Rear Engine Components.:

Top Rear Of Engine

Applicable to: 1991-92 4.3L/V6-262 Engine, Except Bravada & Automatic Transmission
