lemon-mirror
:
Home
>>
GMC
>>
1991
>>
Syclone V6-262 4.3L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
Engine Control Module

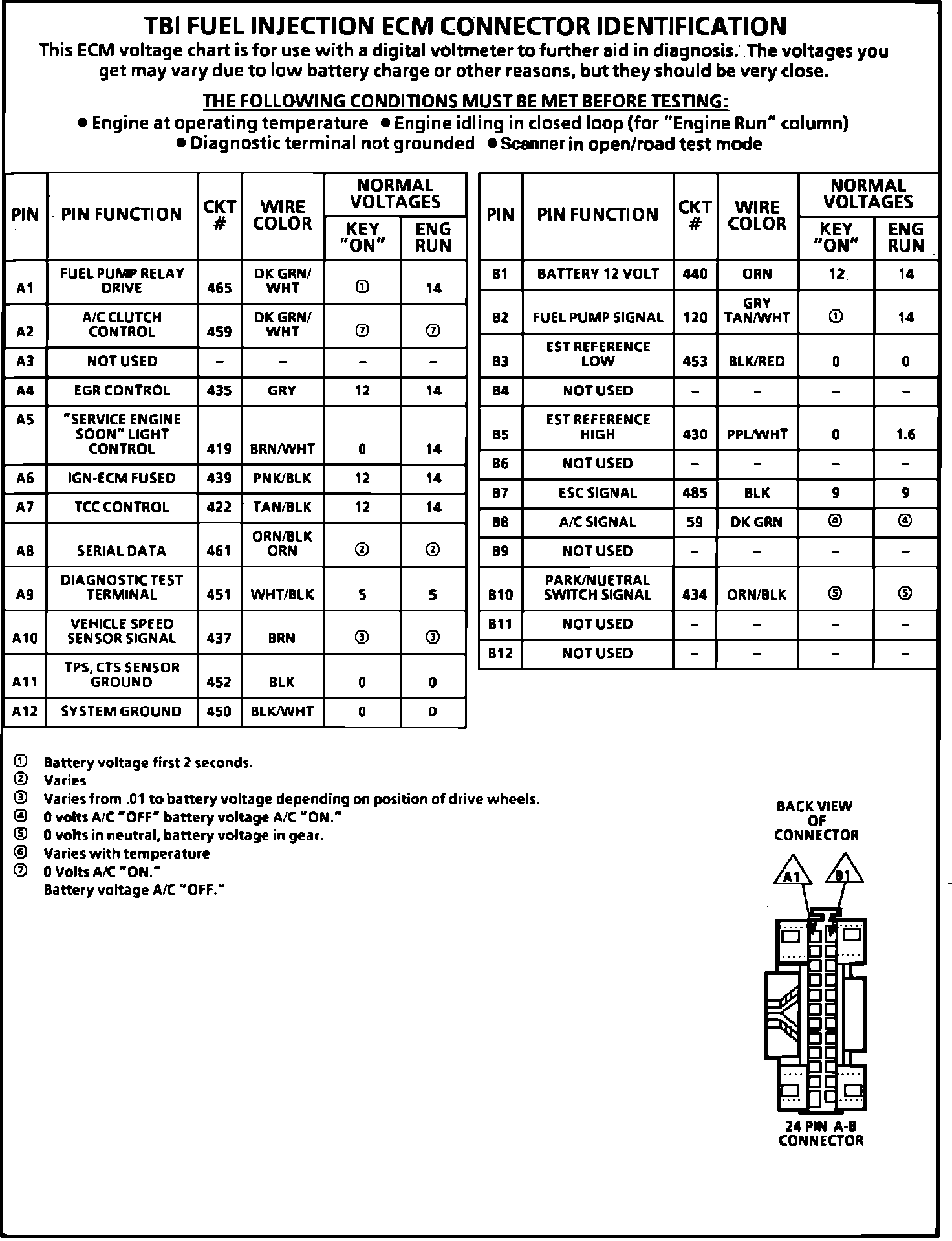

ECM Terminal Identification And Voltage Specification Part 1 Of 2:

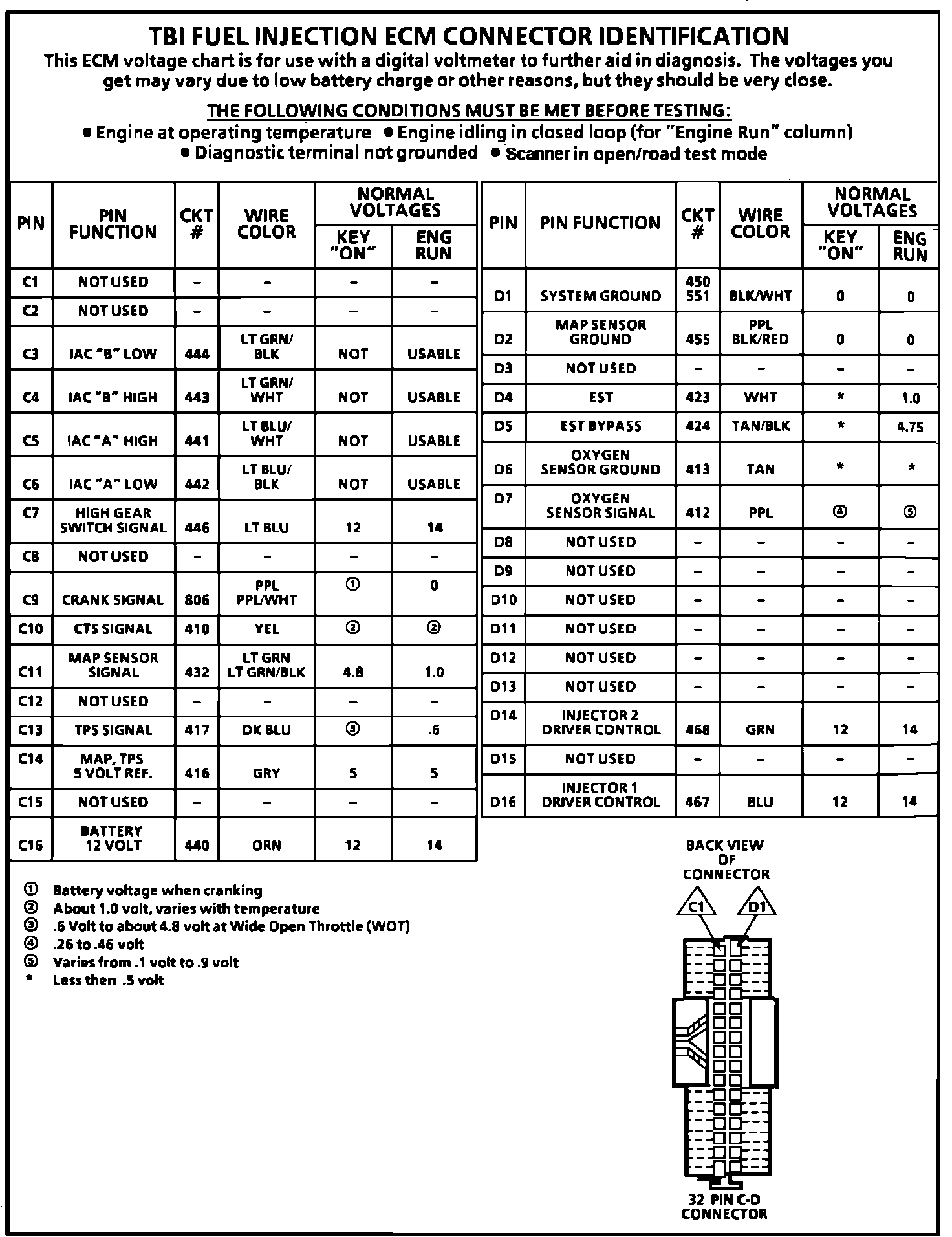

ECM Terminal Identification And Voltage Specification Part 2 Of 2:
