Compressor Control Valve Assembly: Service and Repair

V5 COMPRESSOR

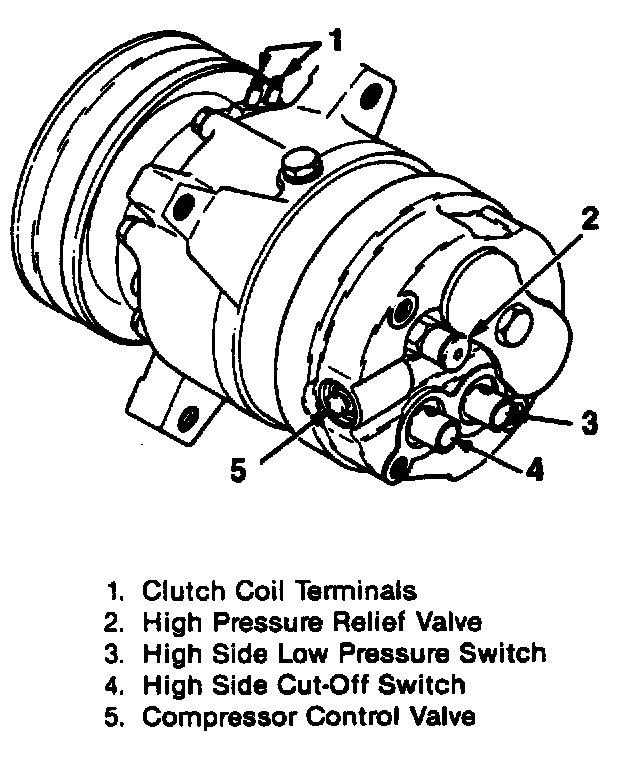

Rear Head Details - V5 Compressor:

Compressor Components:

Remove or Disconnect

Tools Required:
J 5403 Internal Snap Ring Pliers

1. Retainer ring with J 5403.
2. O-ring seal (44).
3. valve (5).

Install or Connect

Tools Required:
J 5403 Internal Snap Ring Pliers

1. Valve (5)
2. O-ring seal (44).
- Dip the seals into new clean 525 refrigerant oil.
3. Retainer (45) with J 5403.
