Home >> GMC >> 1991 >> Syclone V6-262 4.3L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Compressor HVAC >> With SD-709 Compressor

With SD-709 Compressor

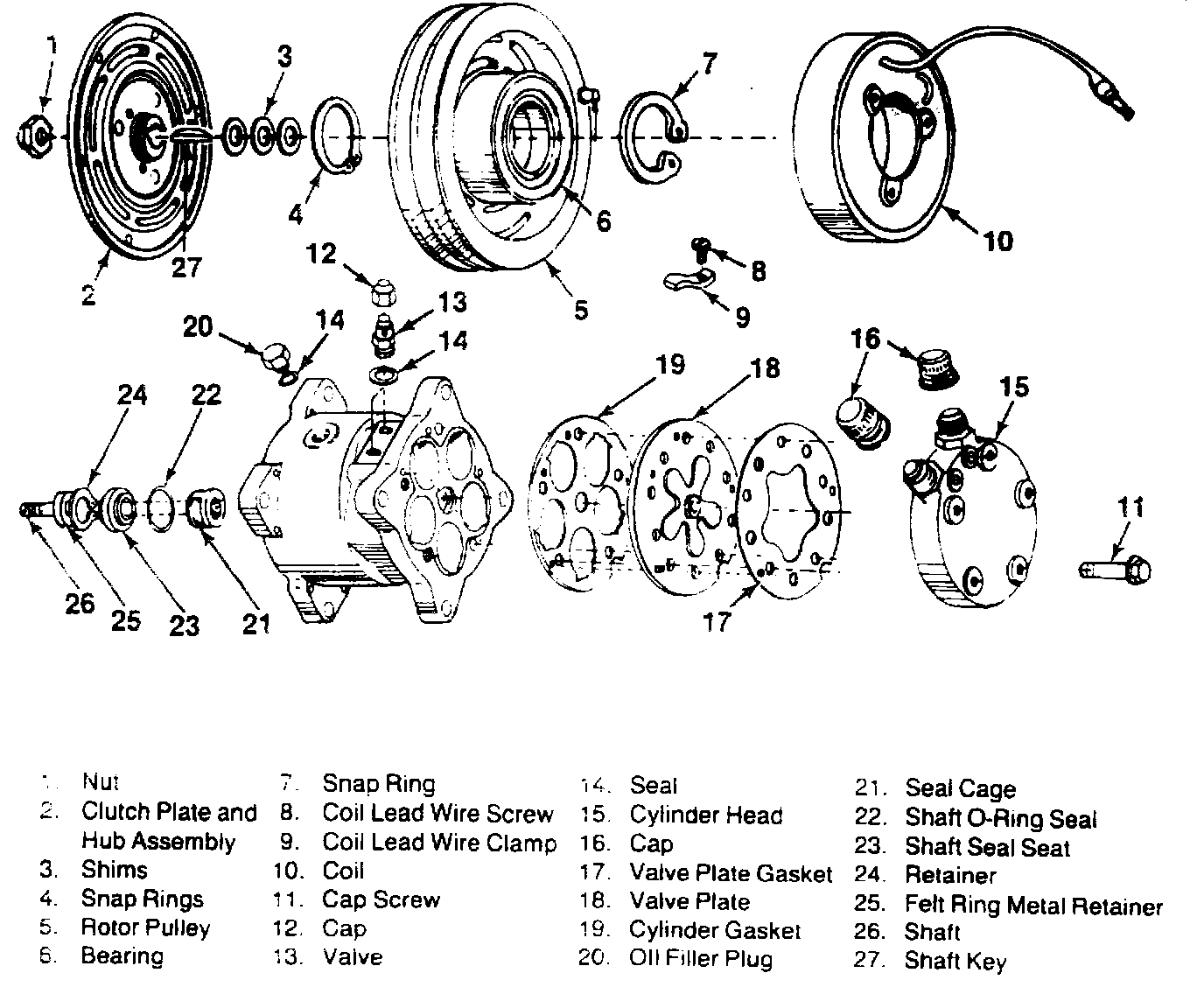

Compressor Components:
