Syclone V6-262 4.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>

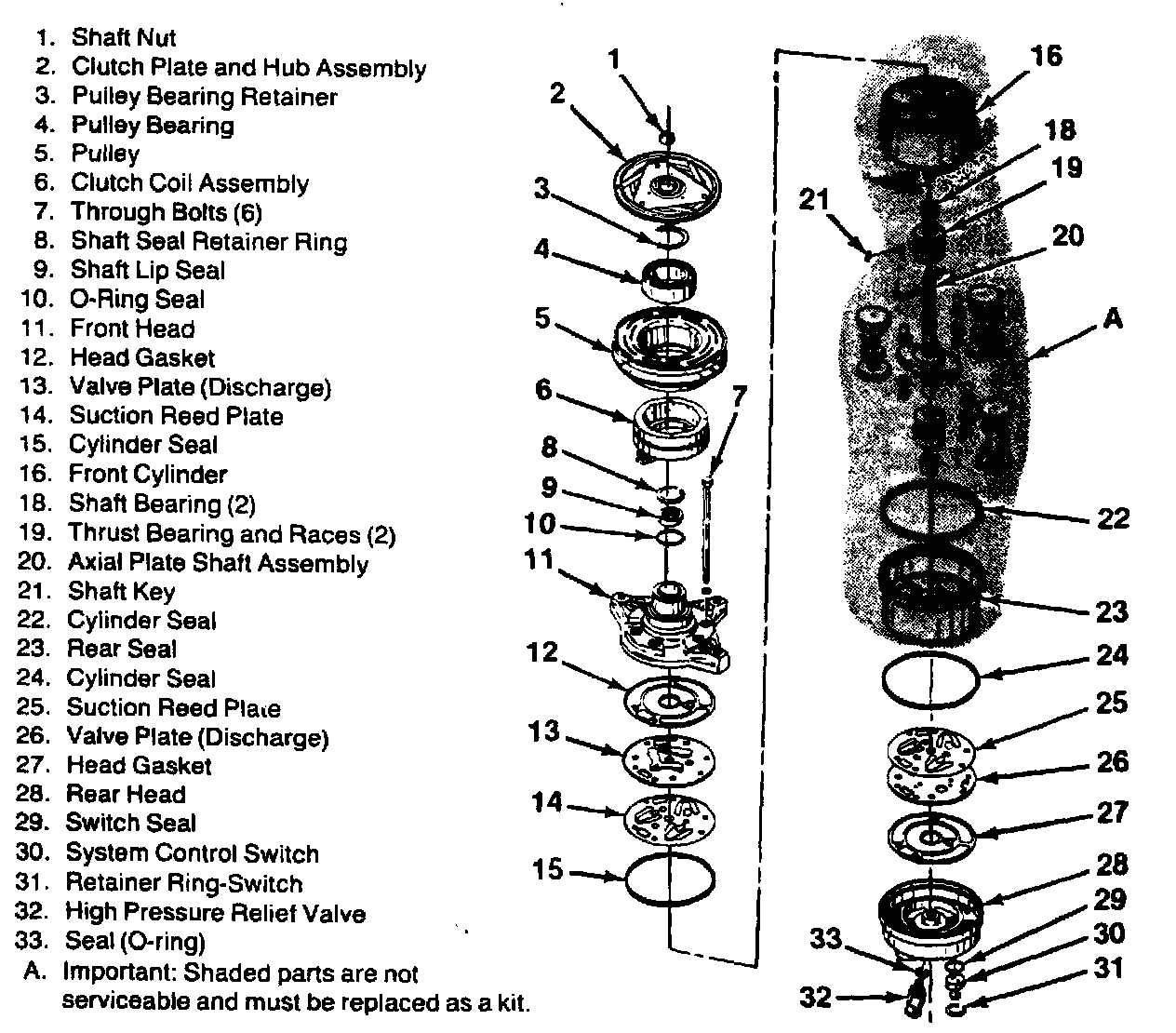

Exploded Views
>>
Compressor HVAC
>>
With HR-6 HE Compressor
With HR-6 HE Compressor
Component View:
