Home >> GMC >> 1982 >> Jimmy Full Size V8-305 5.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

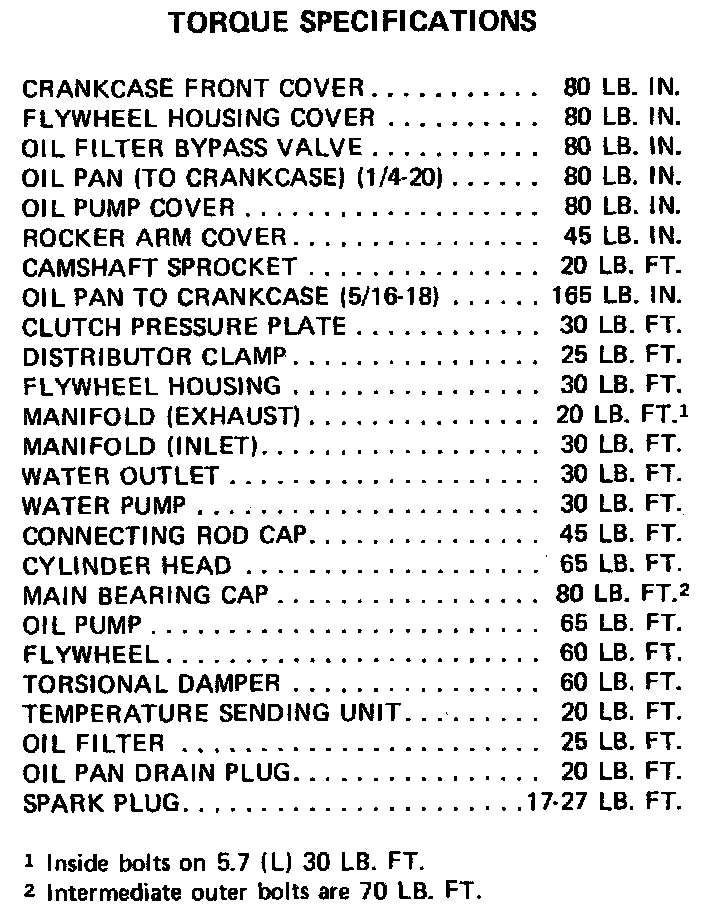

Torque Specifications:

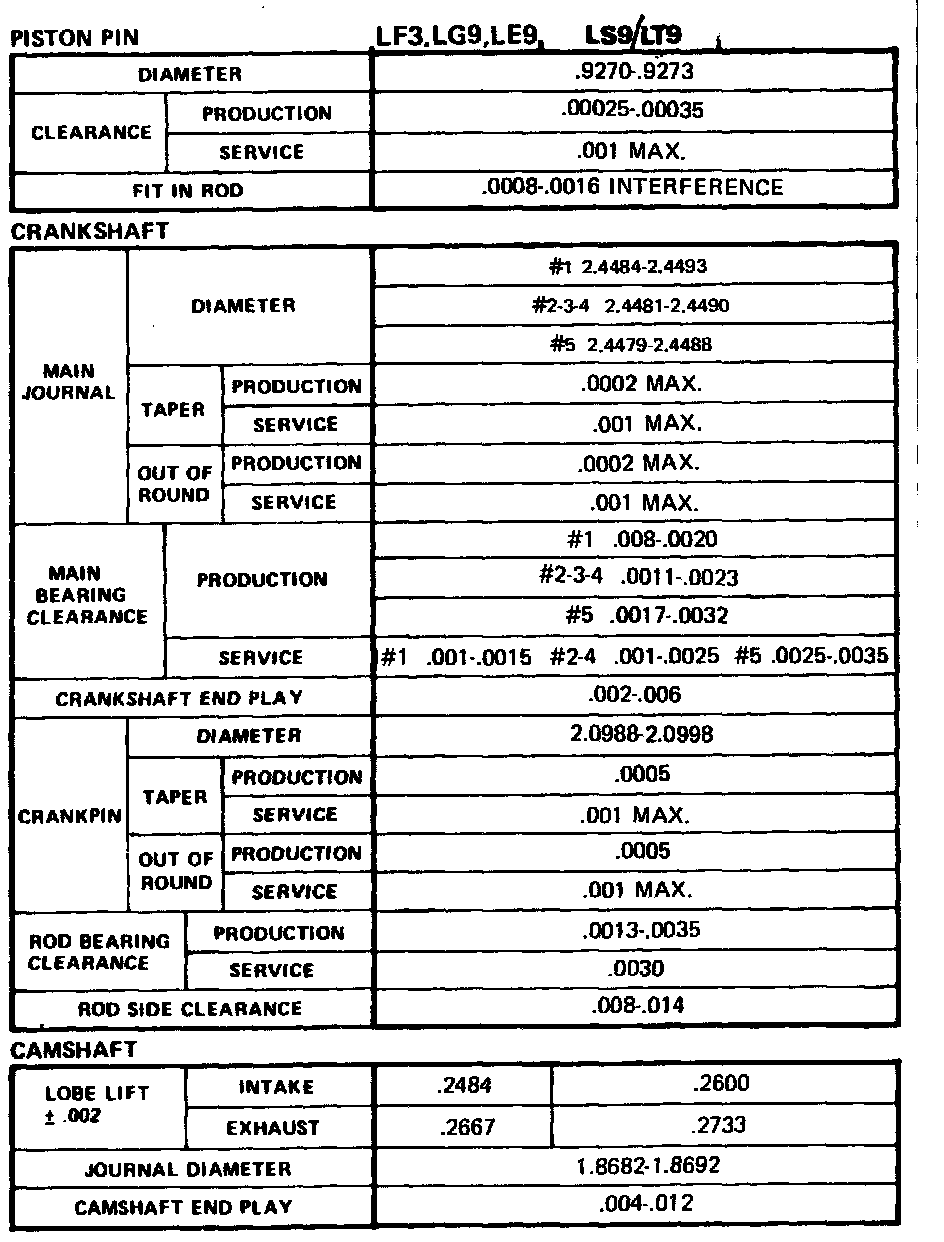

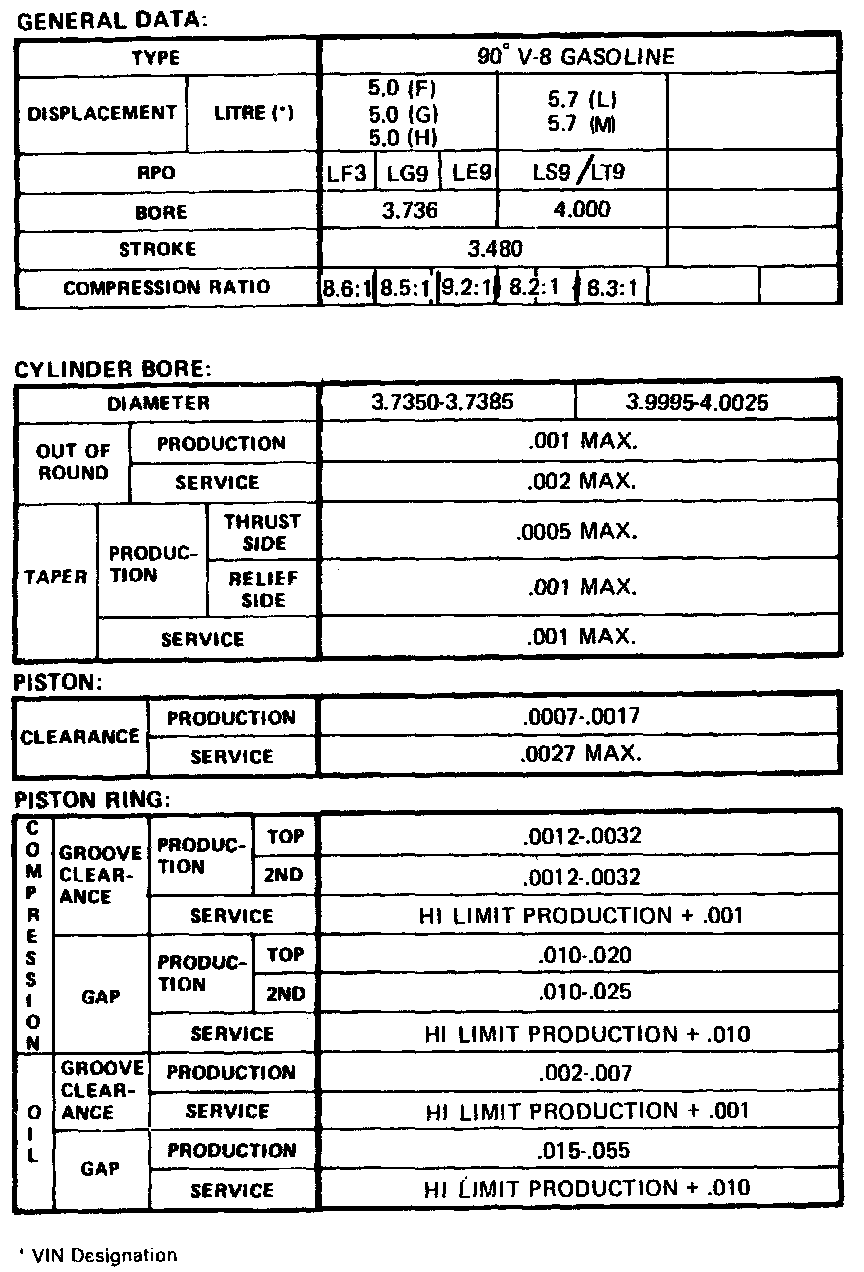

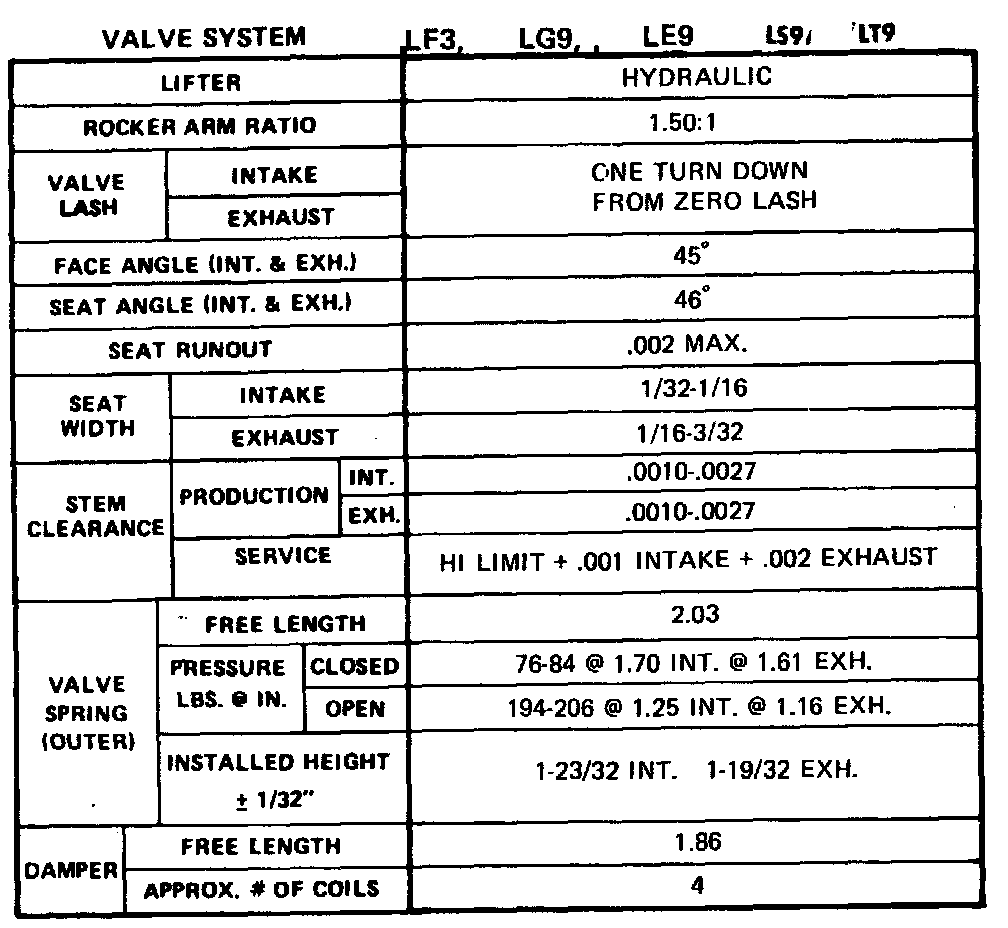

Engine Specifications:





Engine Specifications:





Engine Specifications:

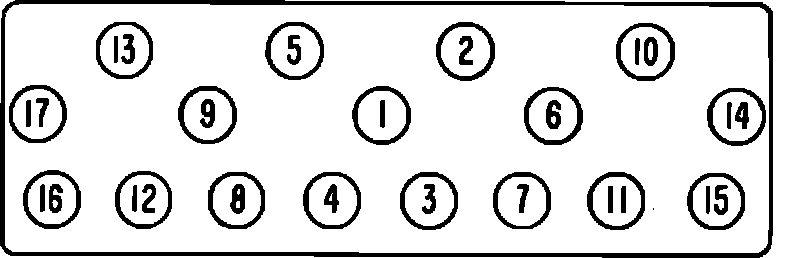

Cylinder Head Torque Sequence:
