Transmission Control Module C2 (HLS) 14 Way

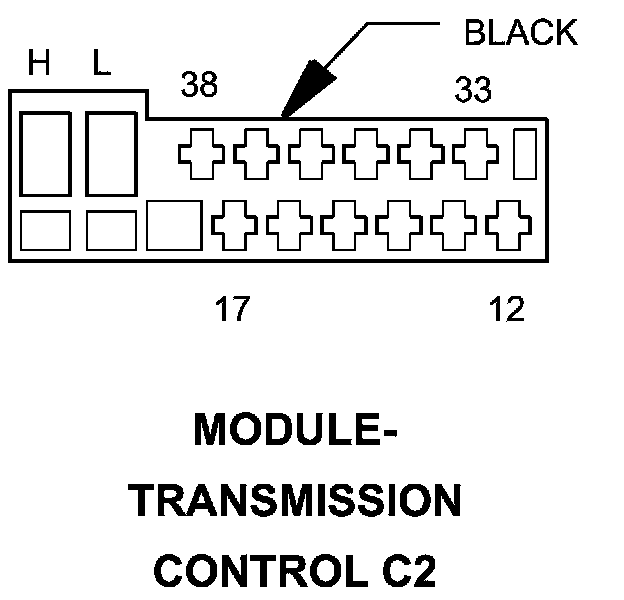

Connector C2 - (HLS) 14 WAY

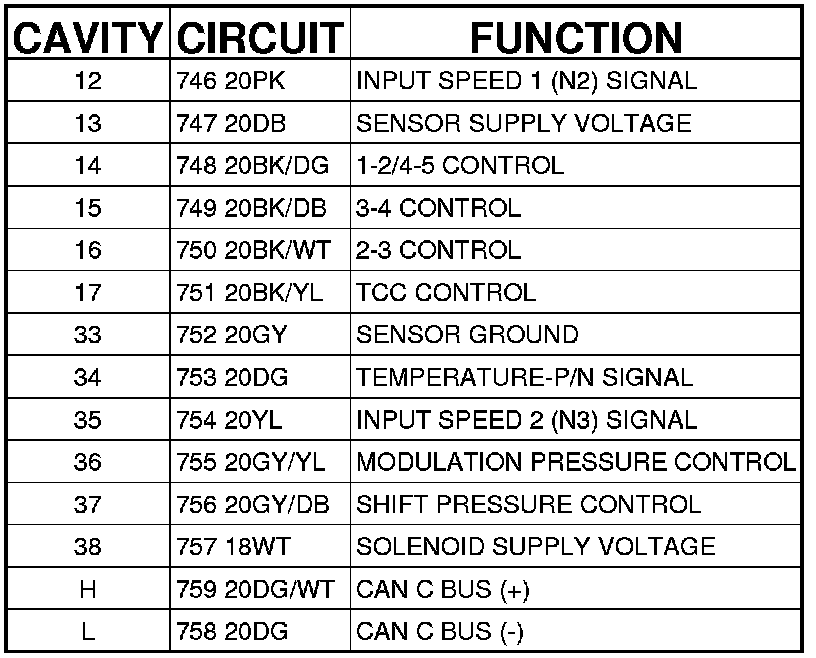

MODULE-TRANSMISSION CONTROL - (HLS) 14 WAY
