Accelerator Pedal Position Sensor: Diagrams

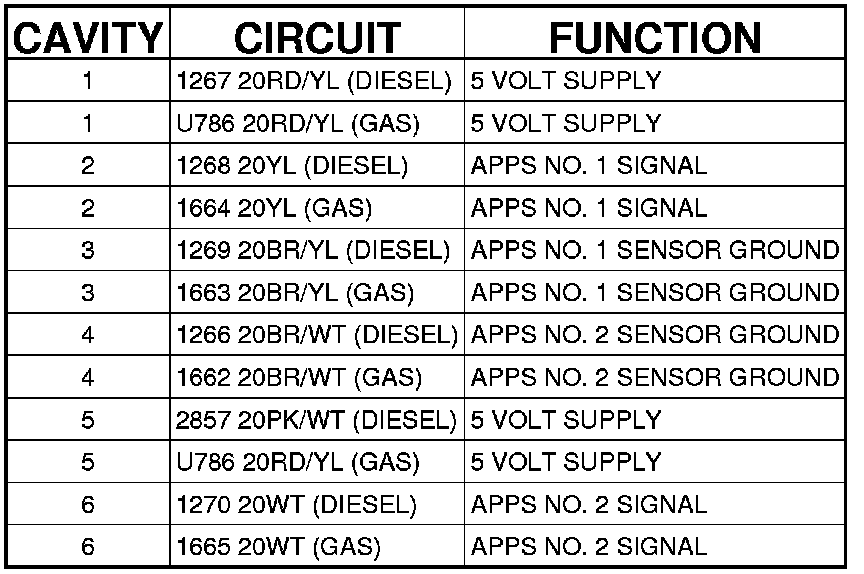

Connector - (HLS) 6 WAY




SENSOR-ACCELERATOR PEDAL POSITION - (HLS) 6 WAY
