Home >> Freightliner >> 2009 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Alignment Control Module

Headlamp Alignment Control Module

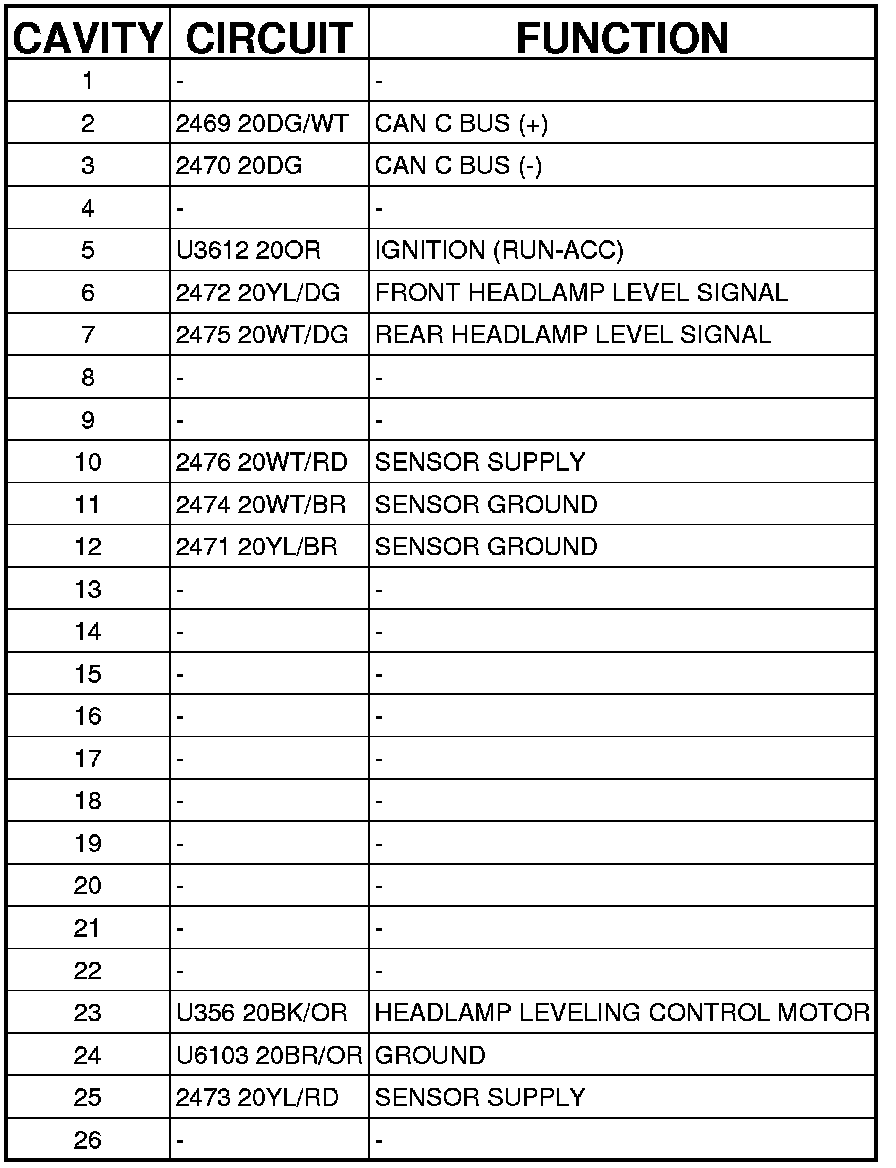

Connector - (HLS) 26 WAY

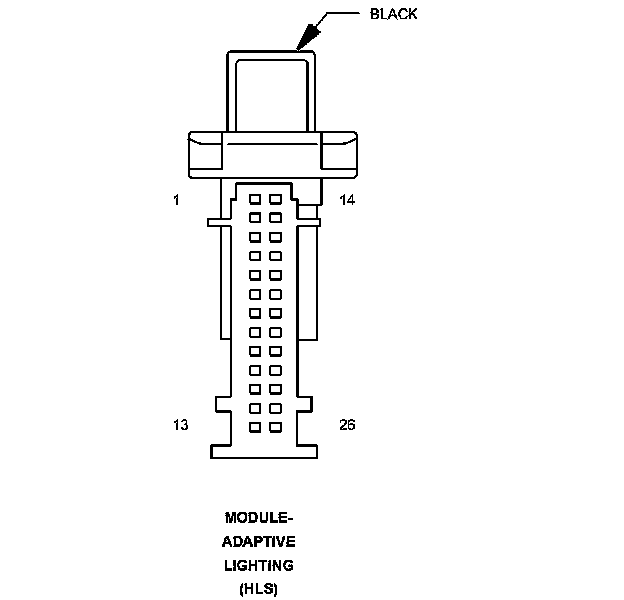

MODULE-ADAPTIVE LIGHTING - (HLS) 26 WAY
