Glow Plug Module C2 (OM642) 12 Way

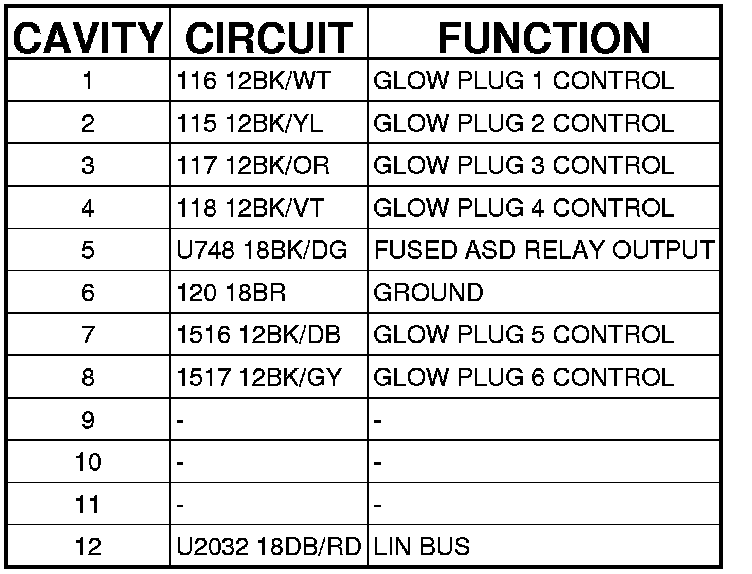

Connector C2 - (OM642) 12 WAY




MODULE-GLOW PLUG - (OM642) 12 WAY
