Freightliner
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

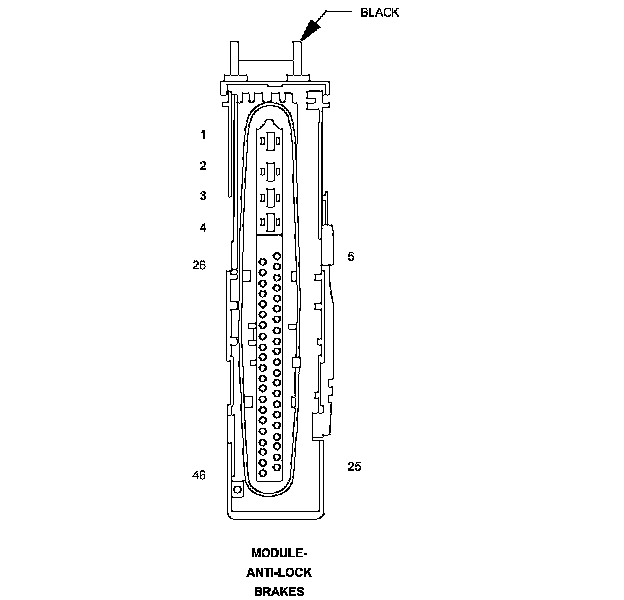

Connector - (HLS) 40 WAY

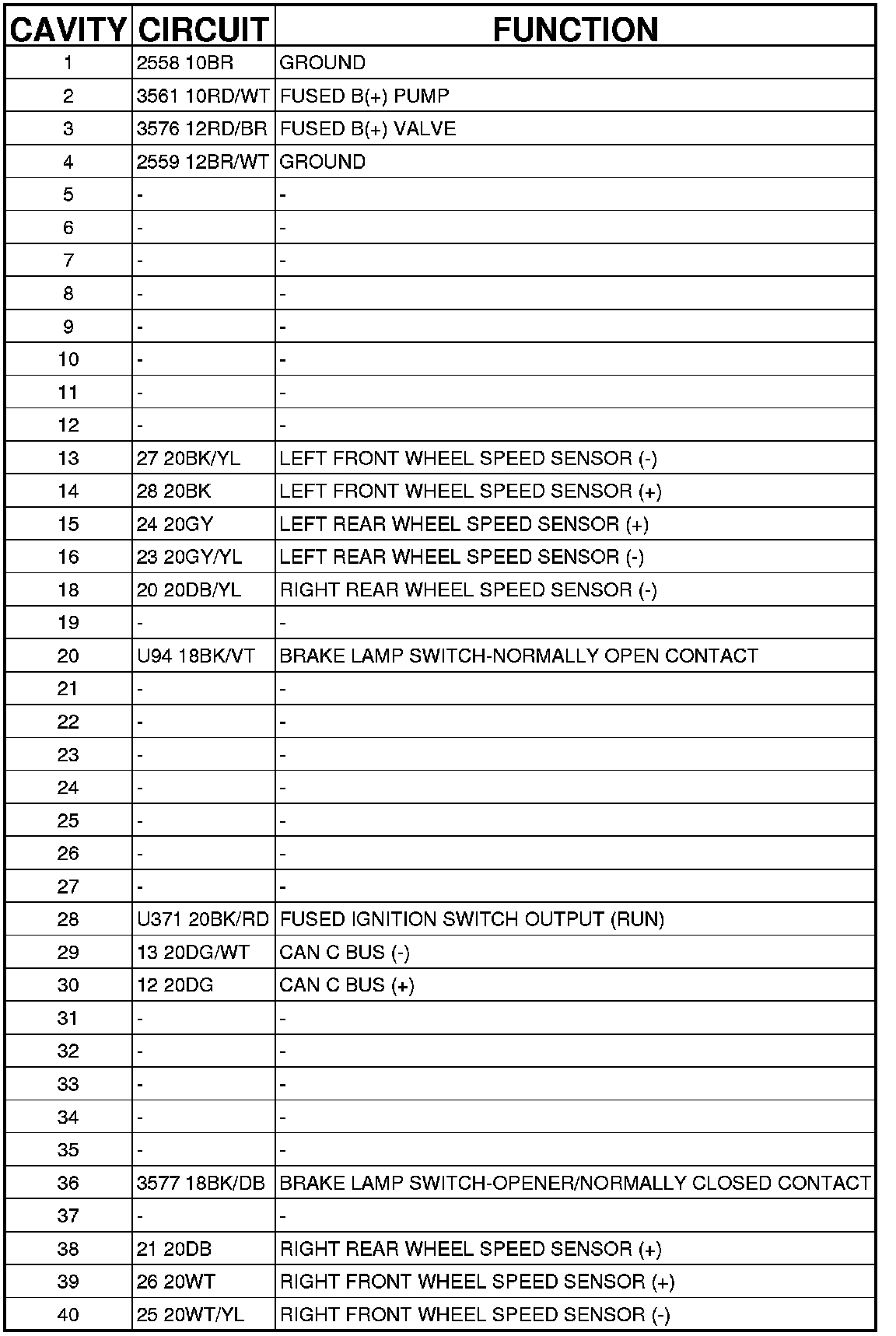

MODULE-ANTI-LOCK BRAKES - (HLS) 40 WAY
