Body Control Module C3 (CLS) 20 Way
Body Control Module C3 (CLS) 20 Way

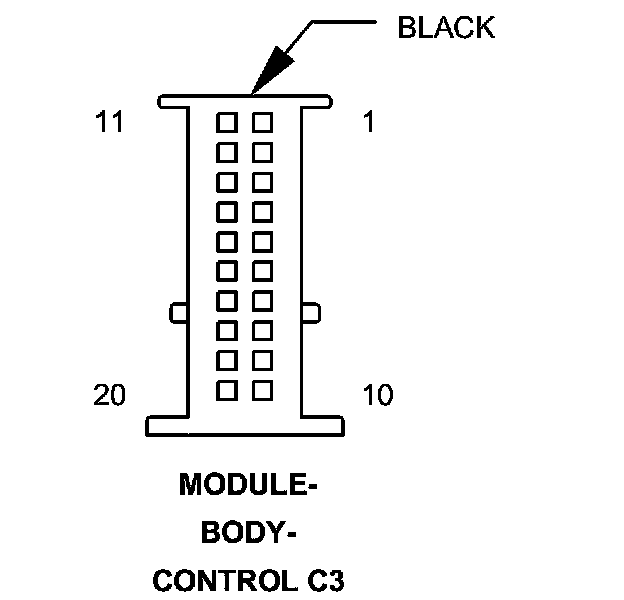

Connector C3 - (CLS) 20 WAY

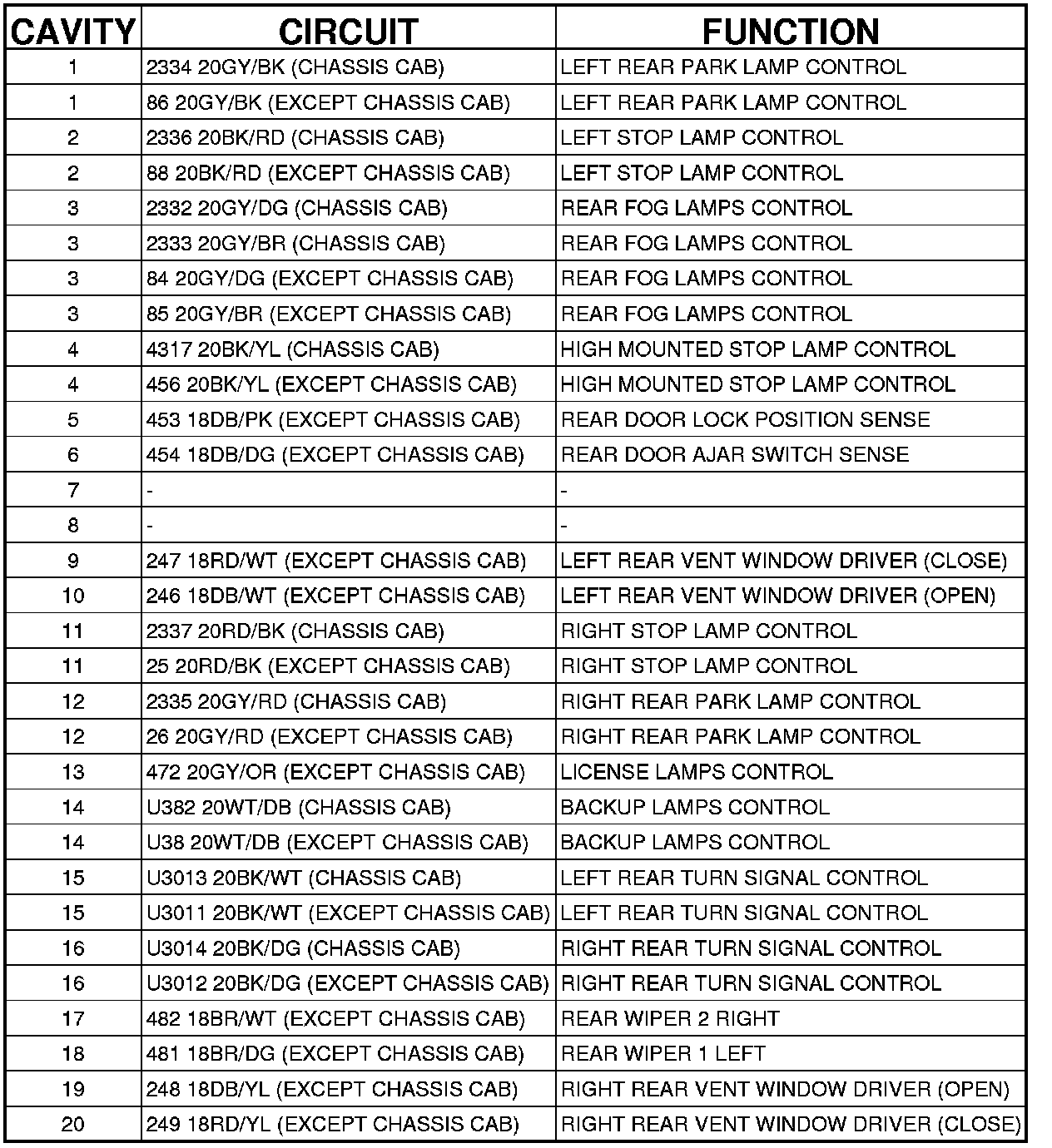

MODULE-BODY CONTROL - (CLS) 20 WAY
