Freightliner
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (FRB) 15 Way
Body Control Module (FRB) 15 Way

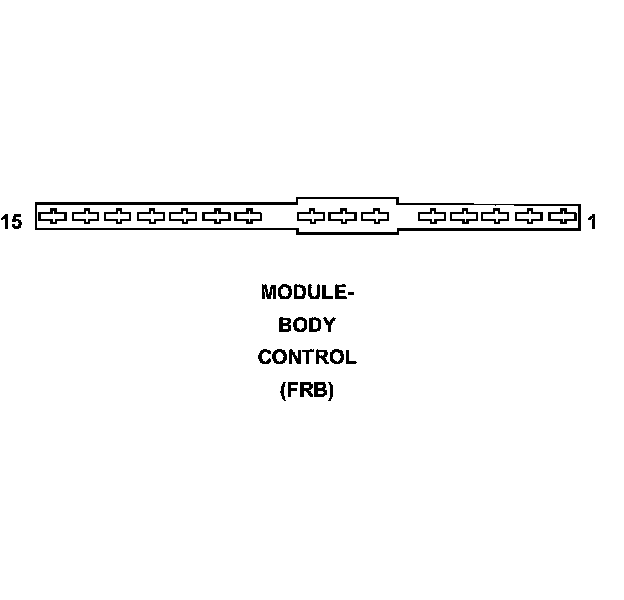

Connector - (FRB) 15 WAY

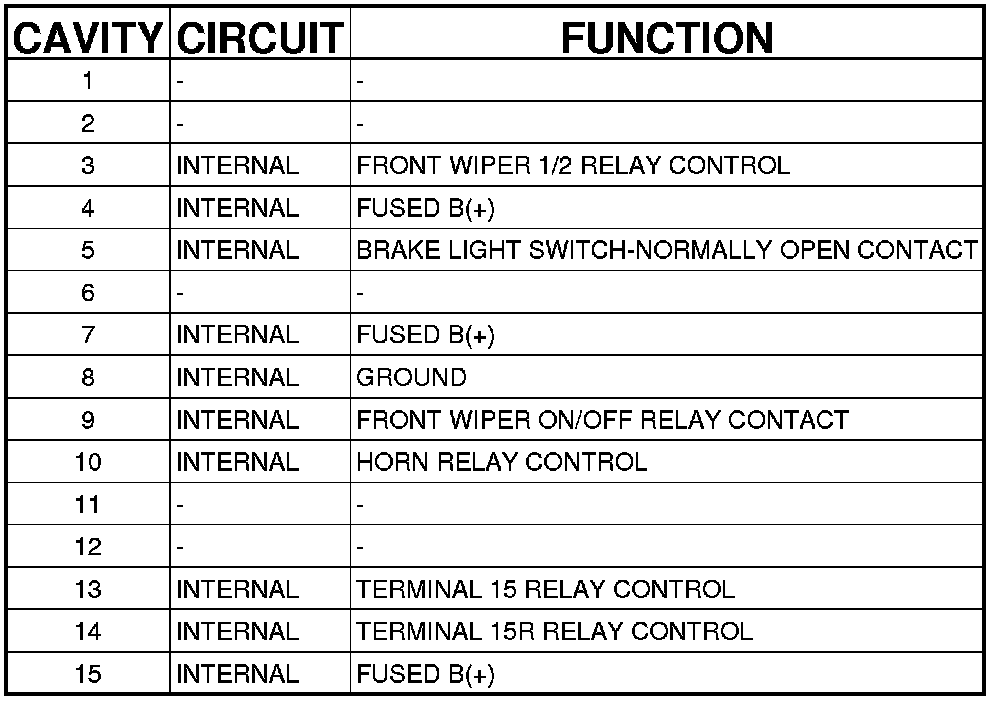

MODULE-BODY CONTROL - (FRB) 15 WAY
