Home >> Freightliner >> 2009 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Occupant Restraint Controller Module (HLS) 36 Way >> Module-Occupant Restraint Controller C1-B

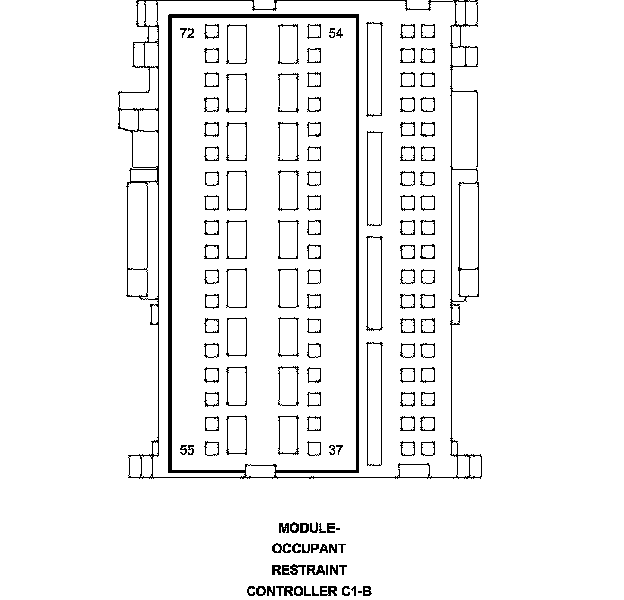

Module-Occupant Restraint Controller C1-B






Connector - (HLS) 36 WAY

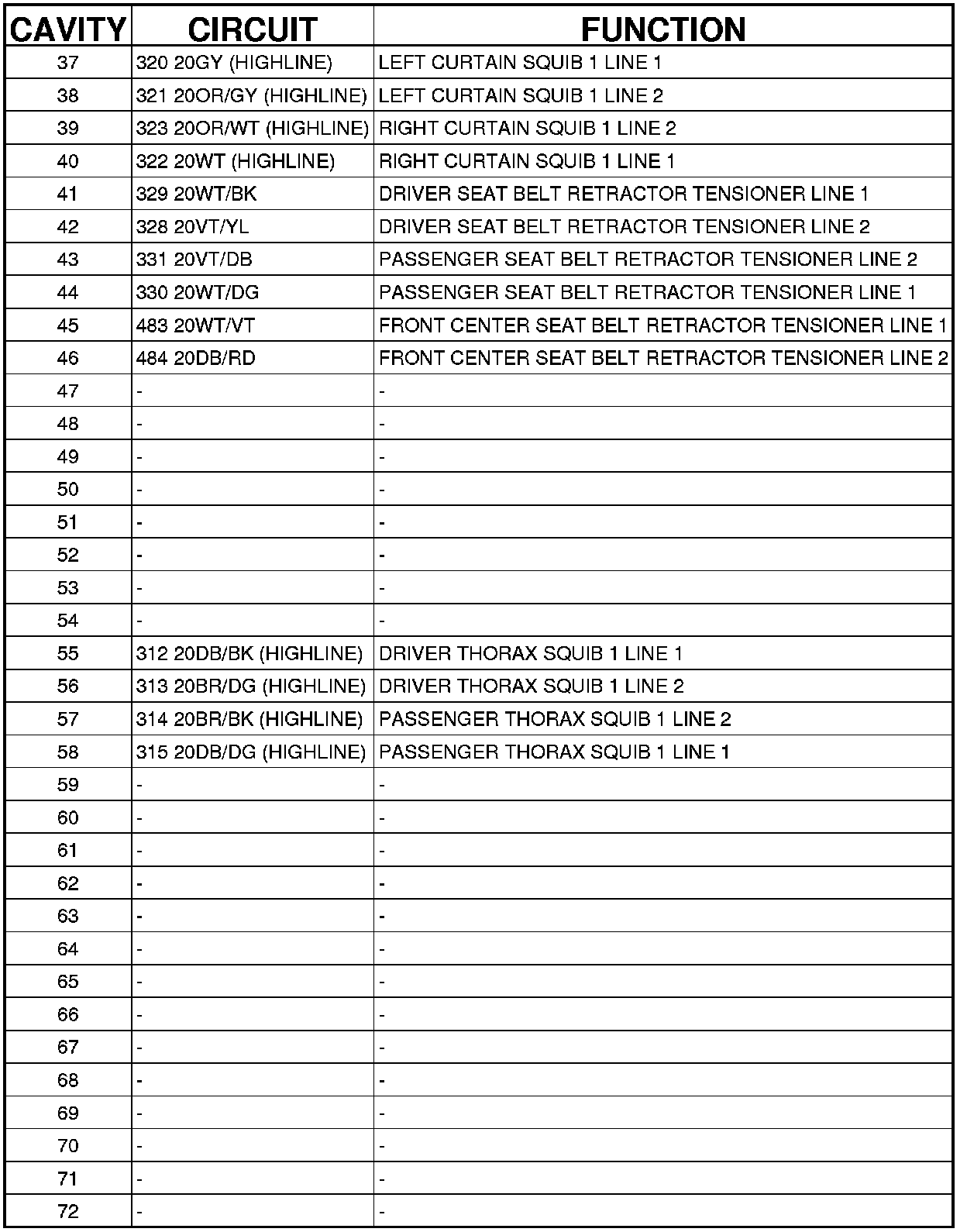

MODULE-OCCUPANT RESTRAINT CONTROLLER - (HLS) 36 WAY
