Installation

INSTALLATION

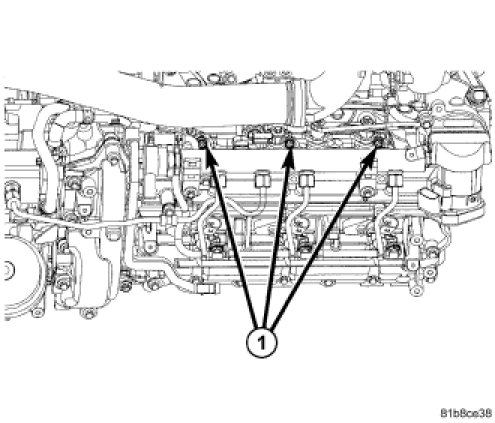

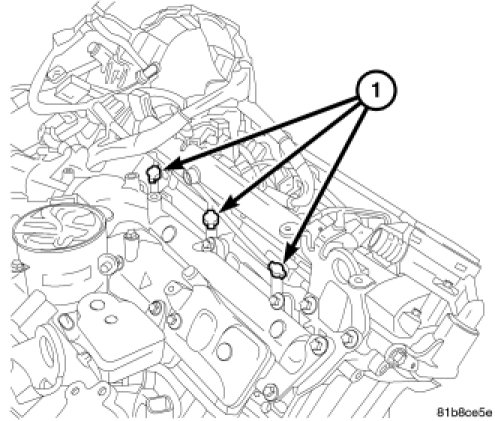

1. Install glow plug(s) (1) into cylinder head and tighten to 11 Nm (97 in.-lbs.).




2. Connect the glow plug wiring harness connector(s) (1).
3. Install the engine cover.
4. Connect negative battery cable.
