Fuel Pump Module

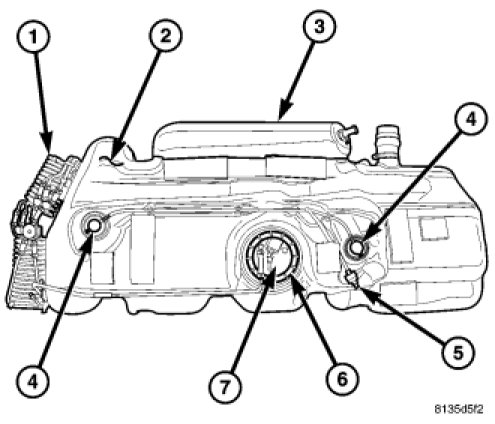

The fuel pump module is installed in the top of the fuel tank.

The pump module contains Fuel gauge sending unit (fuel level sensor).
