Installation

INSTALLATION

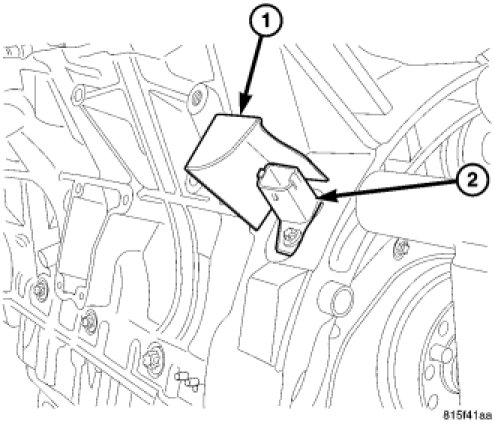

1. Clean the crankshaft sensor bore and install the sensor (2). Tighten the bolt to 9 Nm (80 in. lbs.).
2. Connect the engine harness connector.
3. Install the heat shield (1).
4. Lower the vehicle.
5. Connect the negative battery cable.
