Home >> Freightliner >> 2006 >> Sprinter 2500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 21

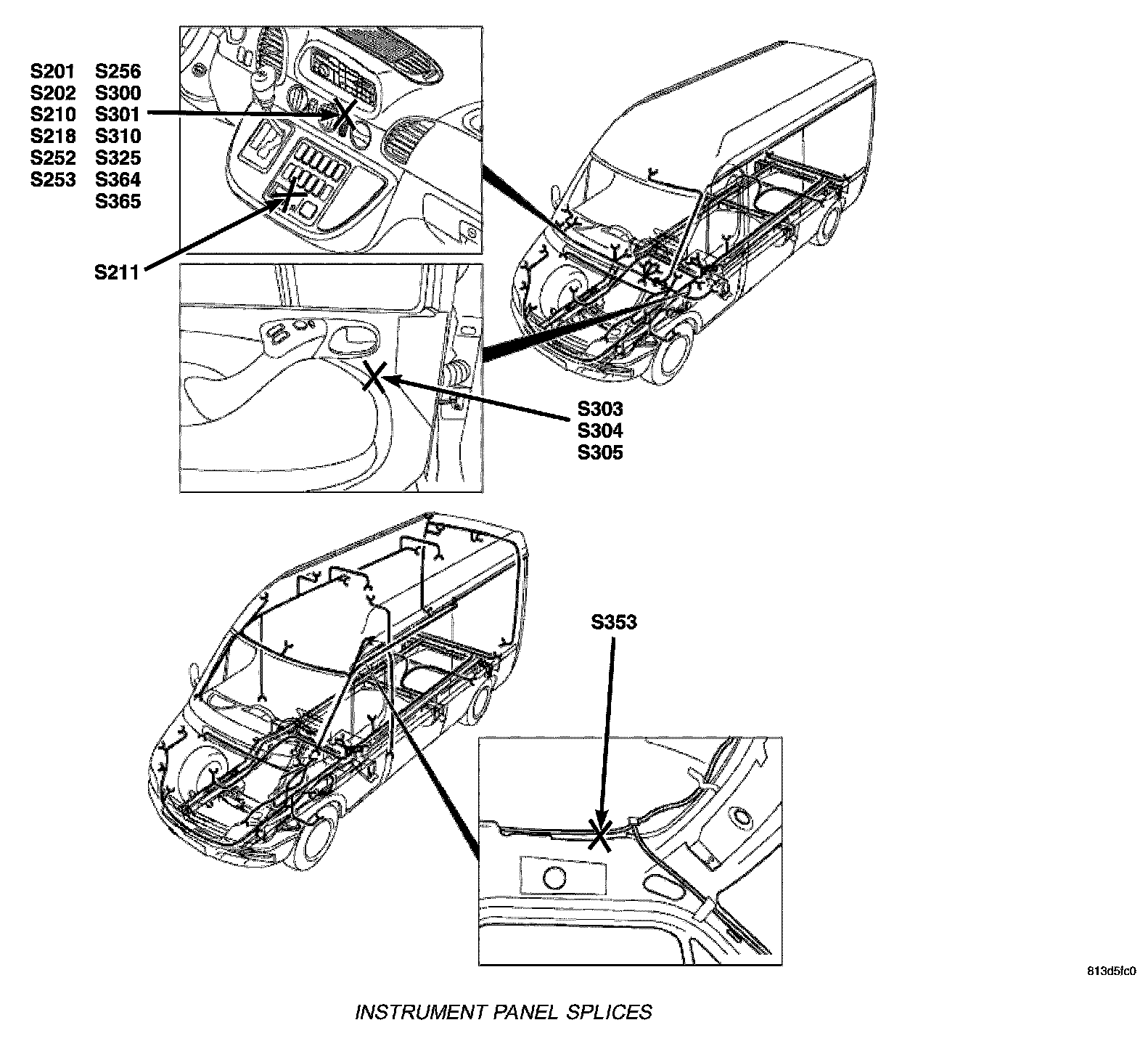

Figure 21

Instrument Panel Splices:
