Freightliner
>>
2006
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
>>
Keyless Entry Module
Keyless Entry Module

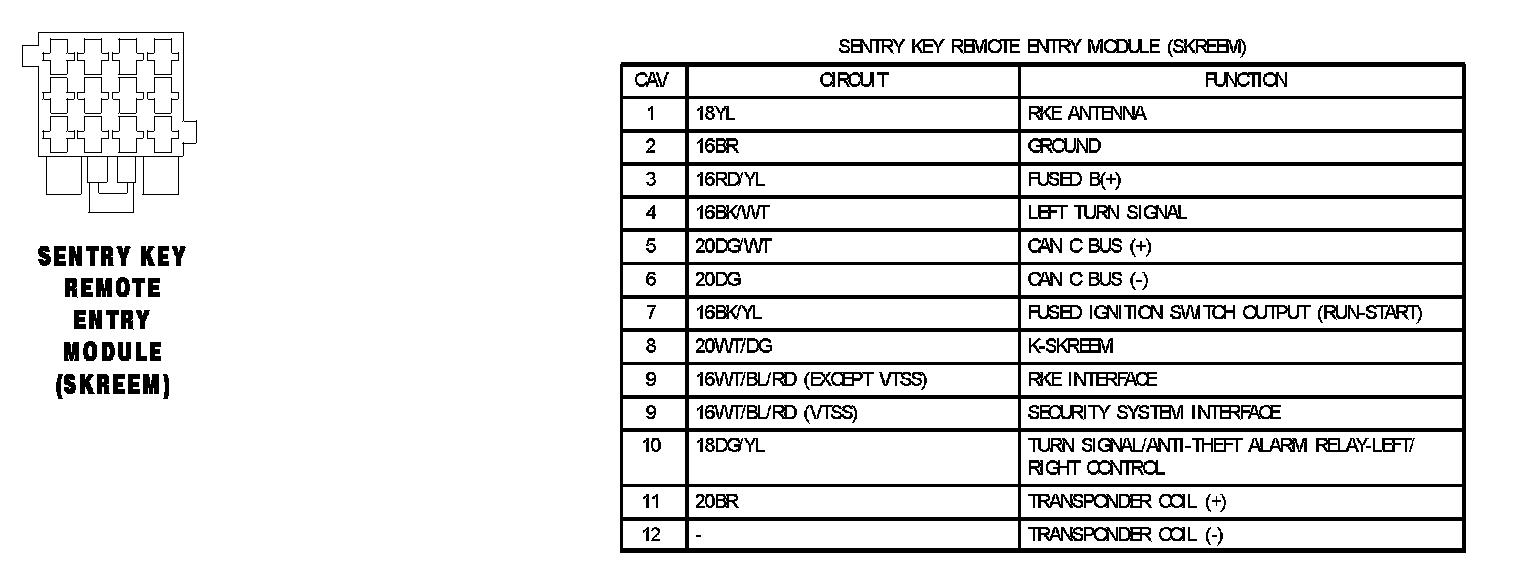

Sentry Key Remote Entry Module (SKREEM):
