Control Module HVAC
Control Module HVAC

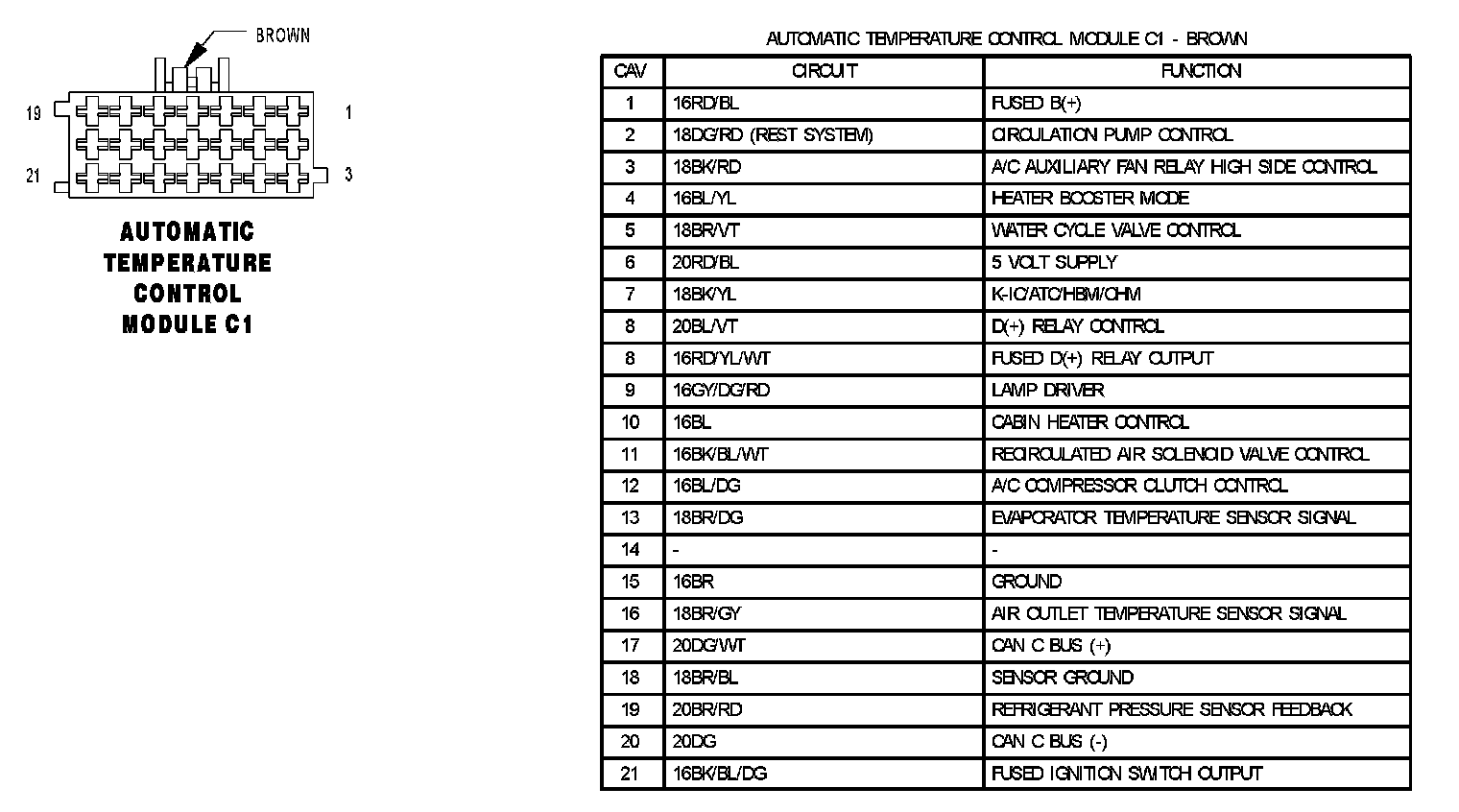

Automatic Temperature Control Module C1:

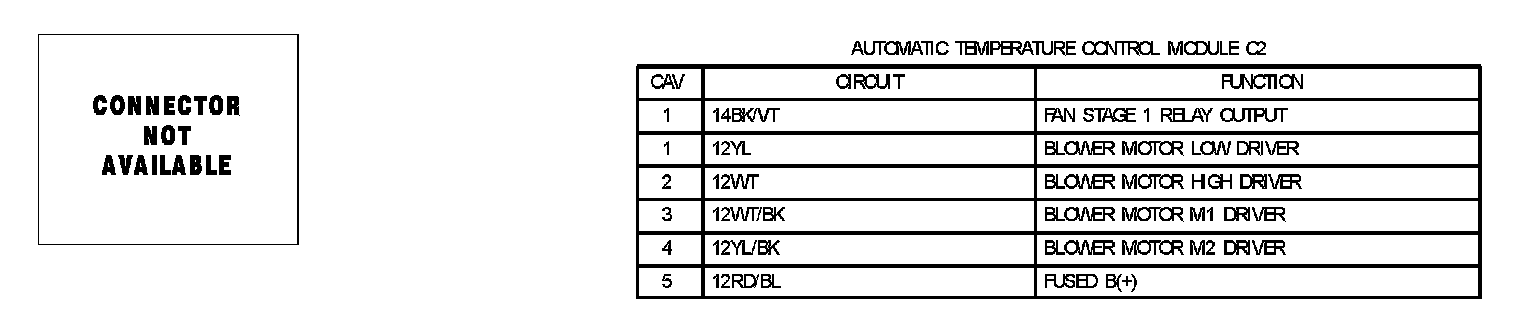

Automatic Temperature Control Module C2:

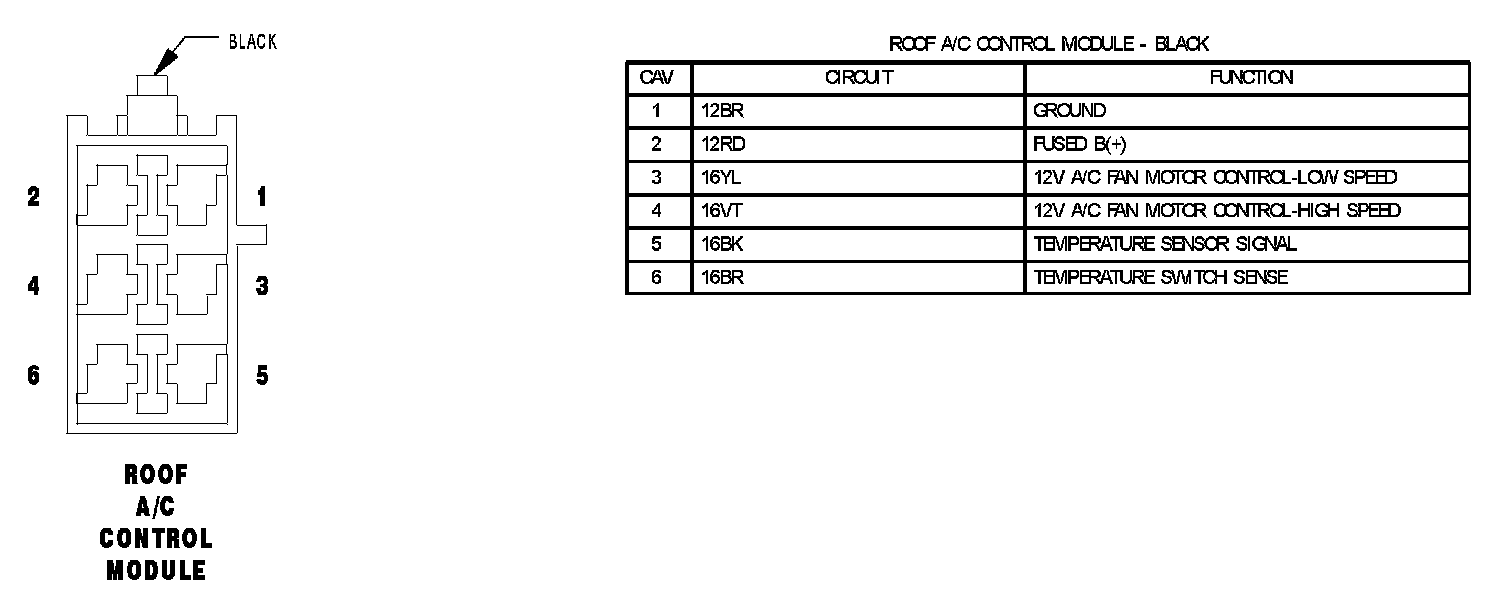

Roof A/C Control Module:

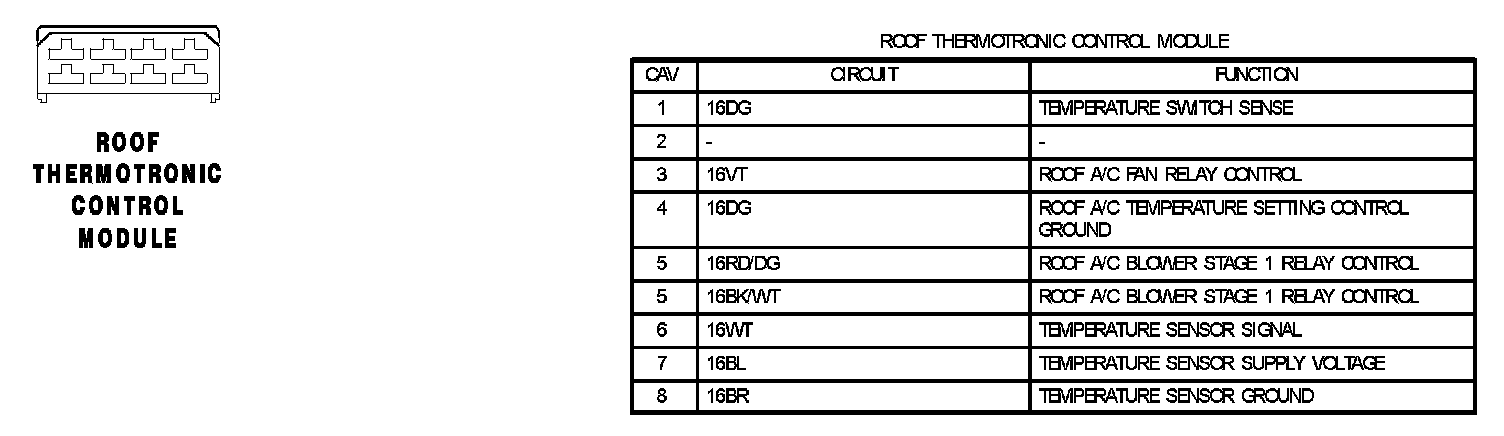

Roof Thermotronic Control Module:
