Connector Views
>>
Switch, Differential Lock
Switch, Differential Lock

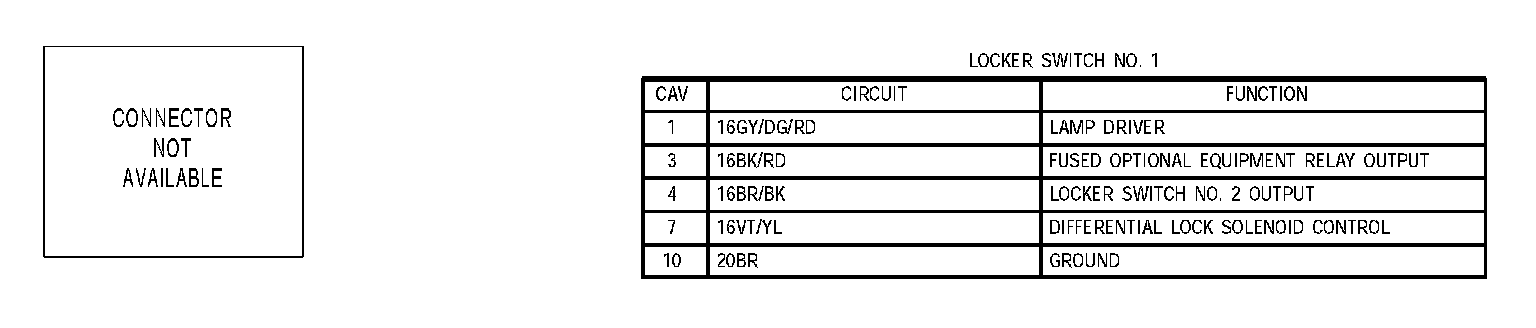

Locker Switch No.1:

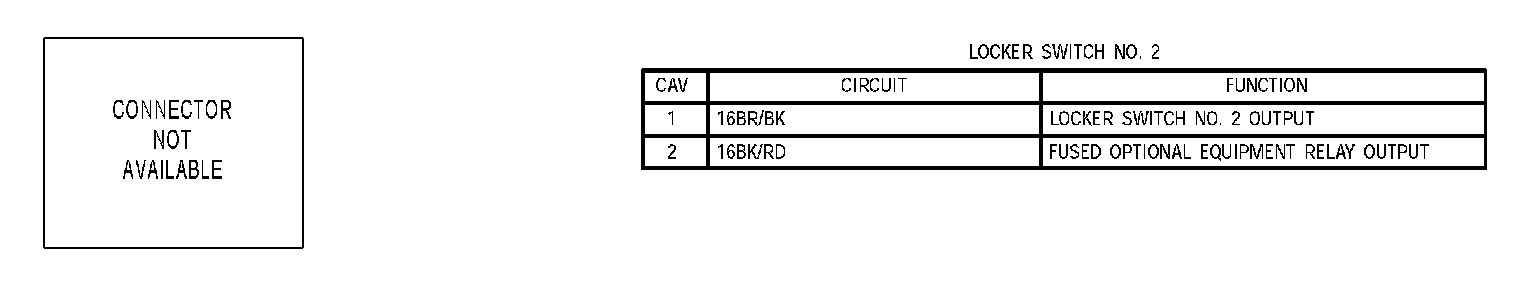

Locker Switch No.2:
