Freightliner
>>
2004
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Glow Plug Control Module
Glow Plug Control Module

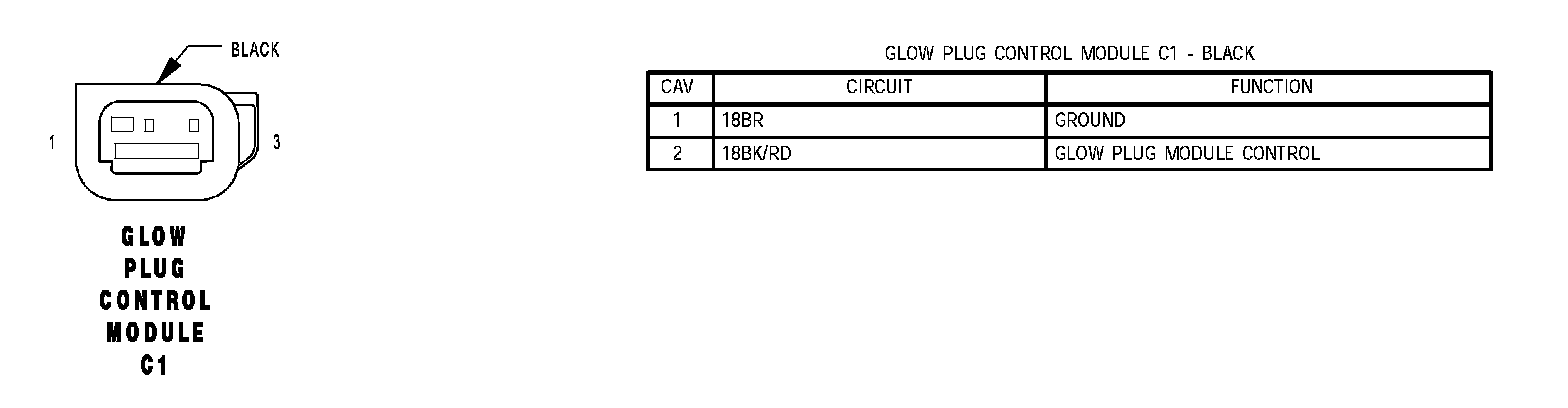

Glow Plug Control Module C1:

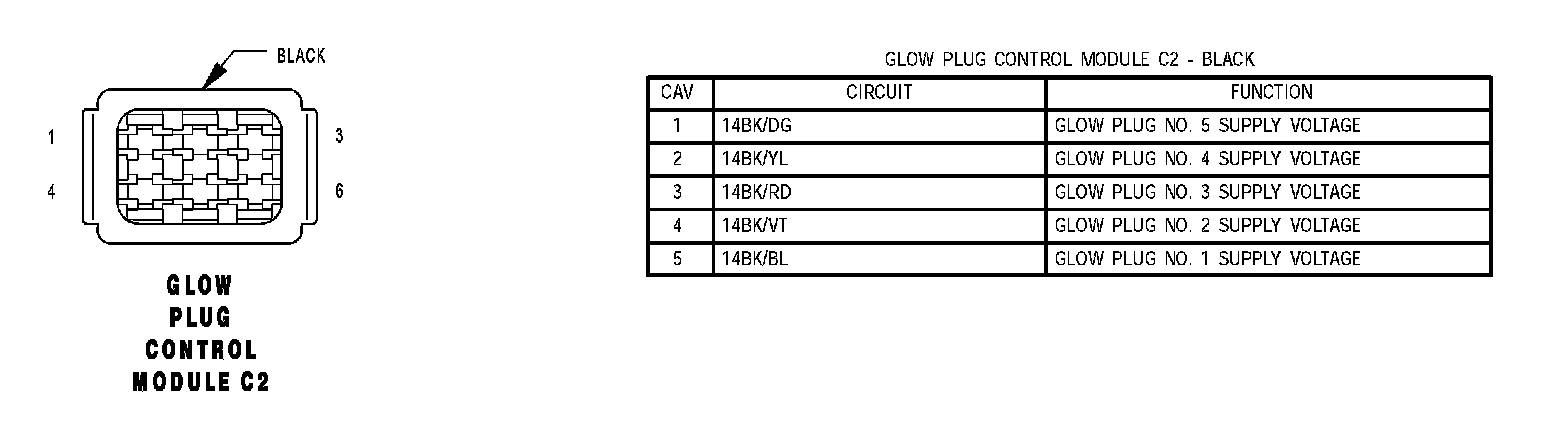

Glow Plug Control Module C2:
