Freightliner
>>
2004
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

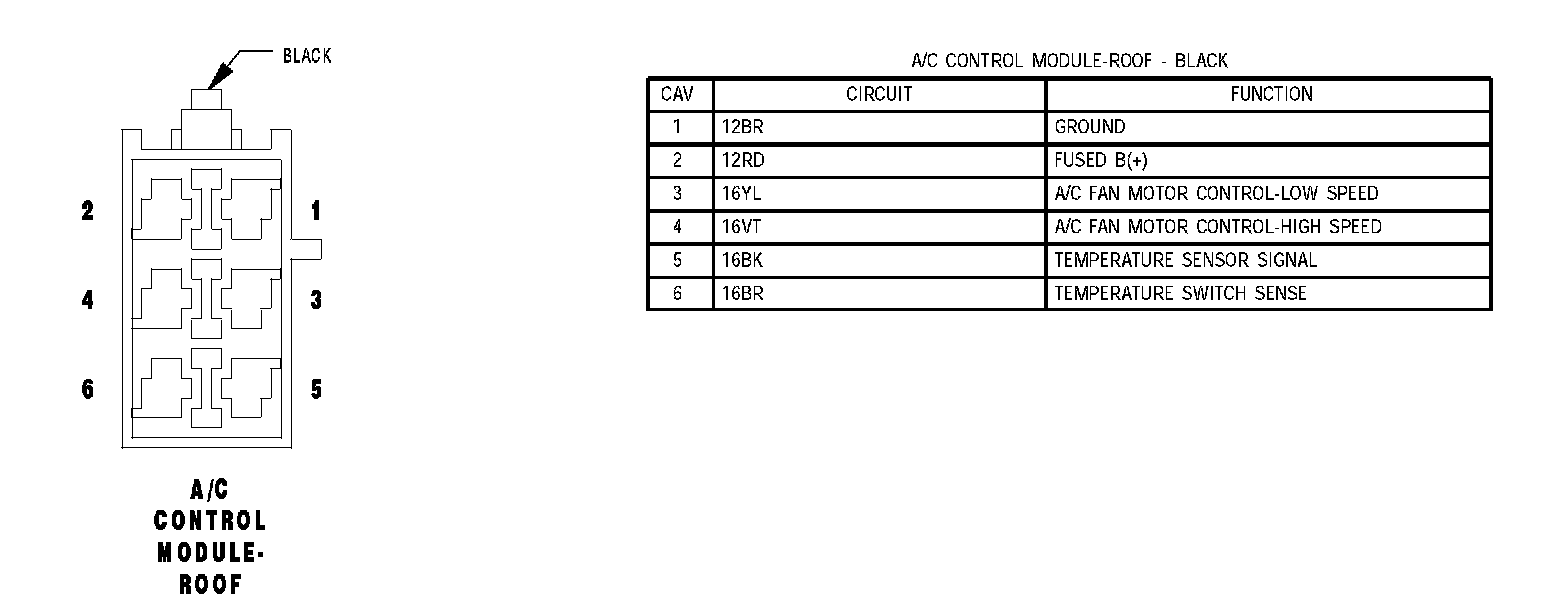

A/C Control Module-Roof:

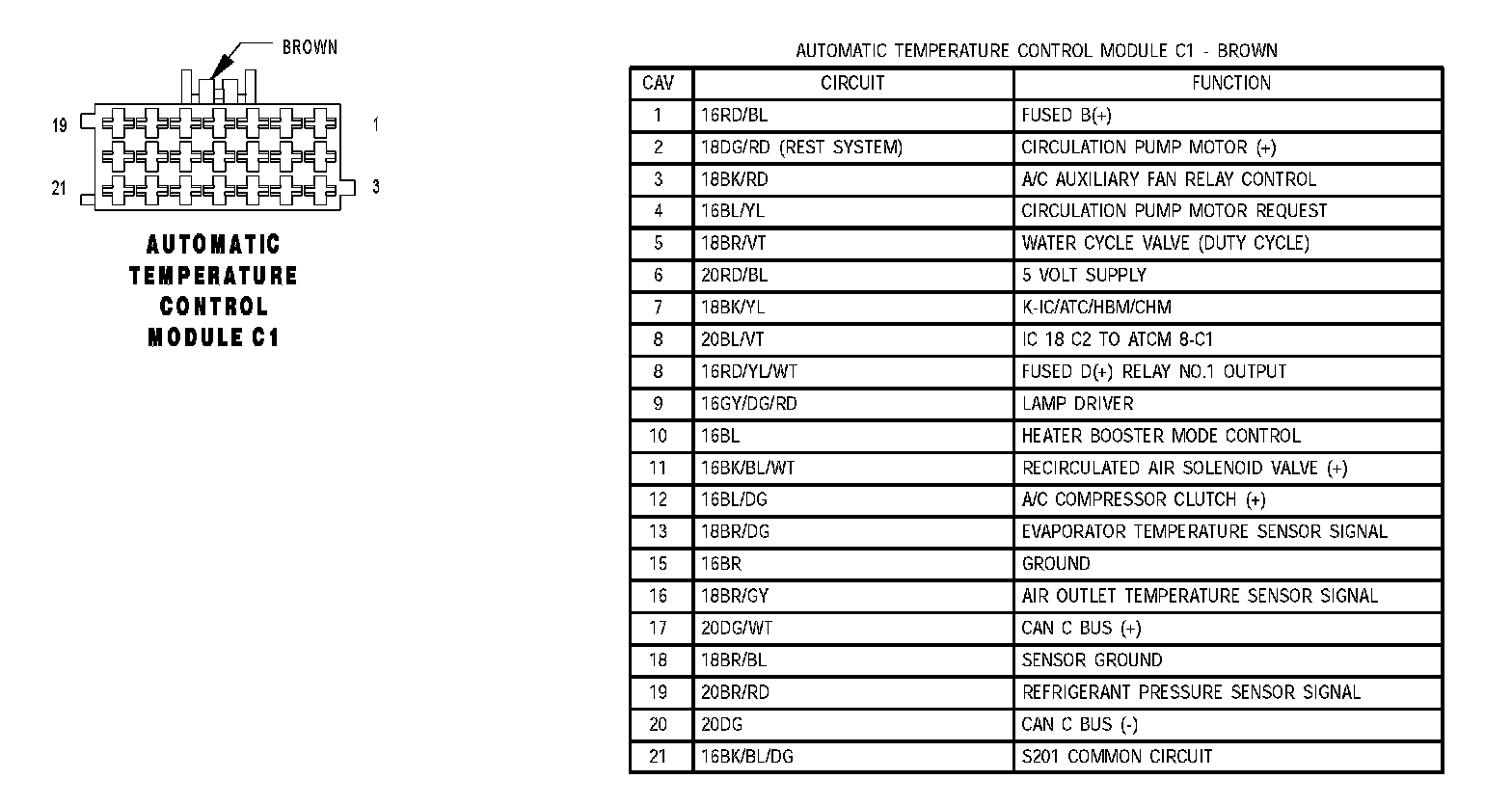

Automatic Temperature Control Module C1:

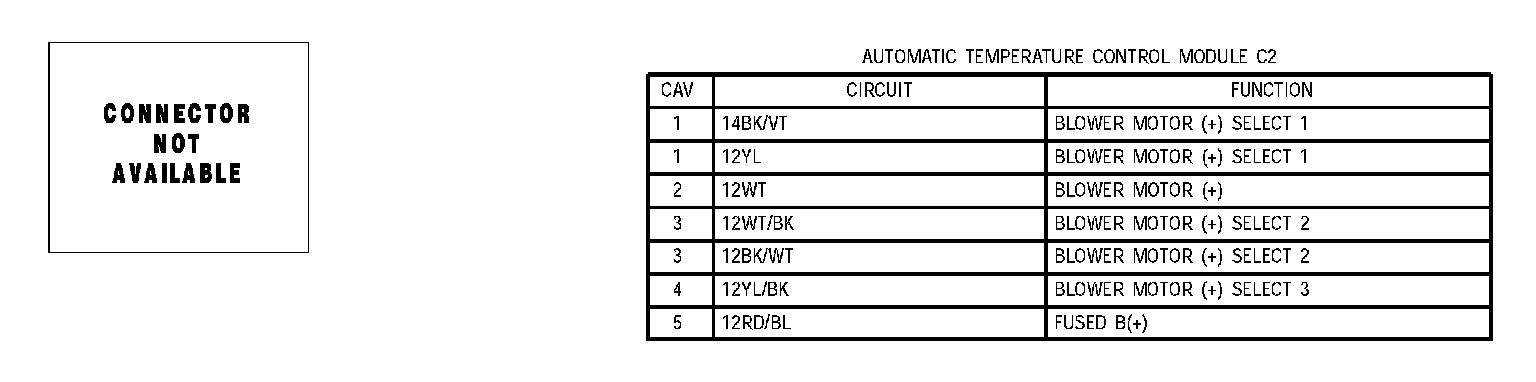

Automatic Temperature Control Module C2:
