Freightliner
>>
2004
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

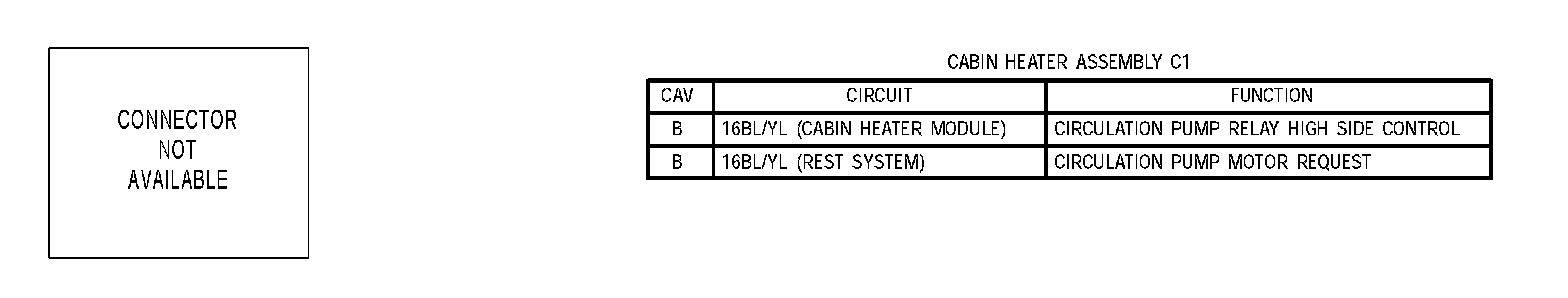

Cabin Heater Assembly C1:

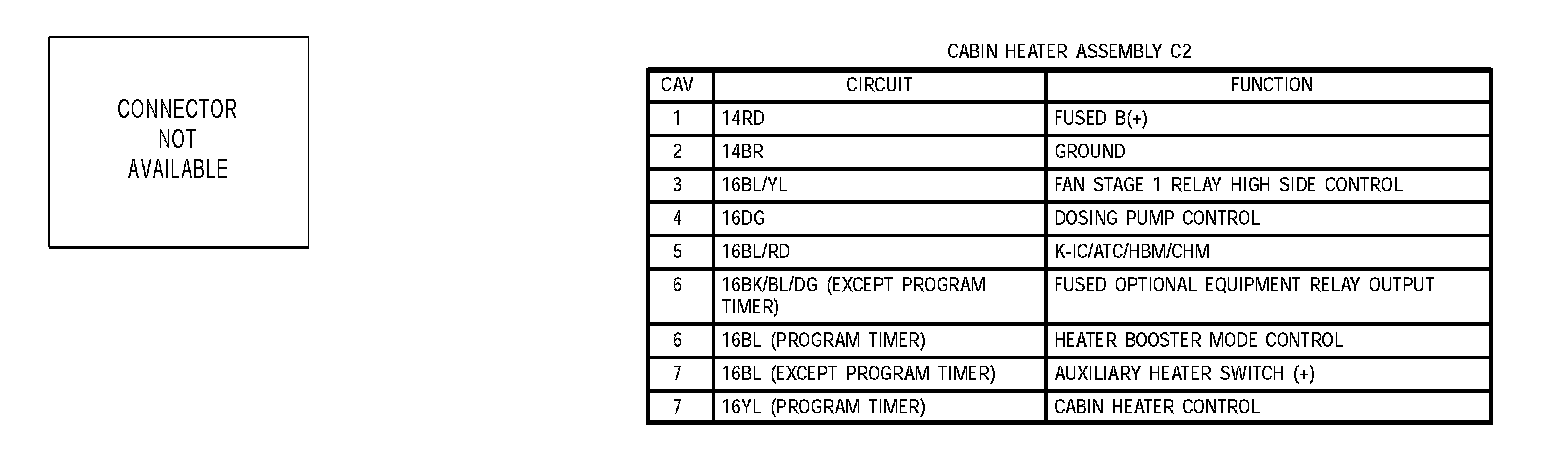

Cabin Heater Assembly C2:
