Home >> Freightliner >> 2004 >> Sprinter 2500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

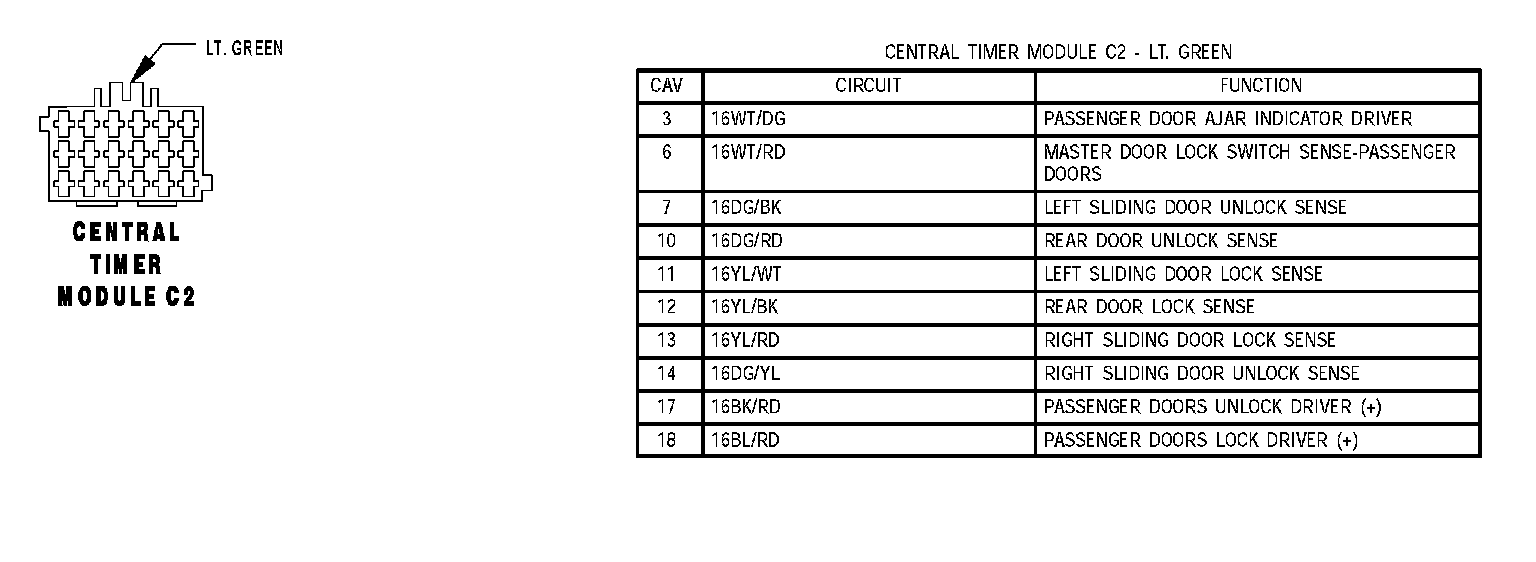

Central Timer Module C2:

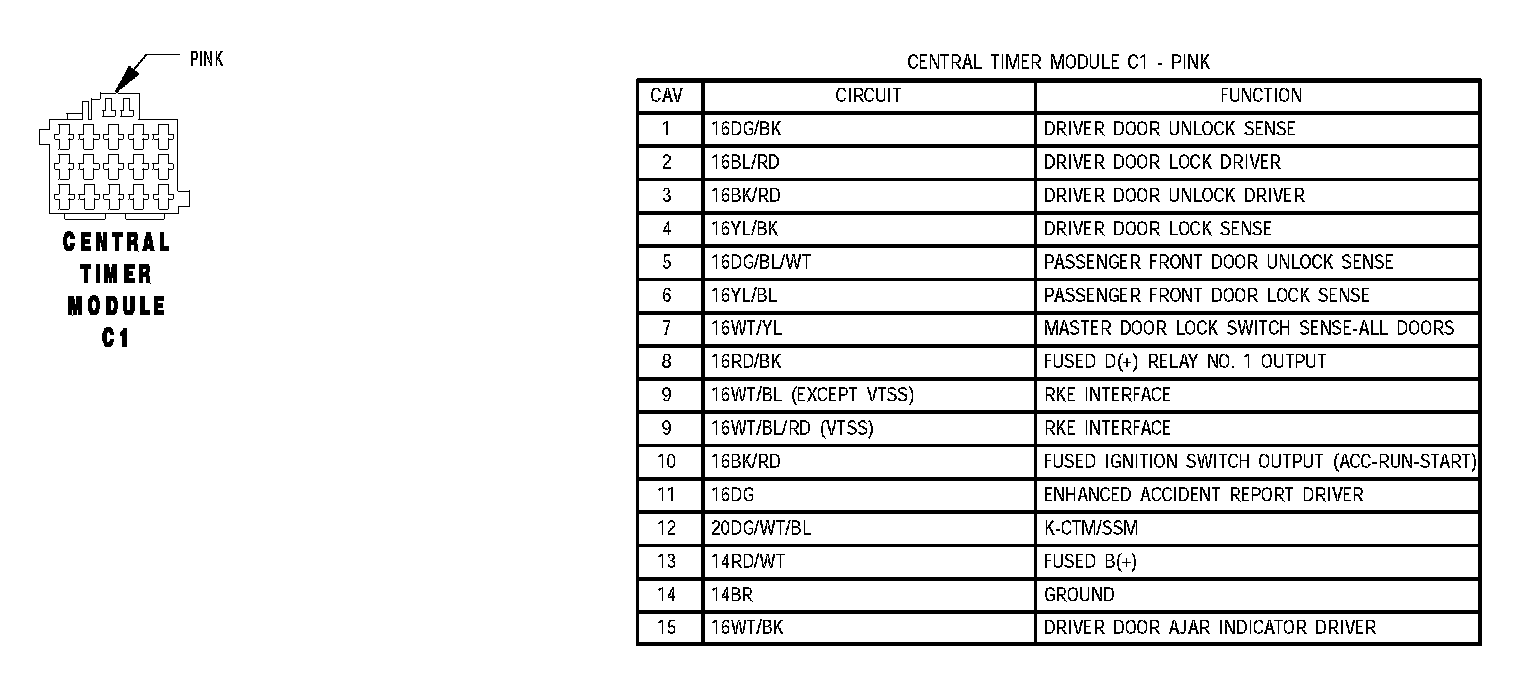

Central Timer Module C1:
