Antitheft and Alarm Systems
>>
Ultrasonic Sensor, Antitheft
Ultrasonic Sensor, Antitheft

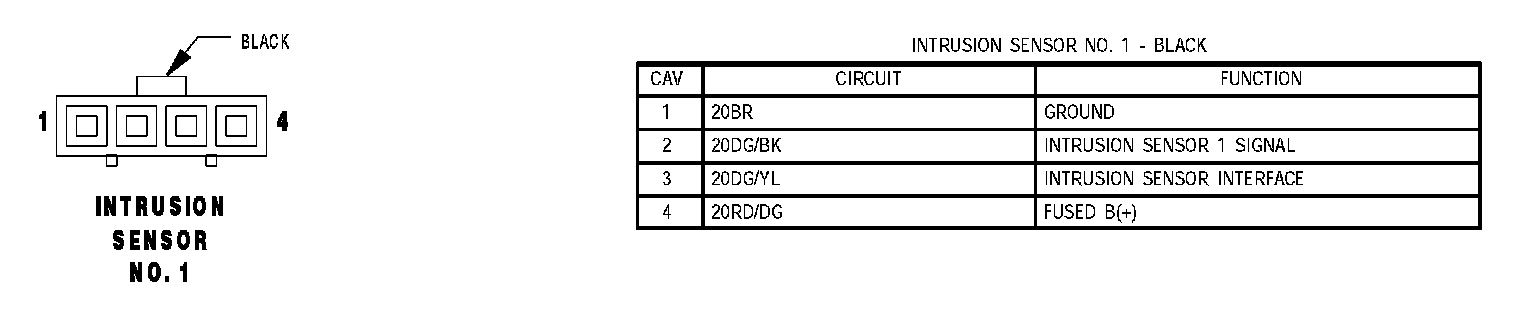

Intrusion Sensor No.1:

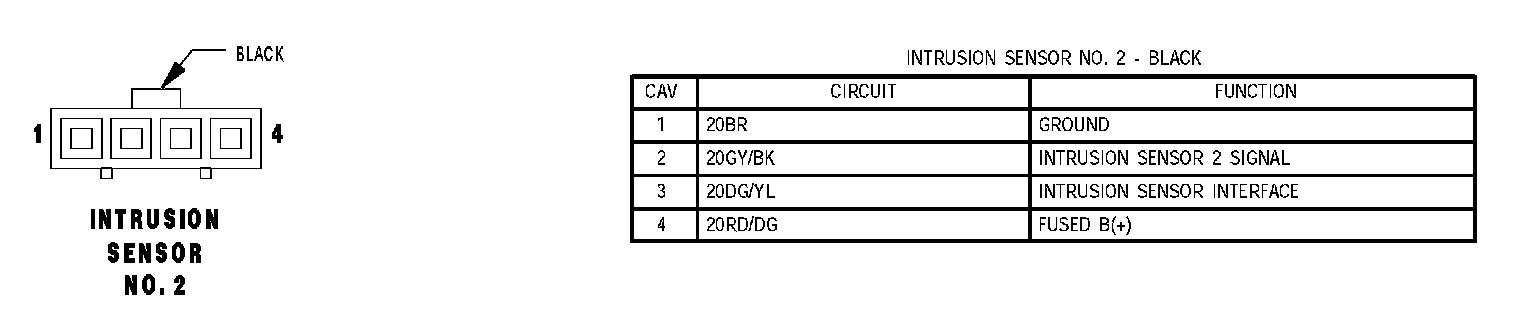

Intrusion Sensor No.2:

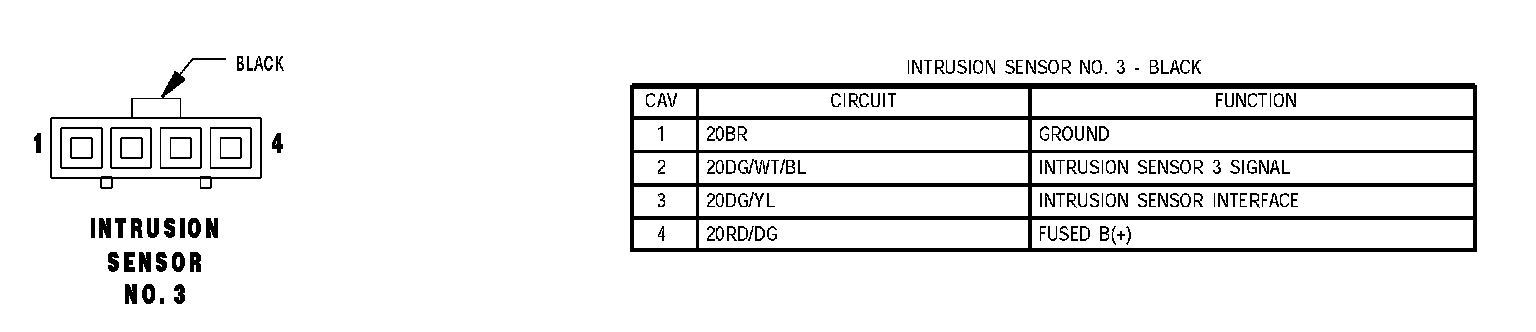

Intrusion Sensor No.3:

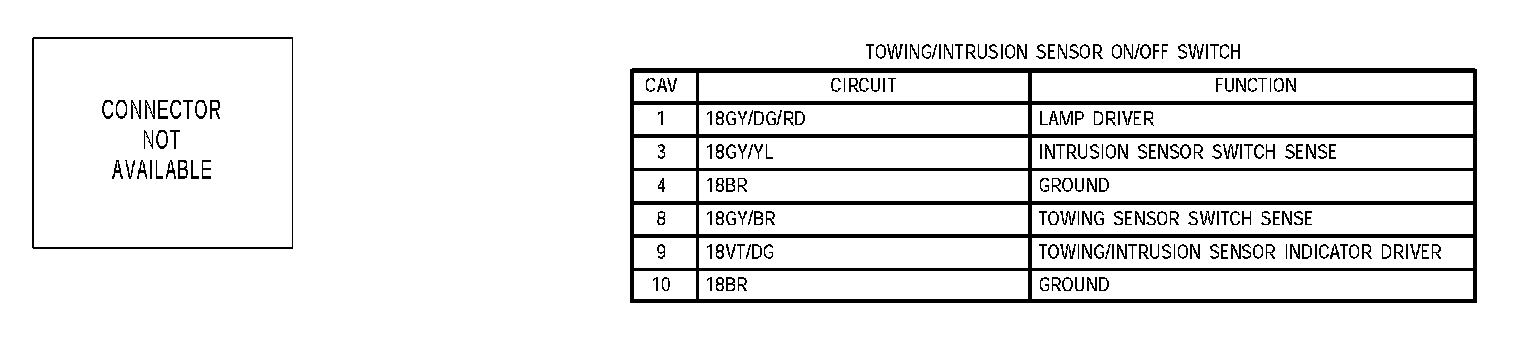

Towing/Intrusion Sensor On/Off Switch:
