Ultrasonic Sensor, Antitheft
Ultrasonic Sensor, Antitheft

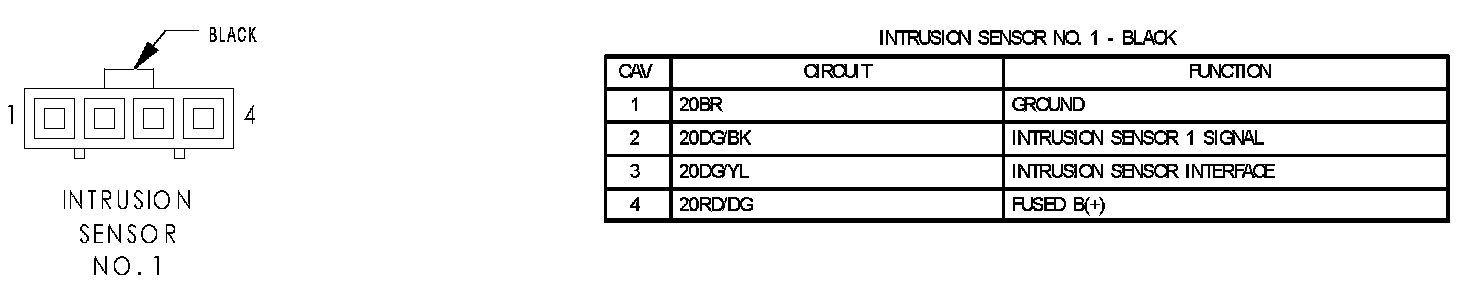

Intrusion Sensor No.1:

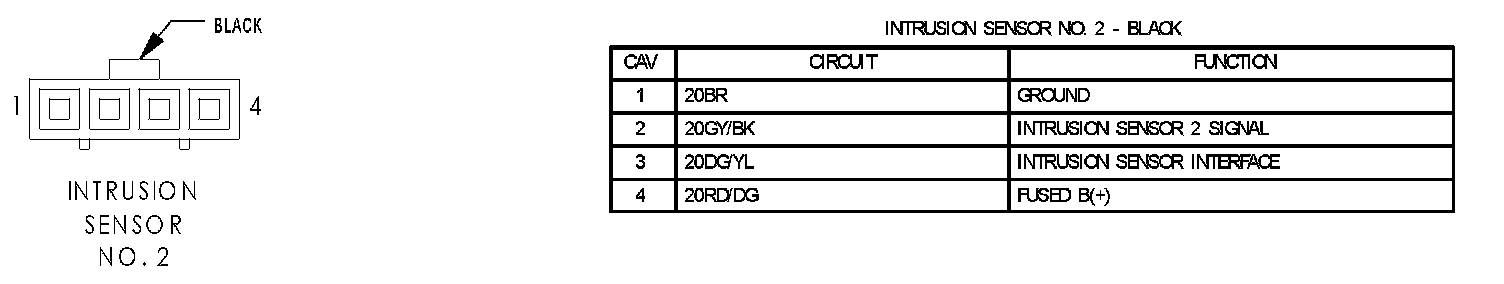

Intrusion Sensor No.2:

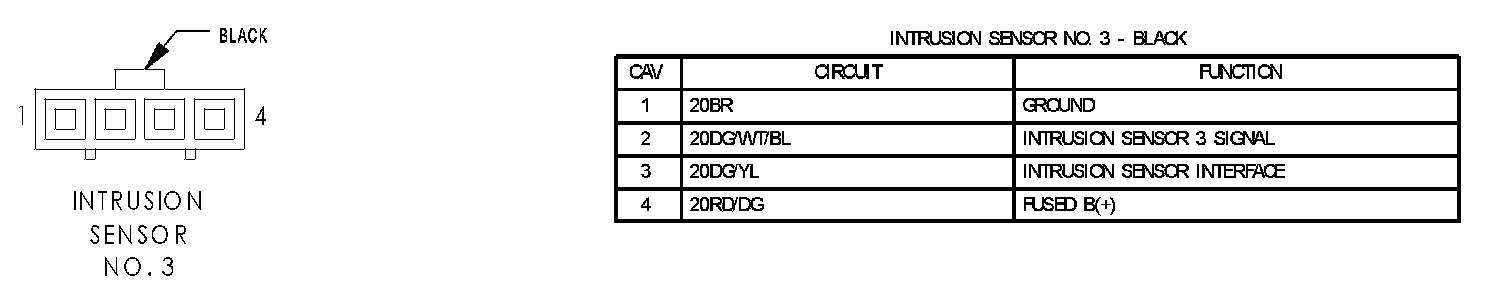

Intrusion Sensor No.3:
