Home >> Freightliner >> 2003 >> Sprinter 2500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

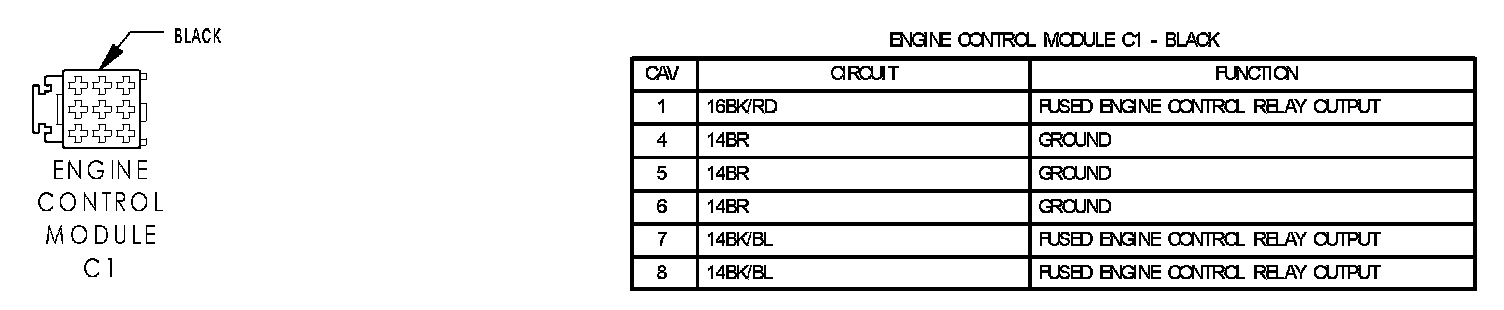

Engine Control Module C1:

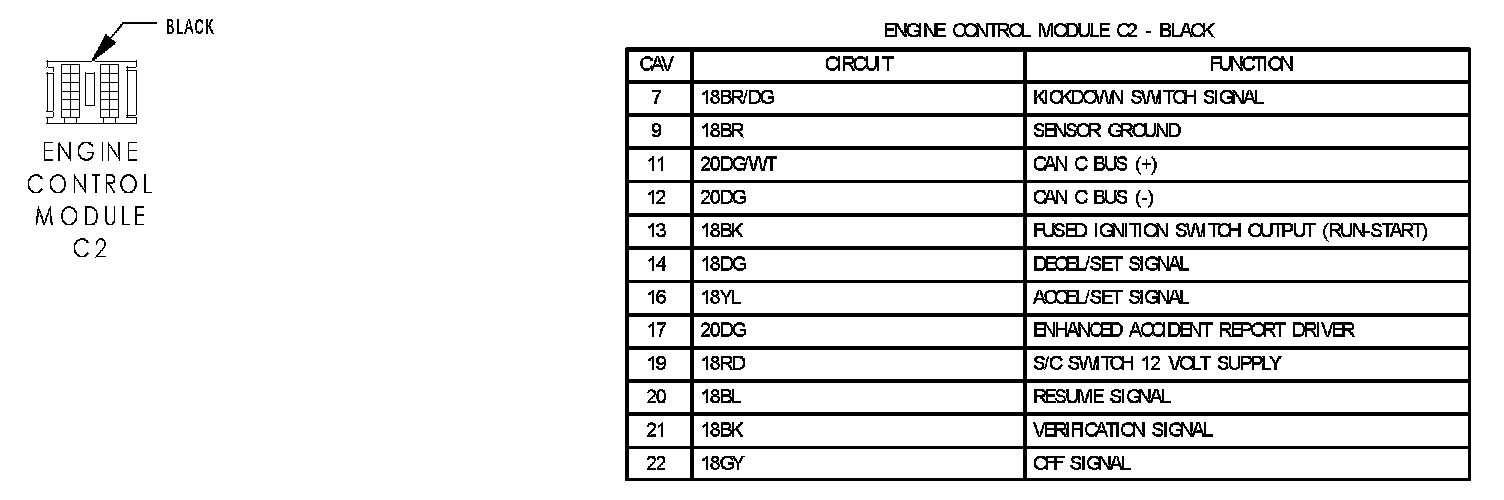

Engine Control Module C2:

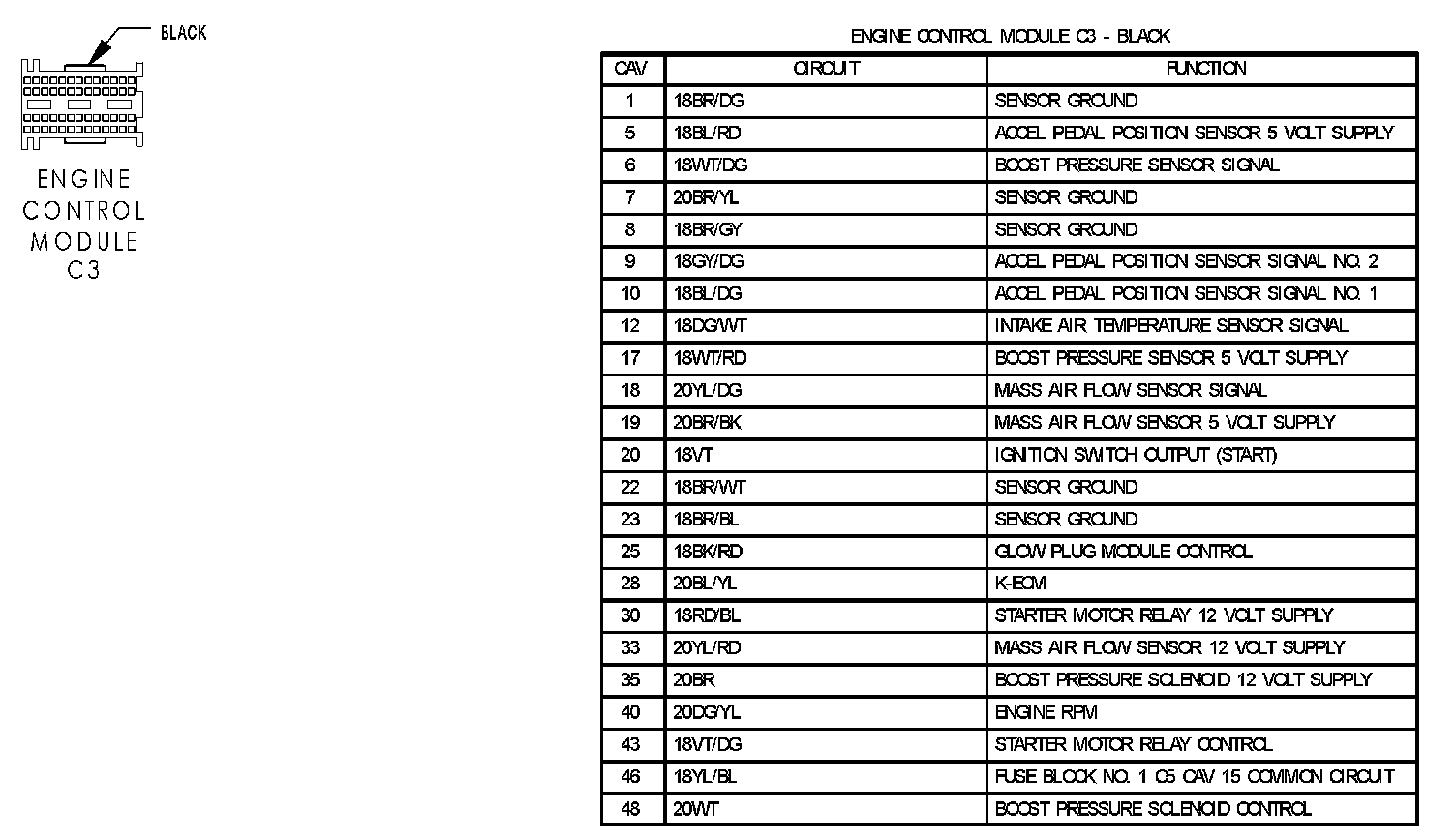

Engine Control Module C3:

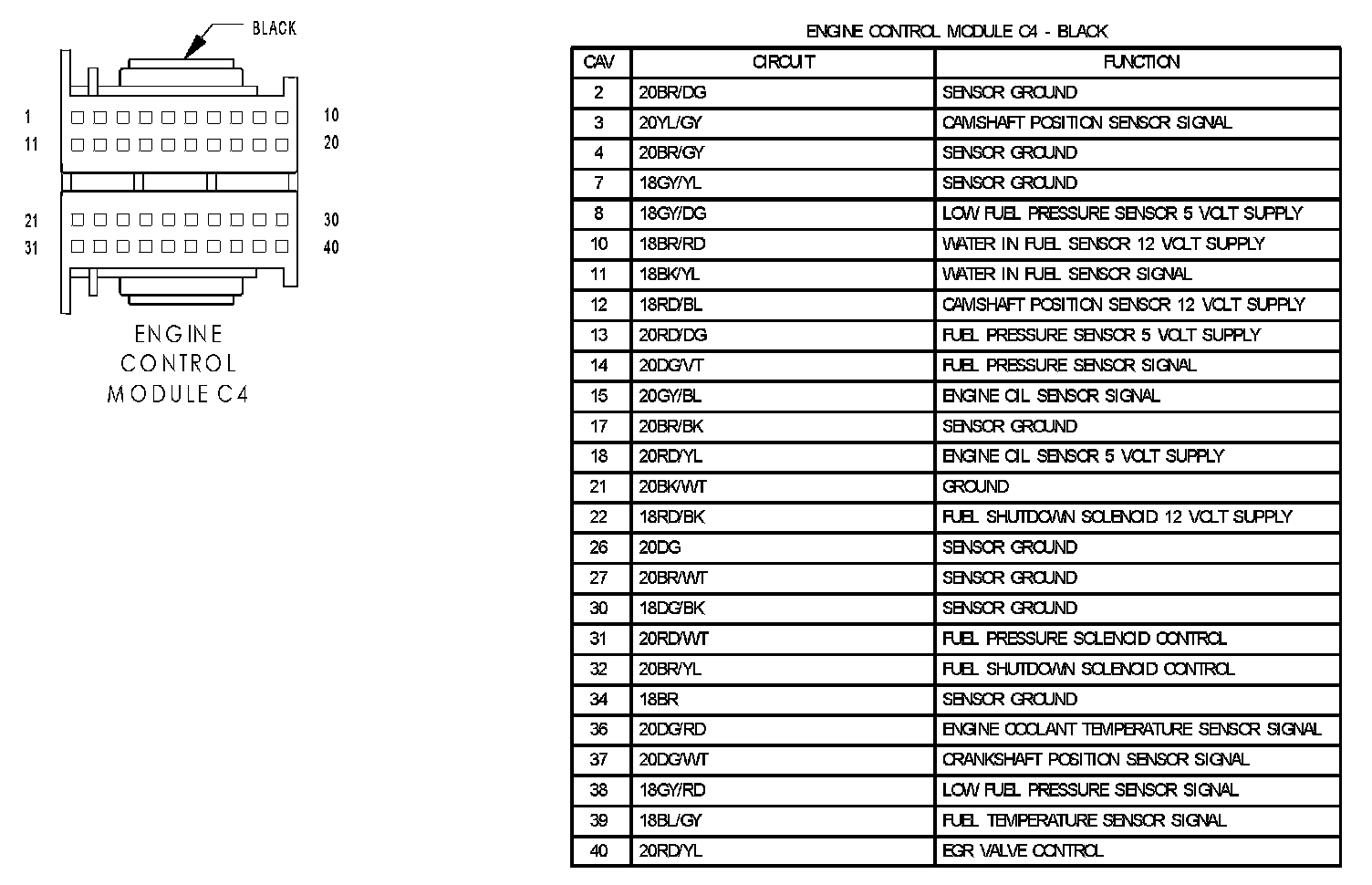

Engine Control Module C4:

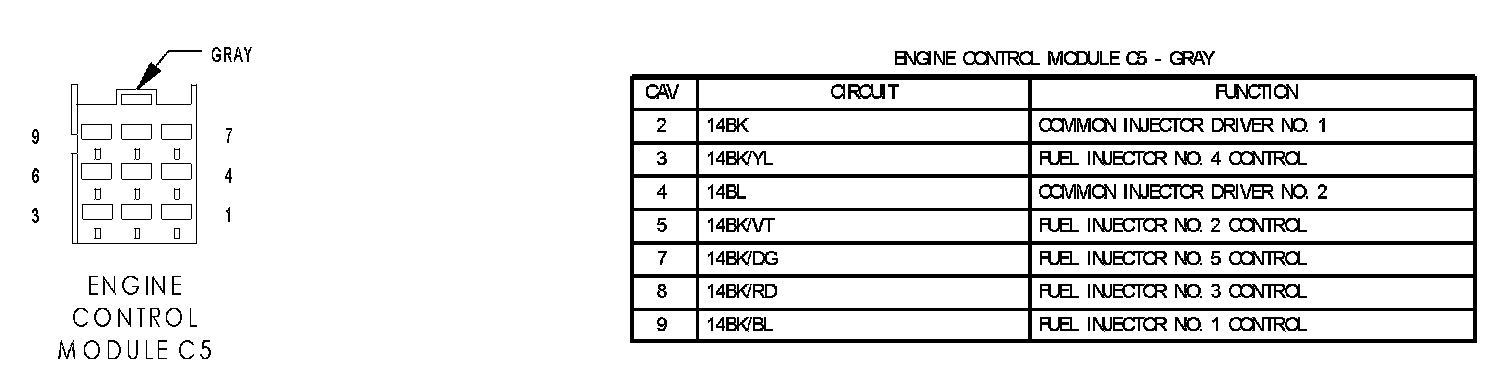

Engine Control Module C5:
