Home >> Freightliner >> 2002 >> Sprinter 2500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Diagrams

Oil Pressure Sensor: Diagrams

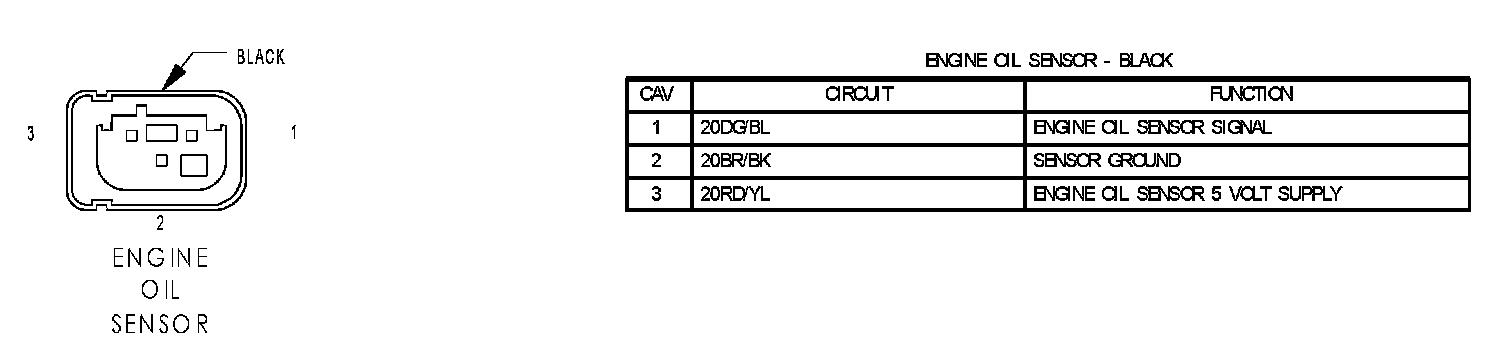

Engine Oil Sensor:
