Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Remove engine cover.

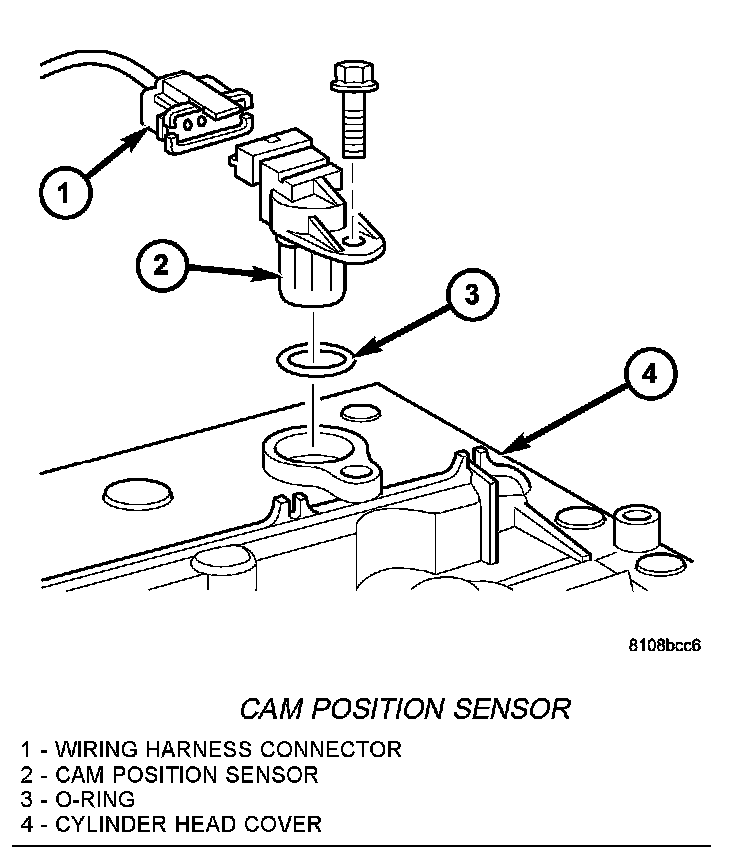

CAM Position Sensor:

3. Disconnect camshaft position sensor electrical connector .
4. Remove retaining bolt and remove sensor.

INSTALLATION
1. Install camshaft position sensor and tighten bolt.
2. Reconnect electrical connector.
3. Install engine cover.
4. Reconnect negative battery cable.
