Trailer Lighting Module
Trailer Lighting Module

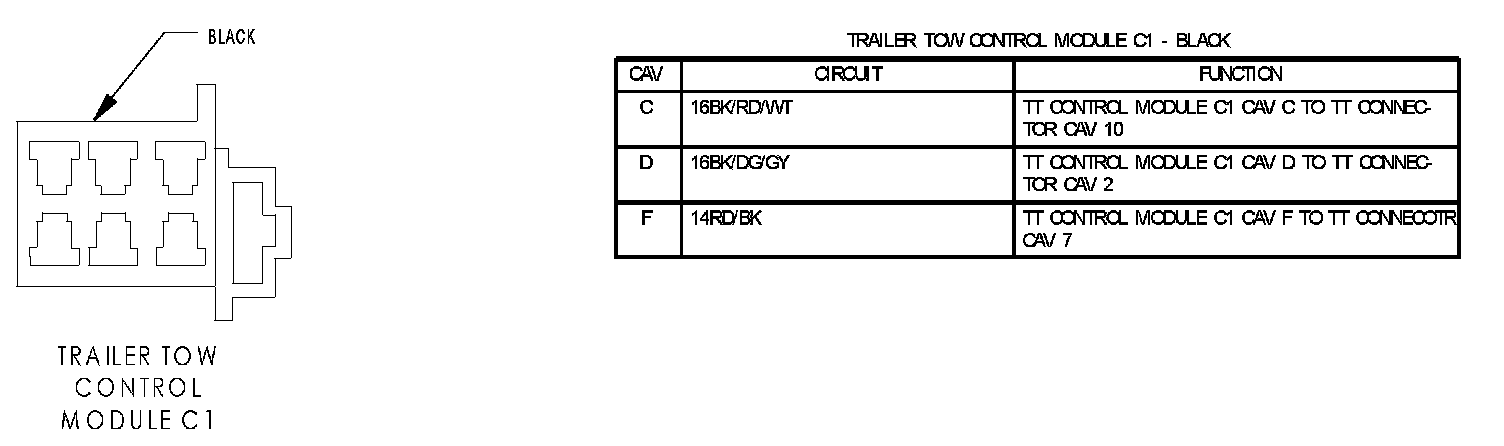

Trailer Tow Control Module C1:

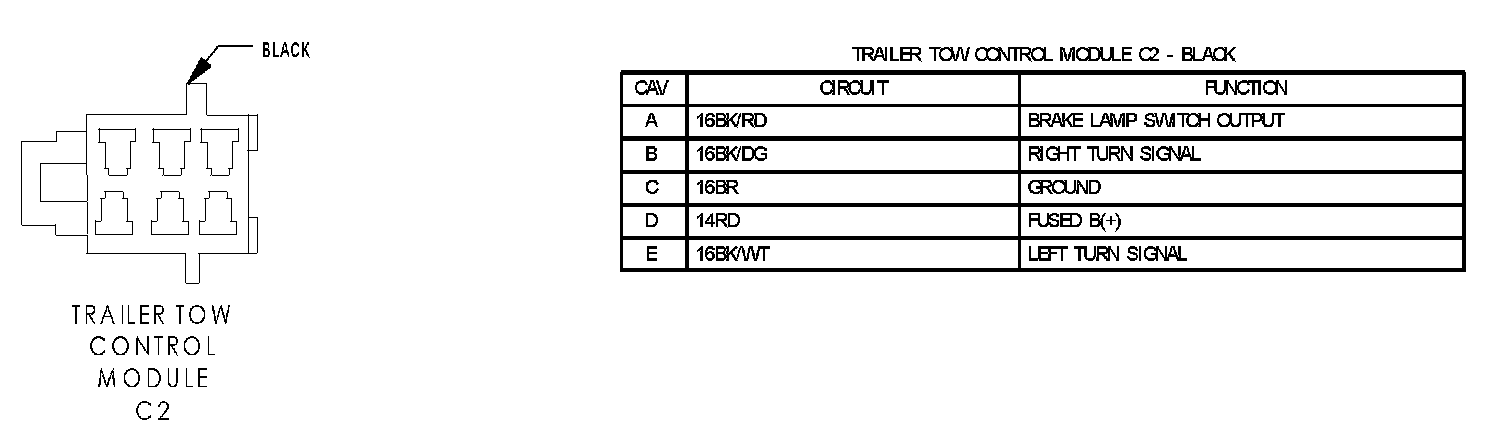

Trailer Tow Control Module C2:
