Home >> Freightliner >> 2002 >> Sprinter 2500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

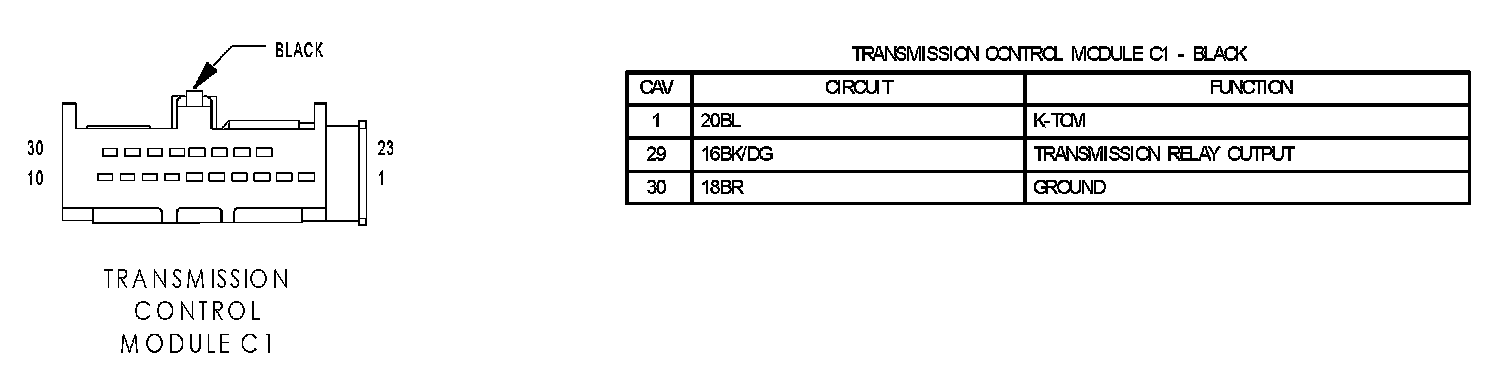

Transmission Control Module C1:

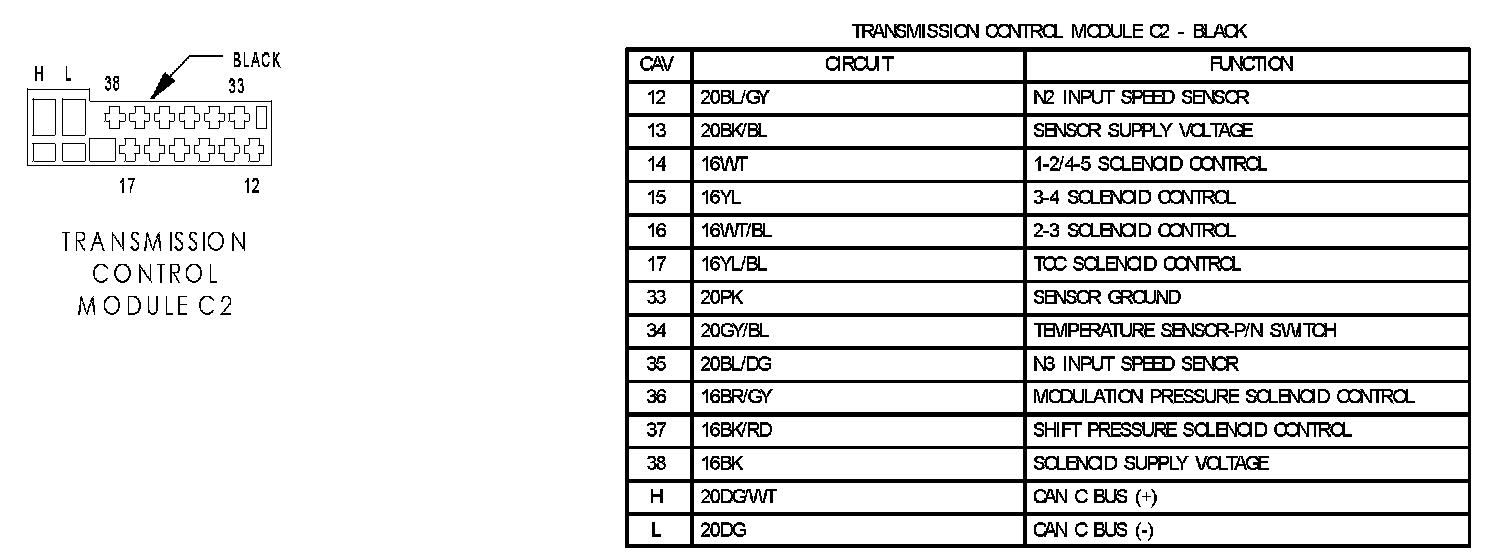

Transmission Control Module C2:
