Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

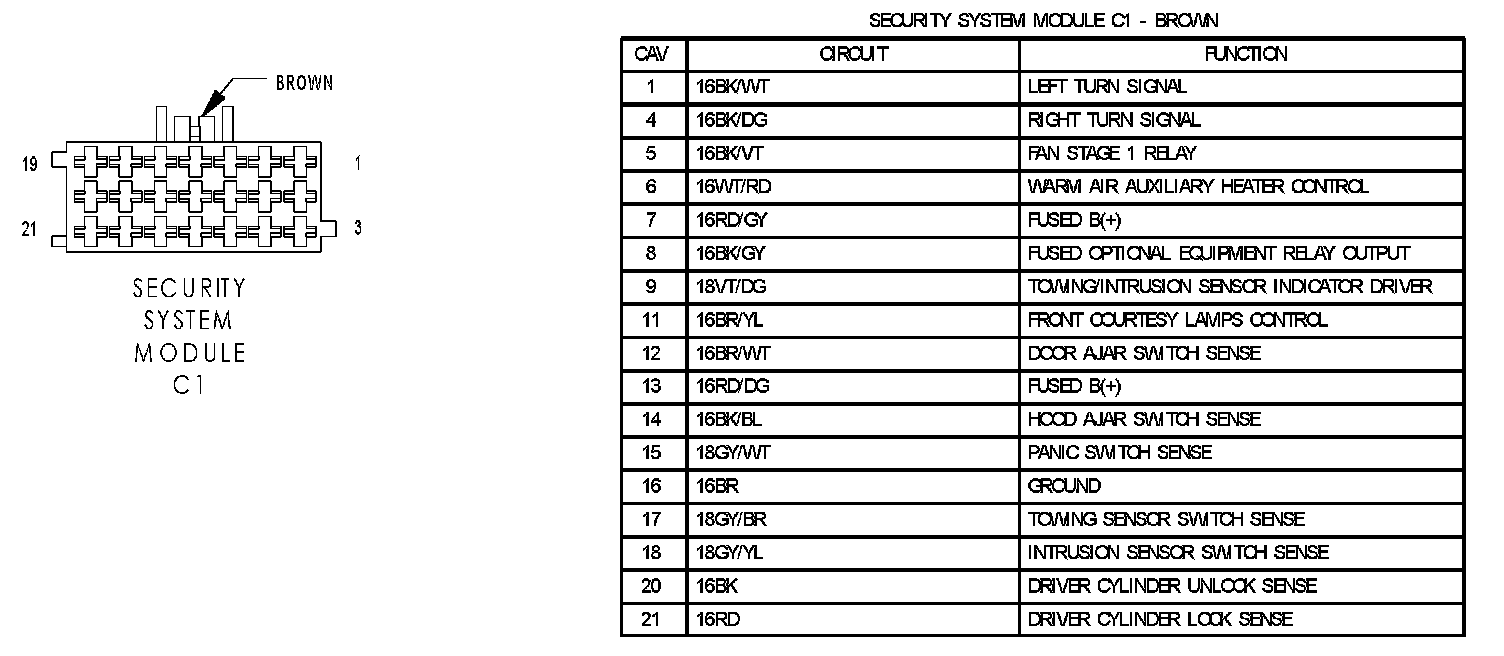

Security System Module C1:

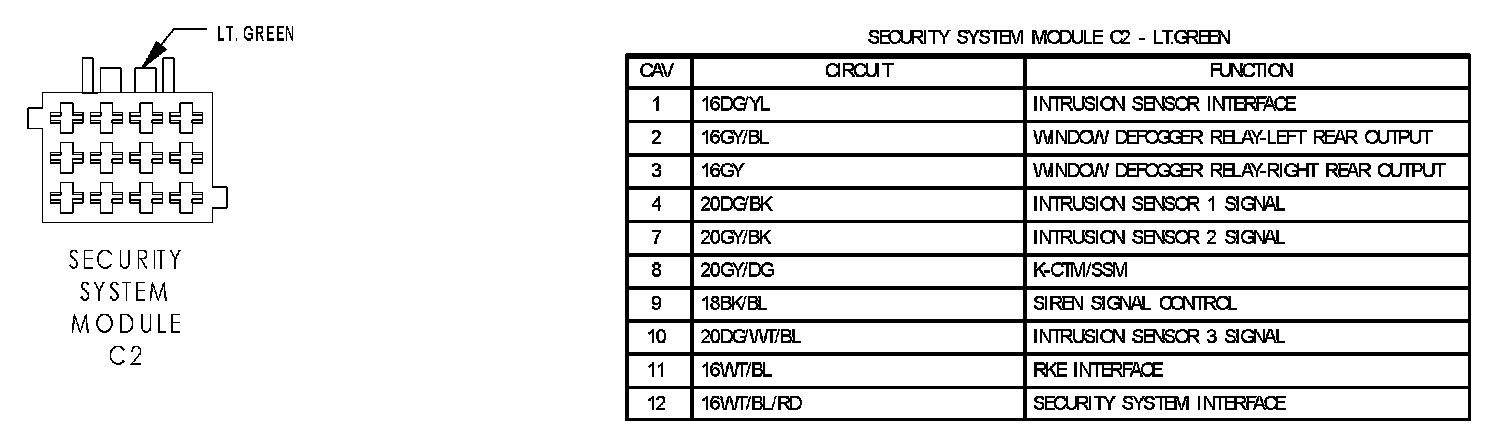

Security System Module C2:
