Test KG: Fuel Injector



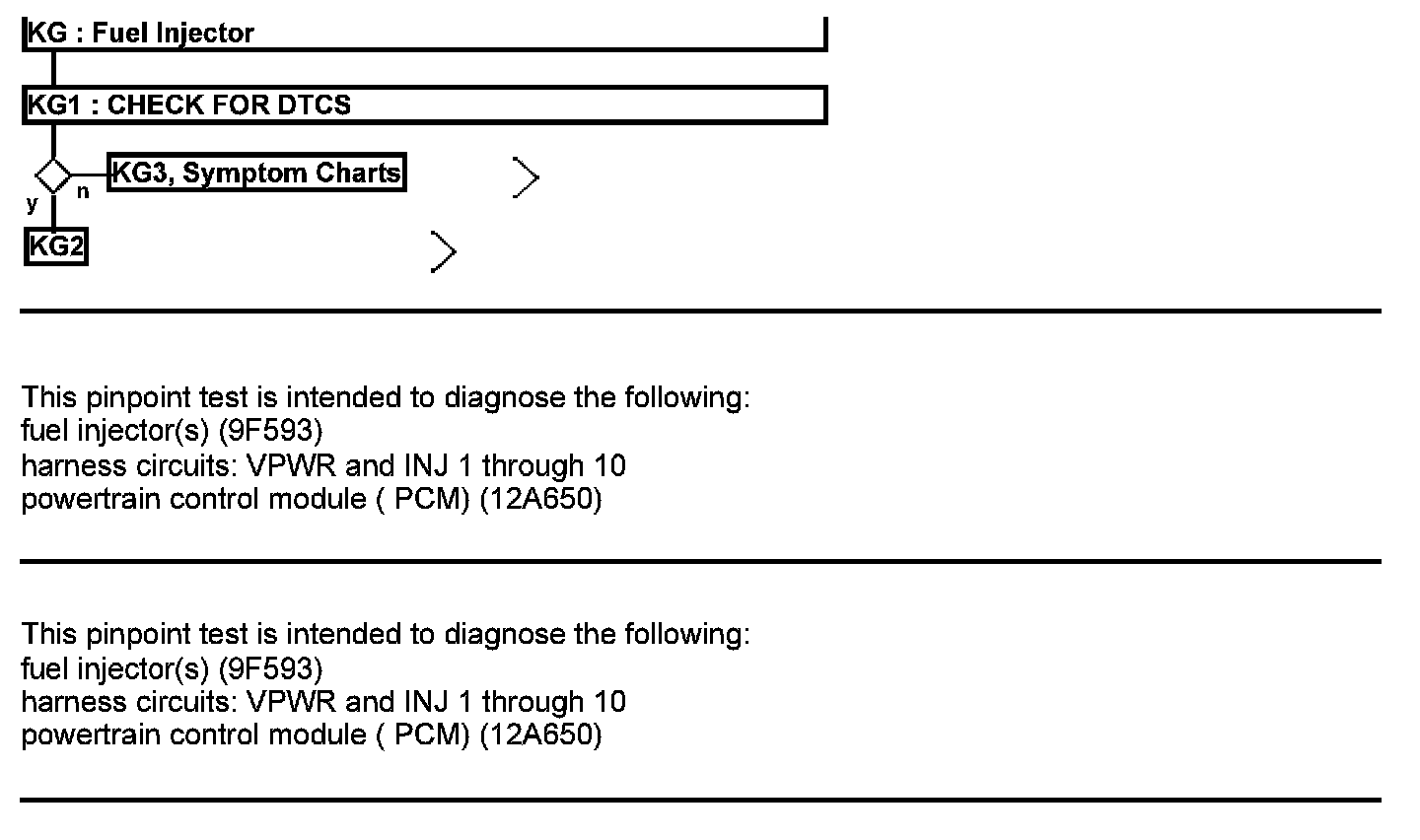

Fuel Injector

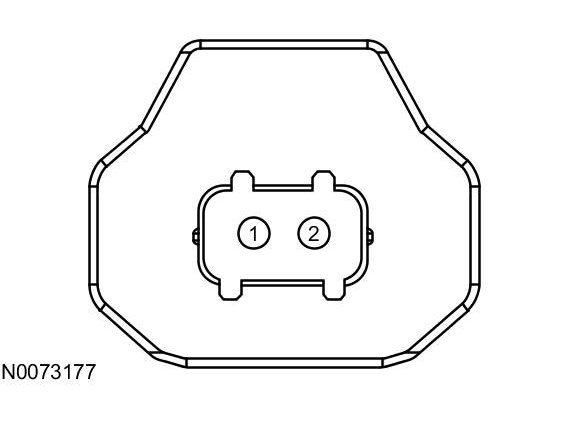

Injector (INJ) Connector





Harness Side

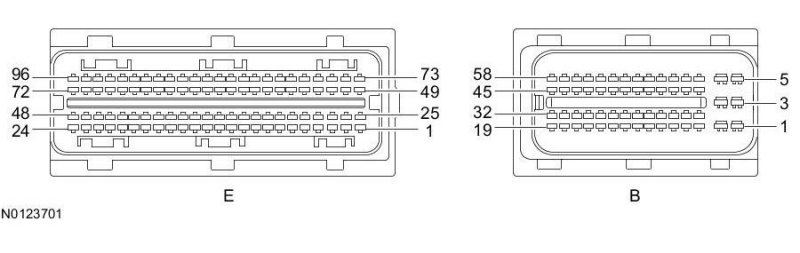

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
