Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Locations >> Connectors

Connectors

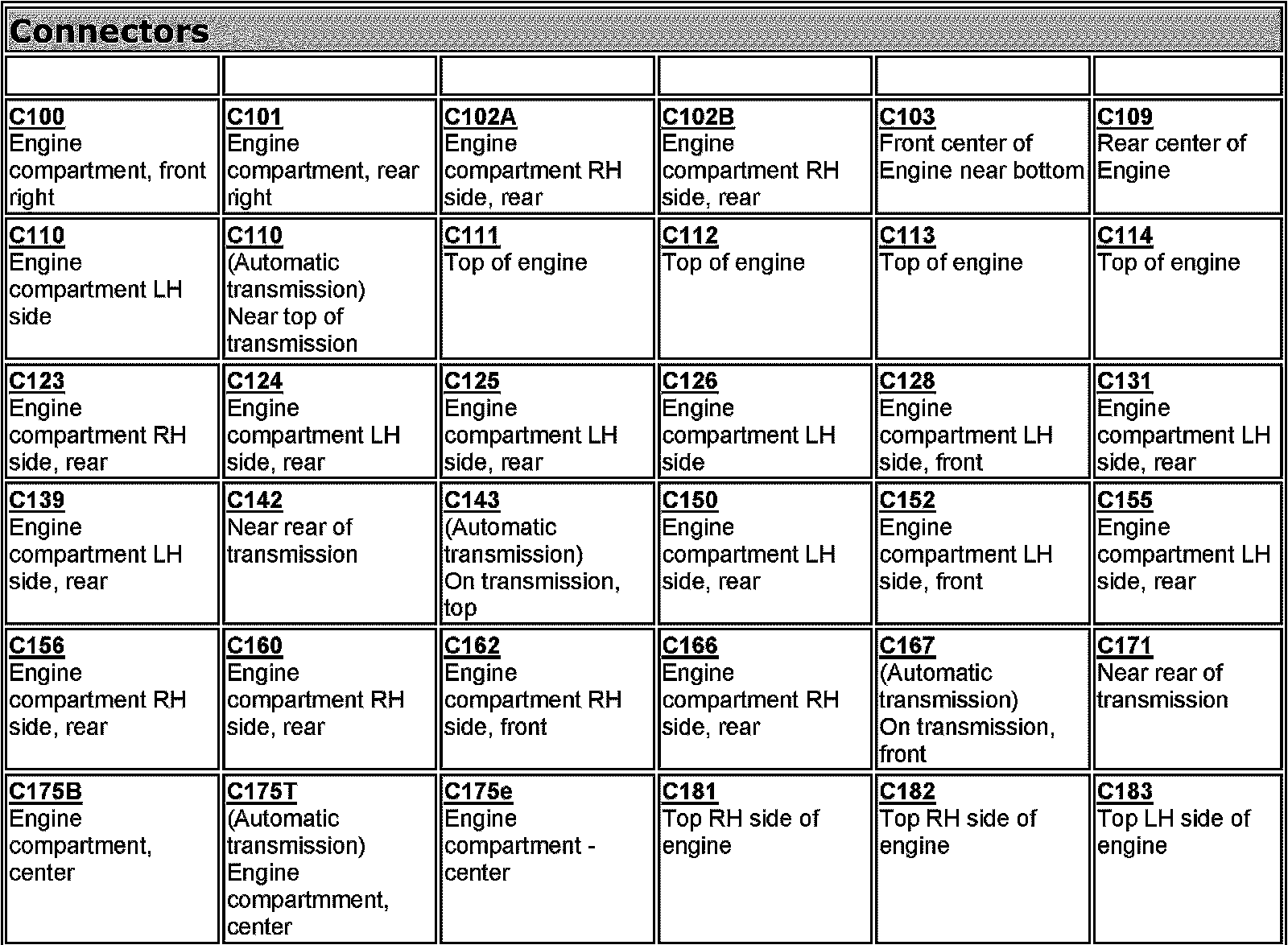

C100-C184:

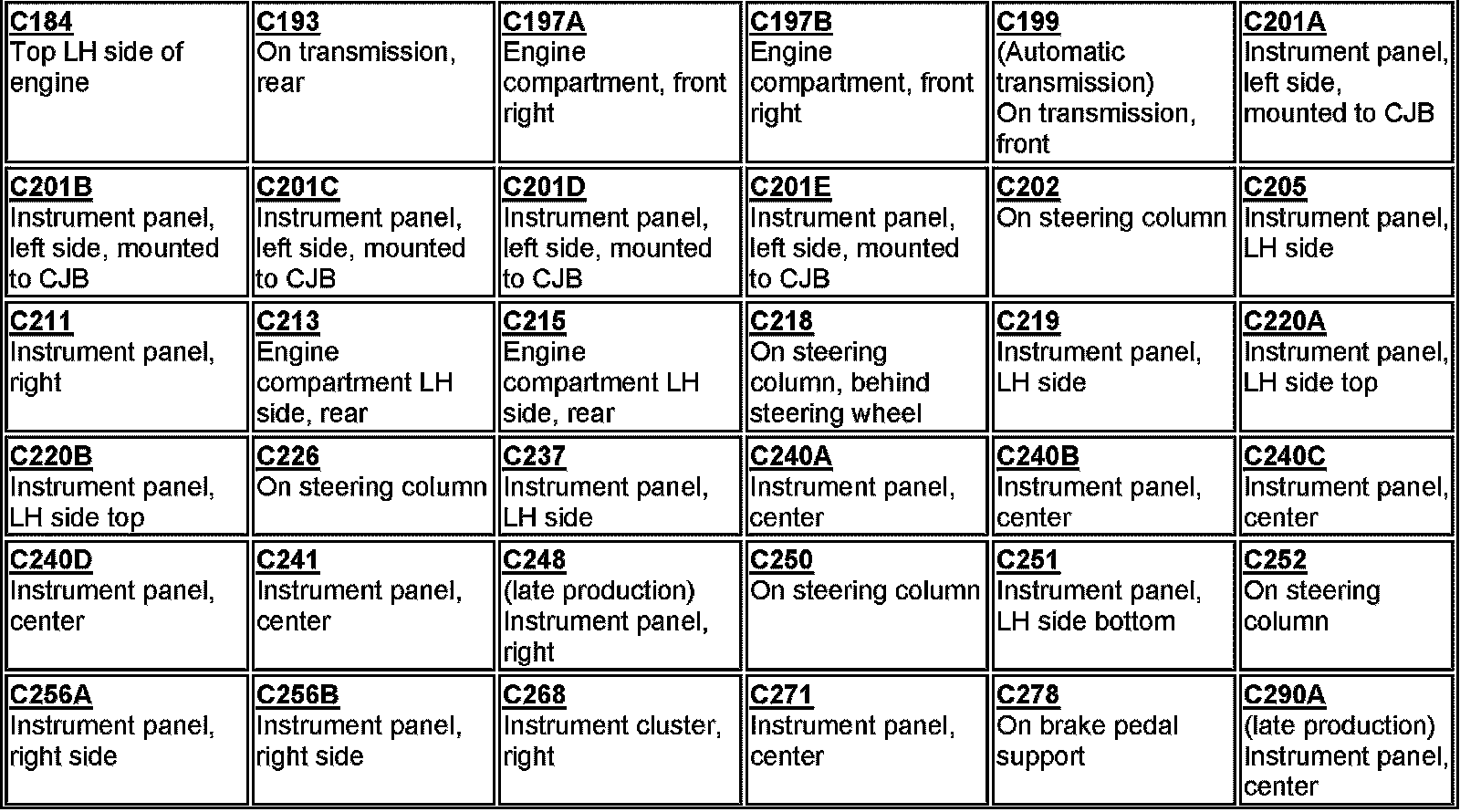

C184-C290A:

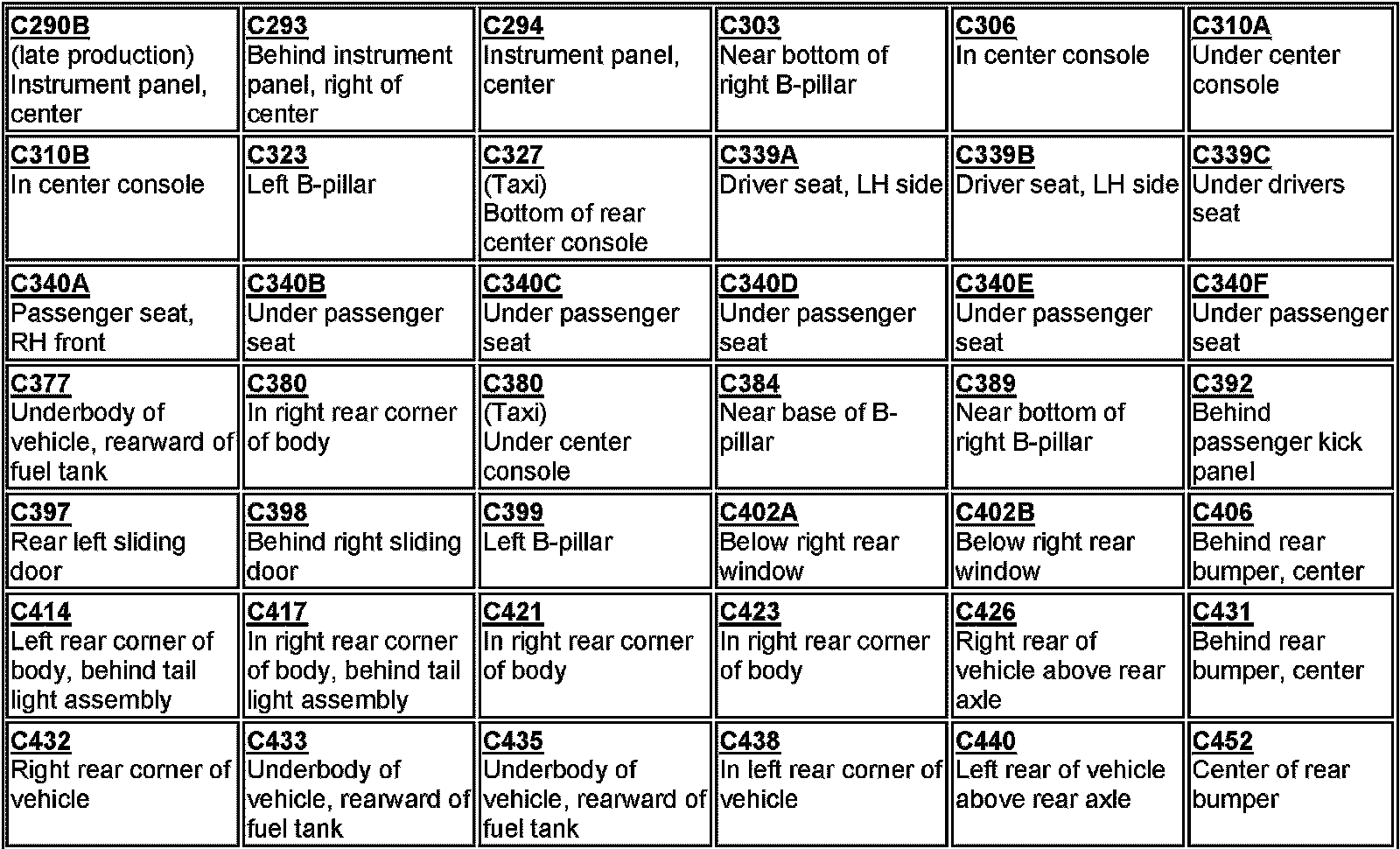

C290B-C452:

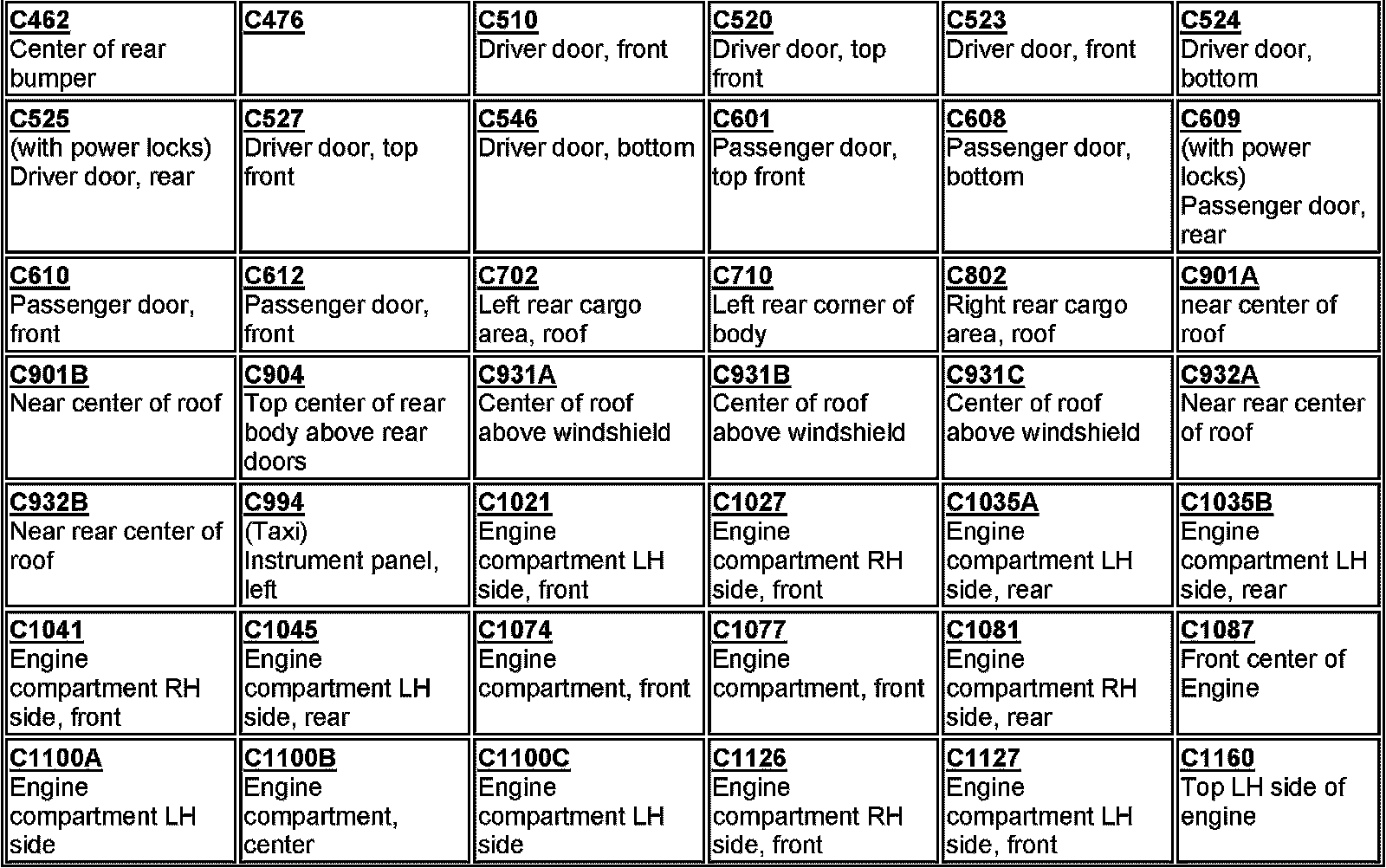

C462-C1160:

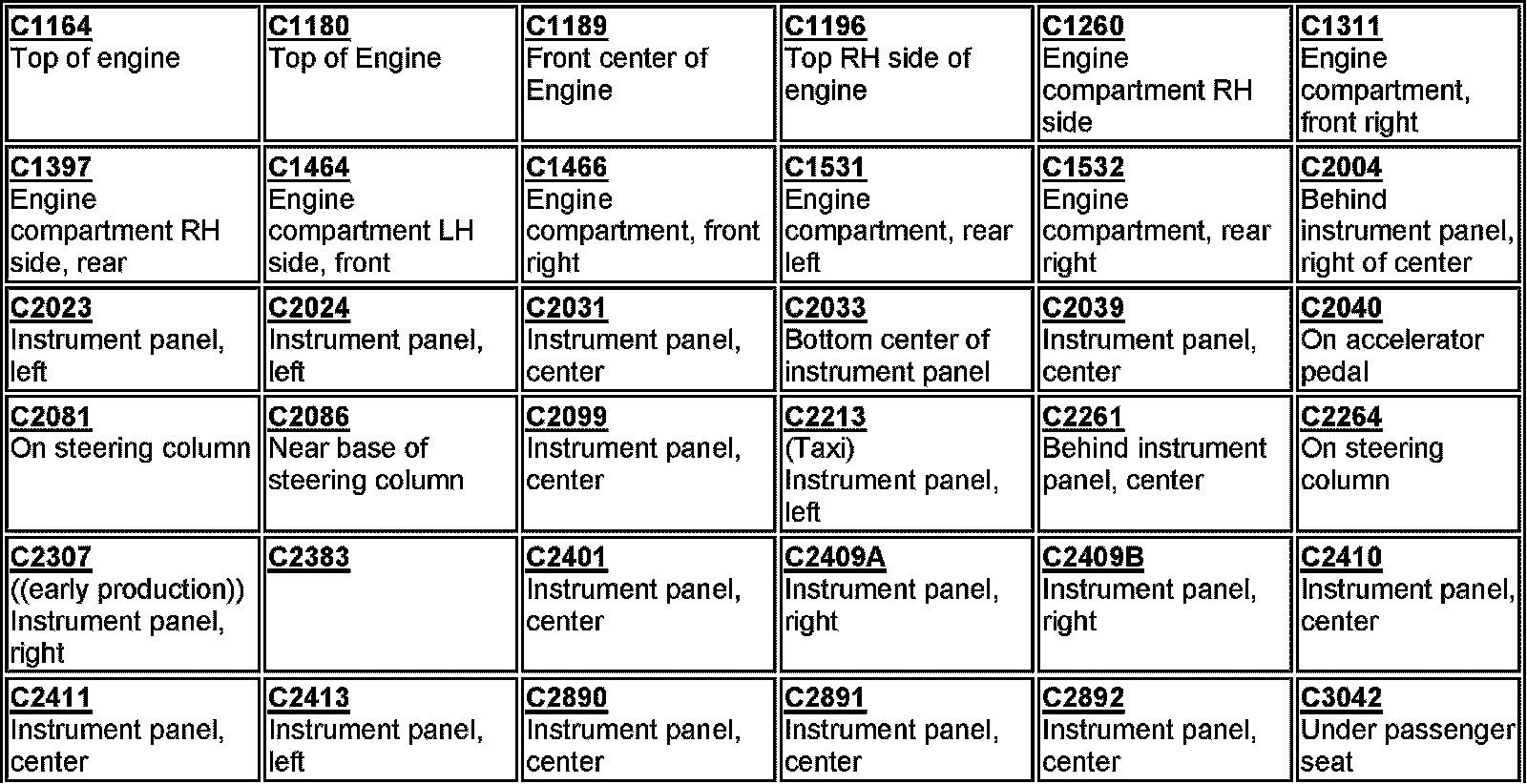

C1164-C3042:

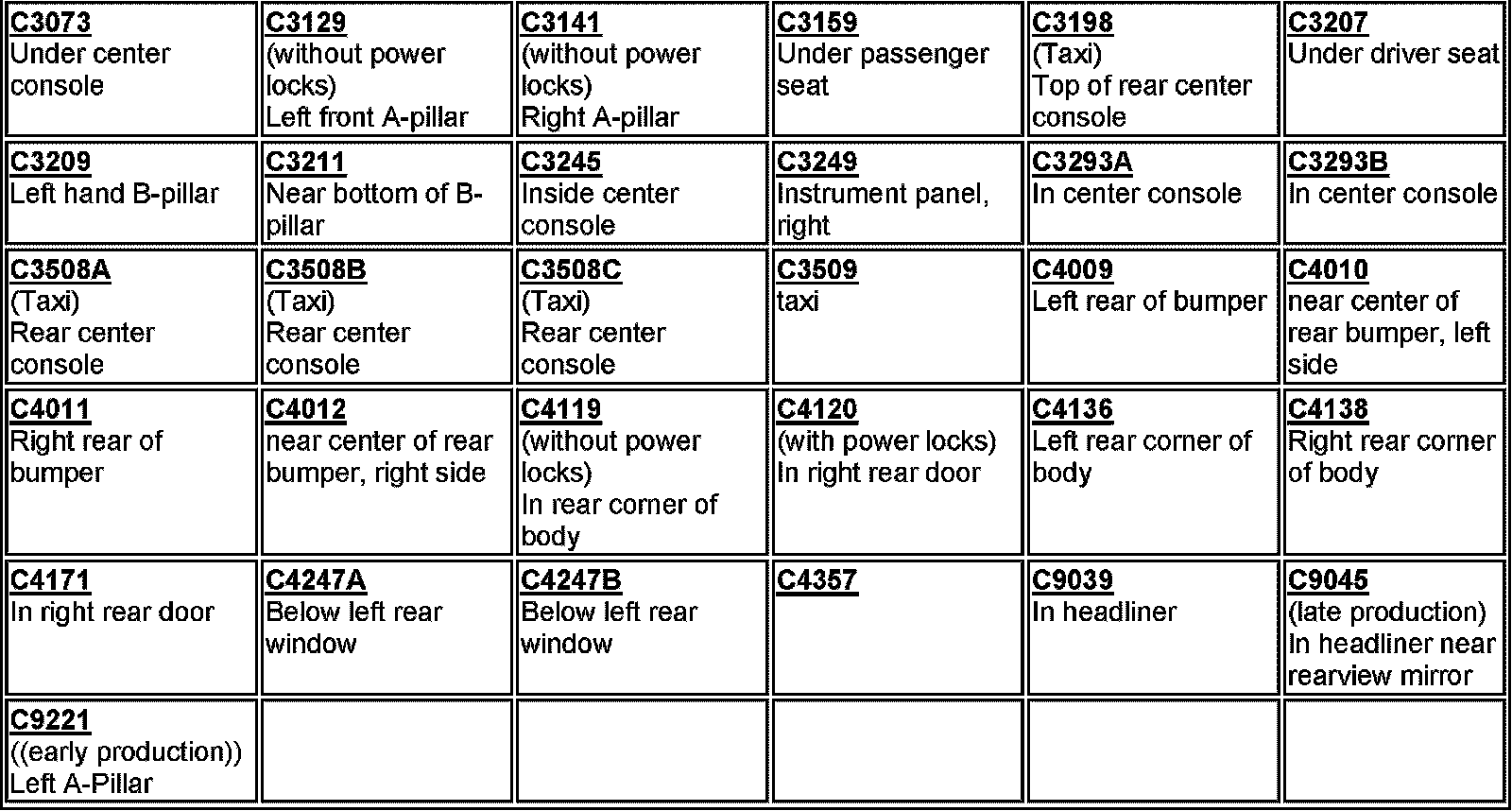

C3073-C9221:
