Tire Pressure Module
>>

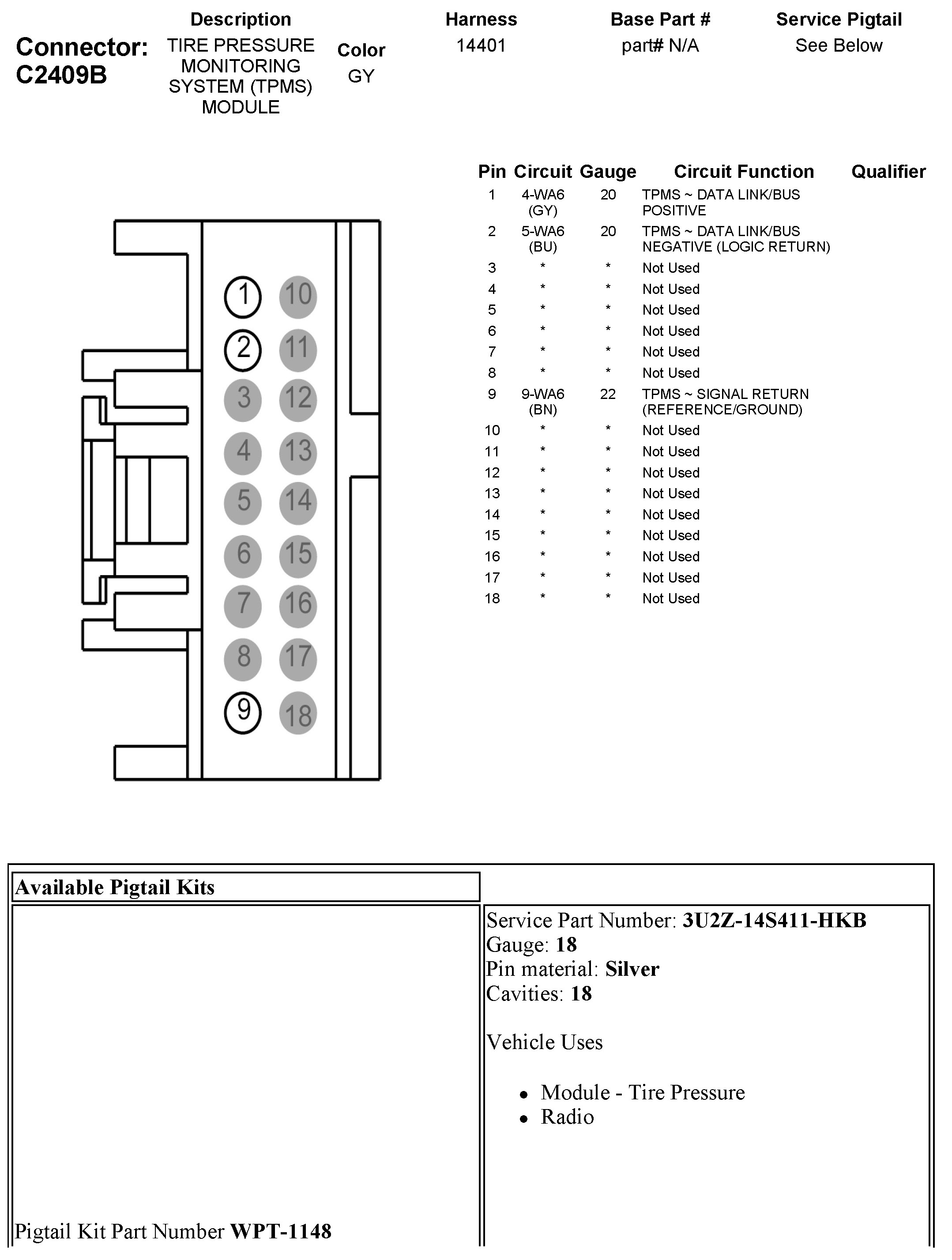

C2409B Tire Pressure Monitoring System (TPMS) Module
C2409B Tire Pressure Monitoring System (TPMS) Module
