Air Bag Control Module
>>

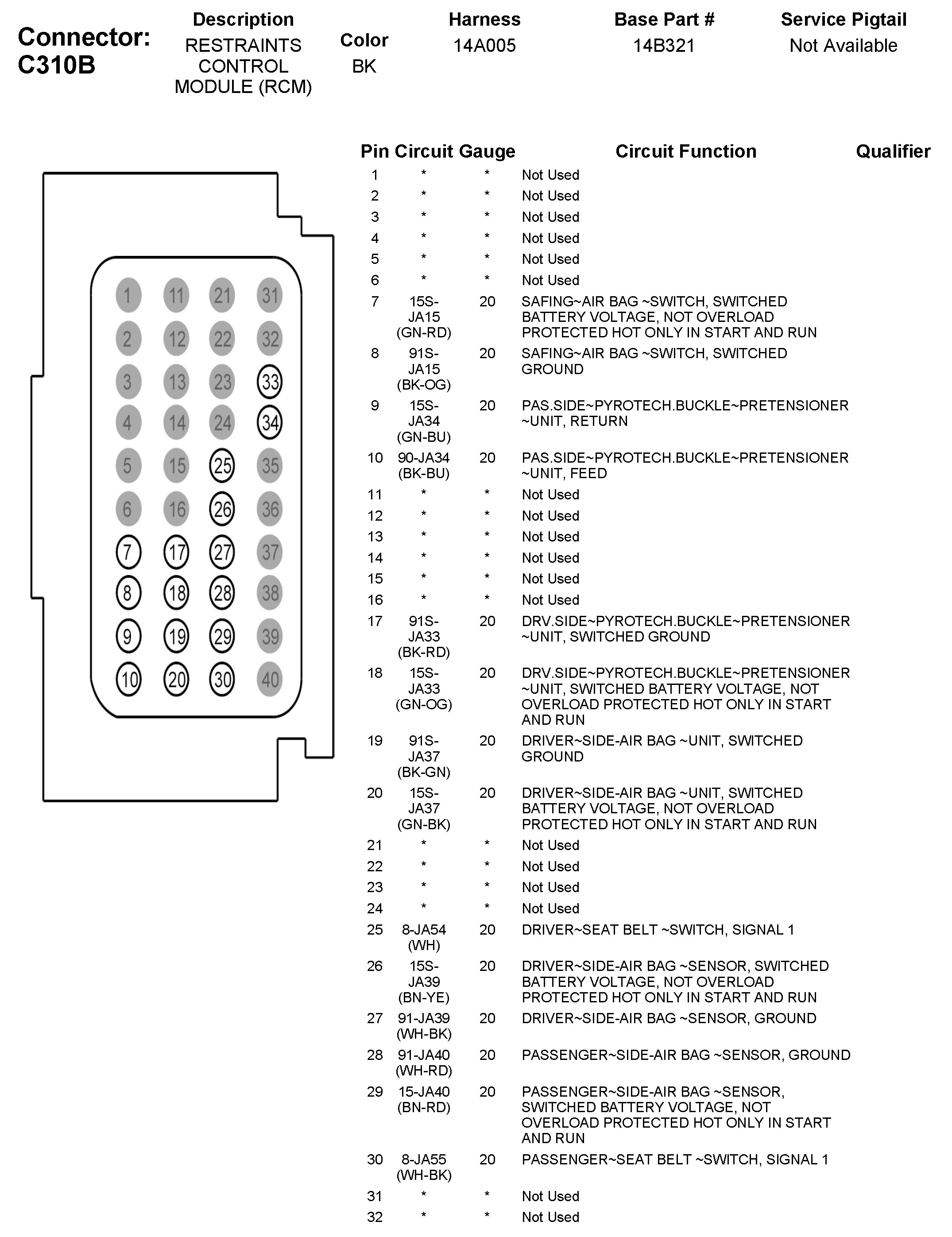

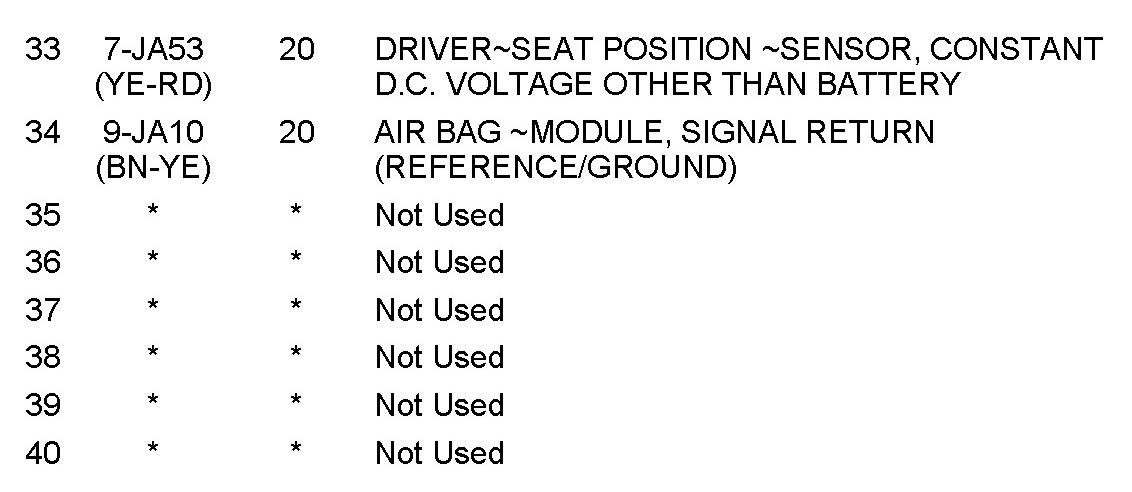

C310B Restraints Control Module (RCM)
C310B Restraints Control Module (RCM)
