Air Bag Control Module
>>

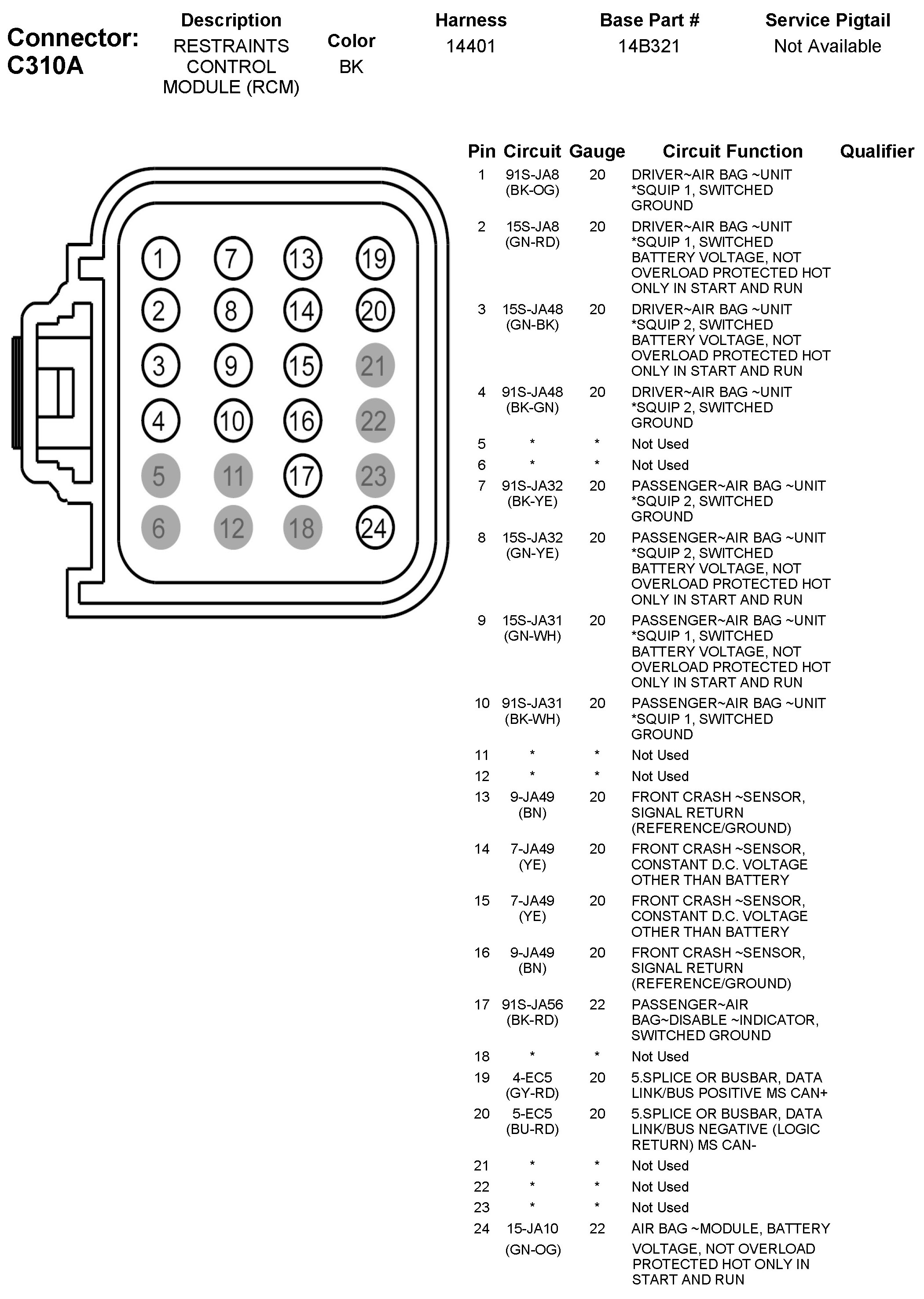

C310A Restraints Control Module (RCM)
C310A Restraints Control Module (RCM)
