Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

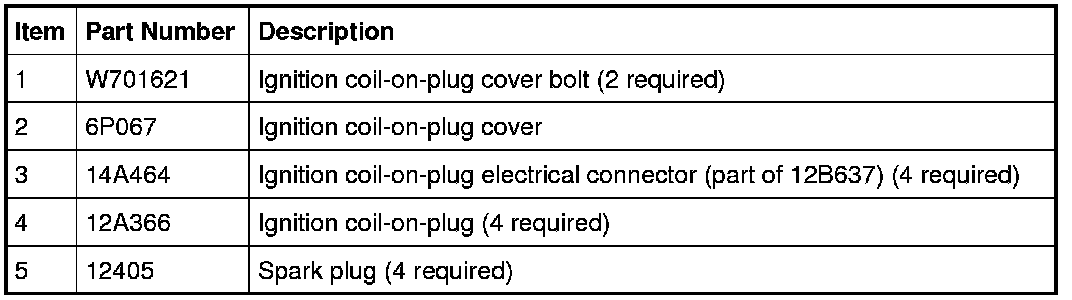

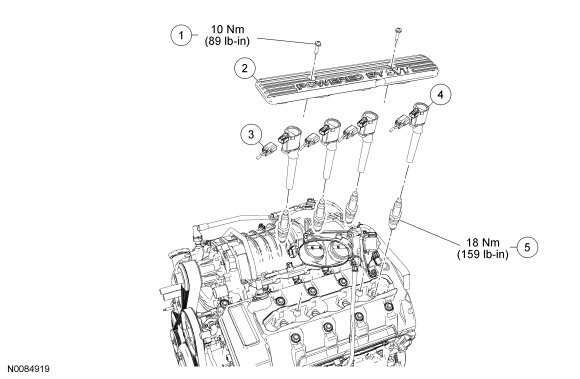

LH Ignition Components

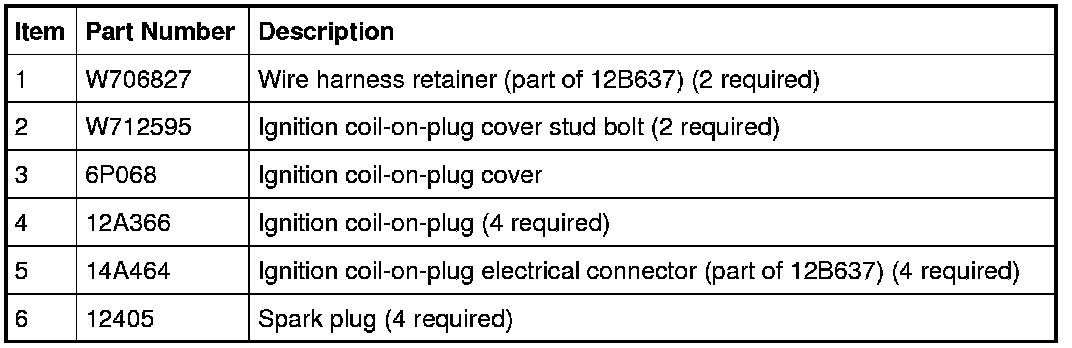

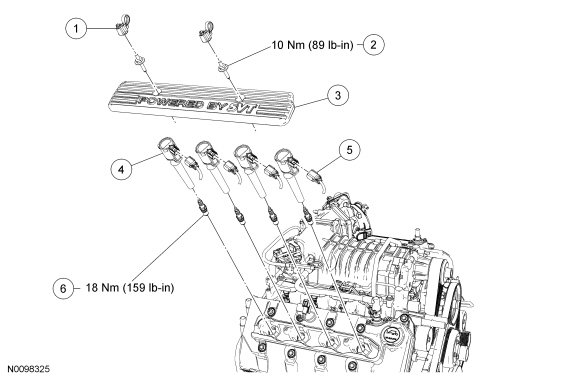

RH Ignition Components
