Ford
>>
2012
>>
Mustang V8-5.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

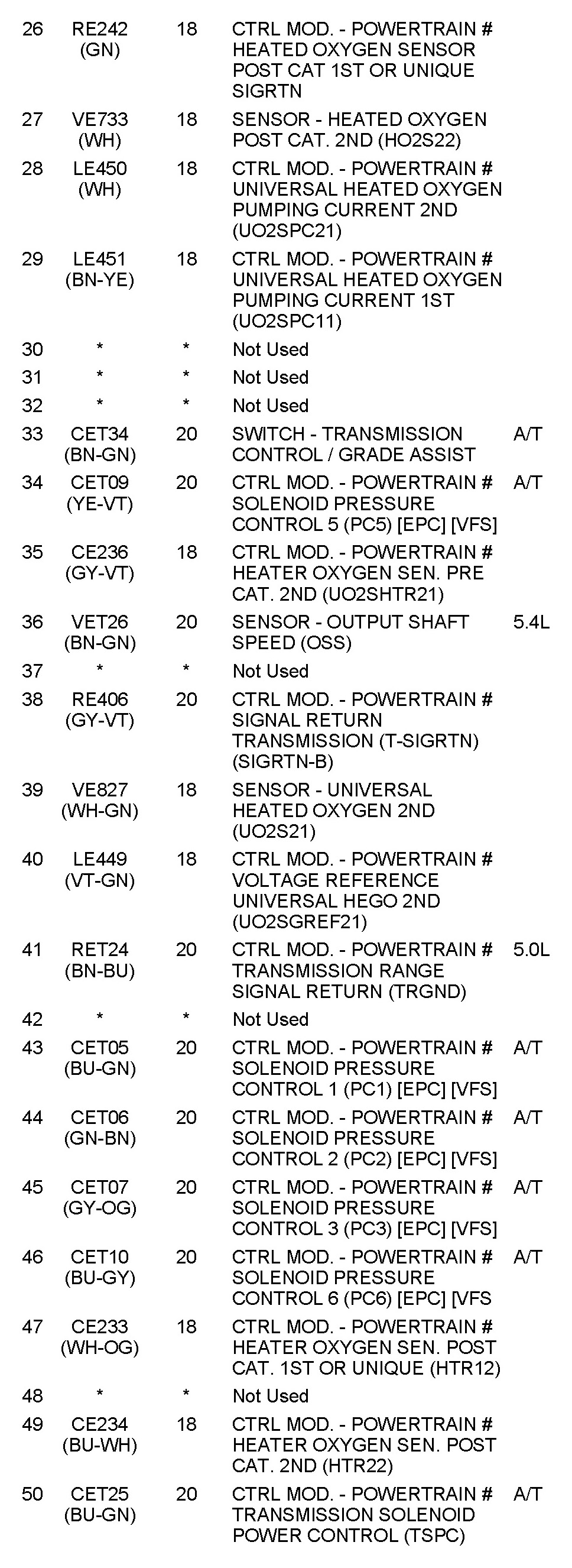

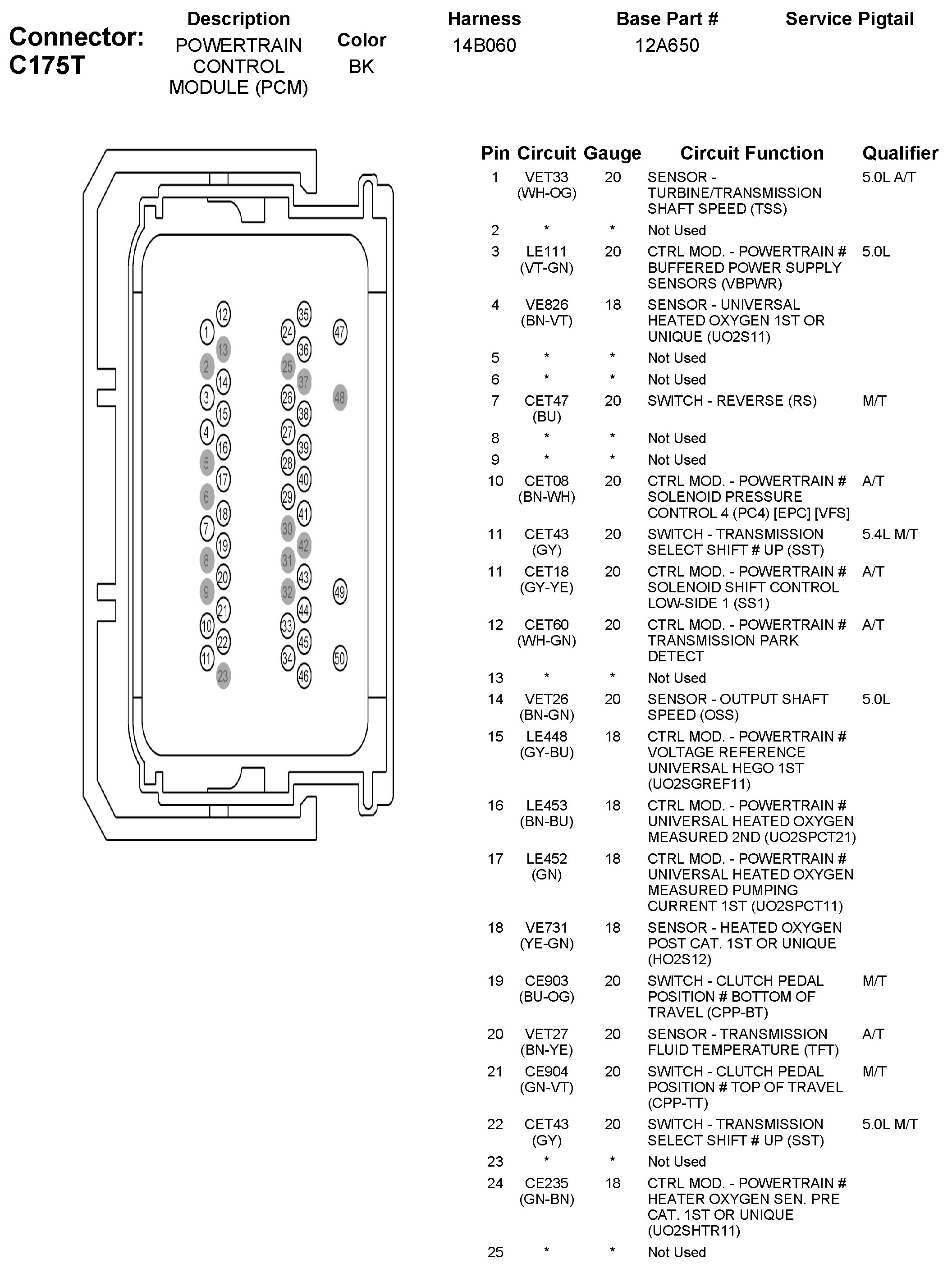

C175T Powertrain Control Module (PCM)
C175T Powertrain Control Module (PCM)
