Home >> Ford >> 2012 >> Mustang V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Frame >> Subframe >> Front Subframe >> Service and Repair >> Subframe and Components - Exploded View, Front

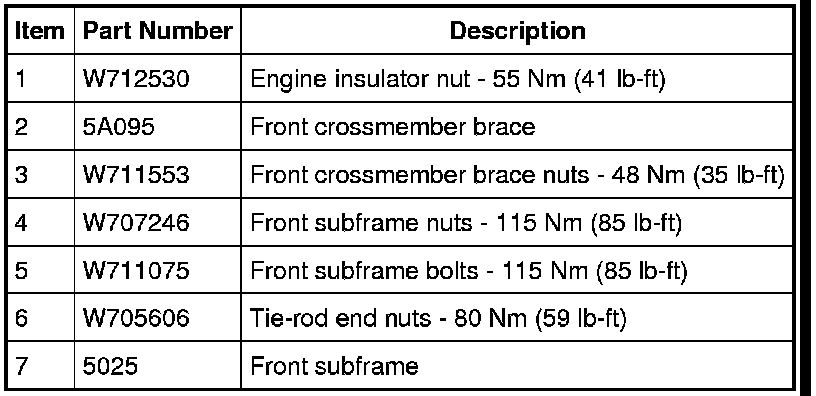

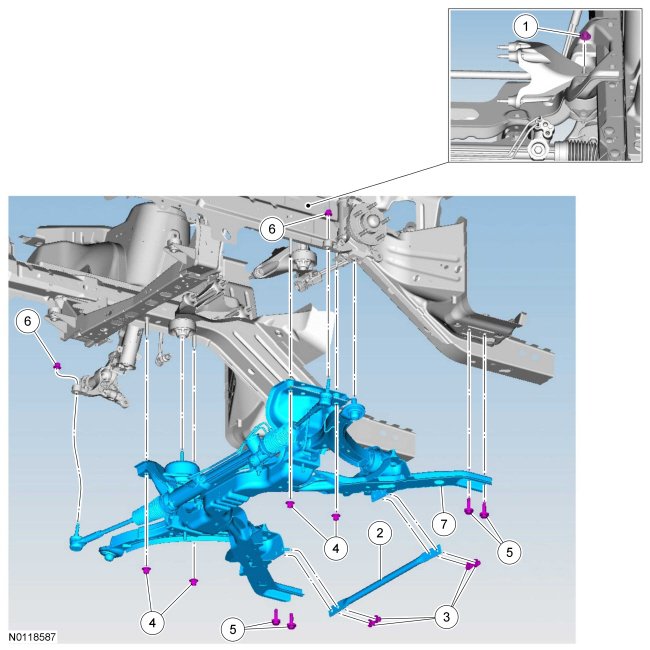

Subframe and Components - Exploded View, Front




Subframe and Components - Exploded View, Front









1. For additional information, refer to the procedures.
