Home >> Ford >> 2012 >> Mustang V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Frame >> Subframe >> Front Subframe >> Locations

Front Subframe: Locations

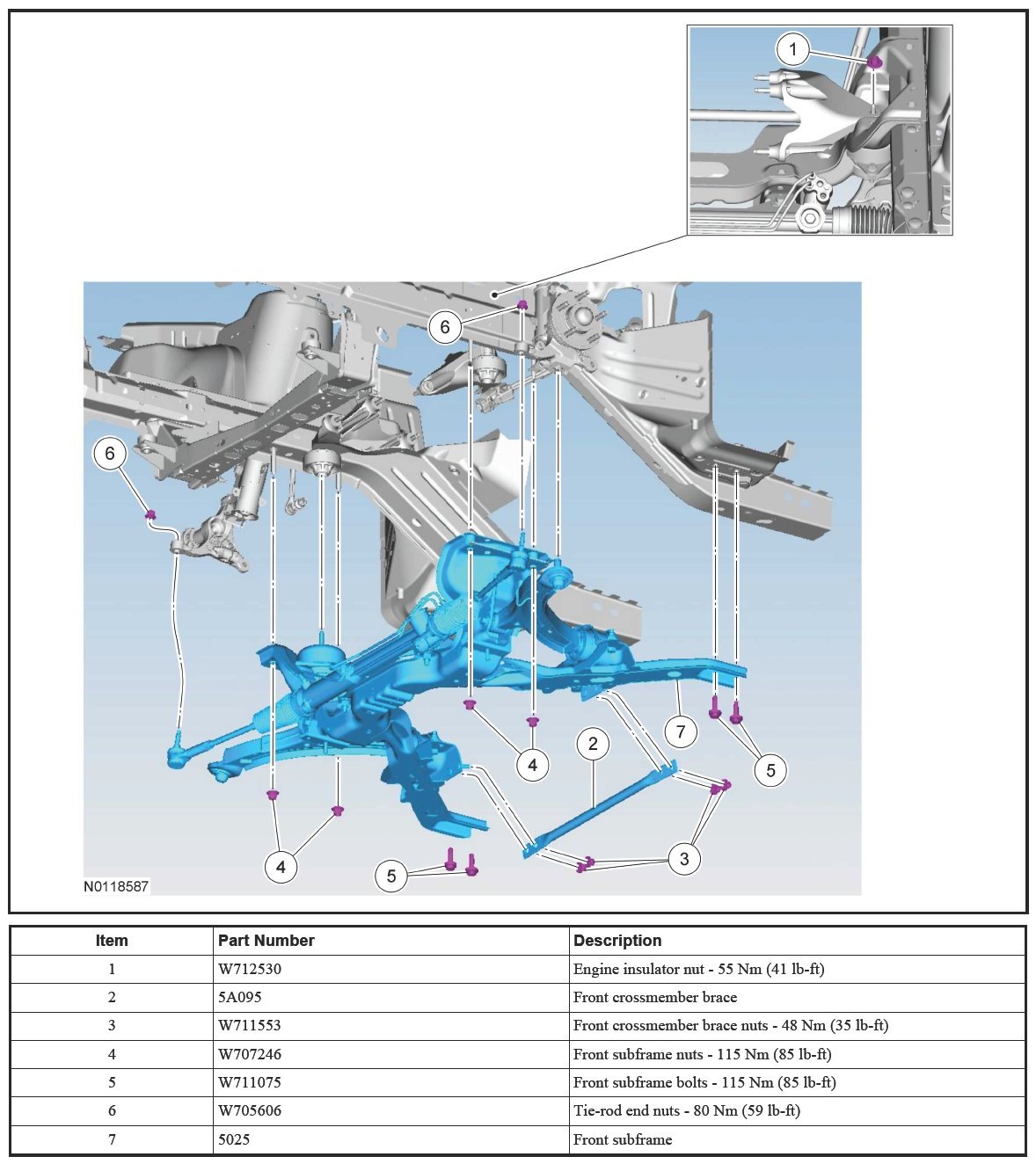

Subframe and Components - Exploded View, Front







1. For additional information, refer to the procedures.
