Home >> Ford >> 2012 >> Flex FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> C4250D Power-Fold Seat Module (PFSM)

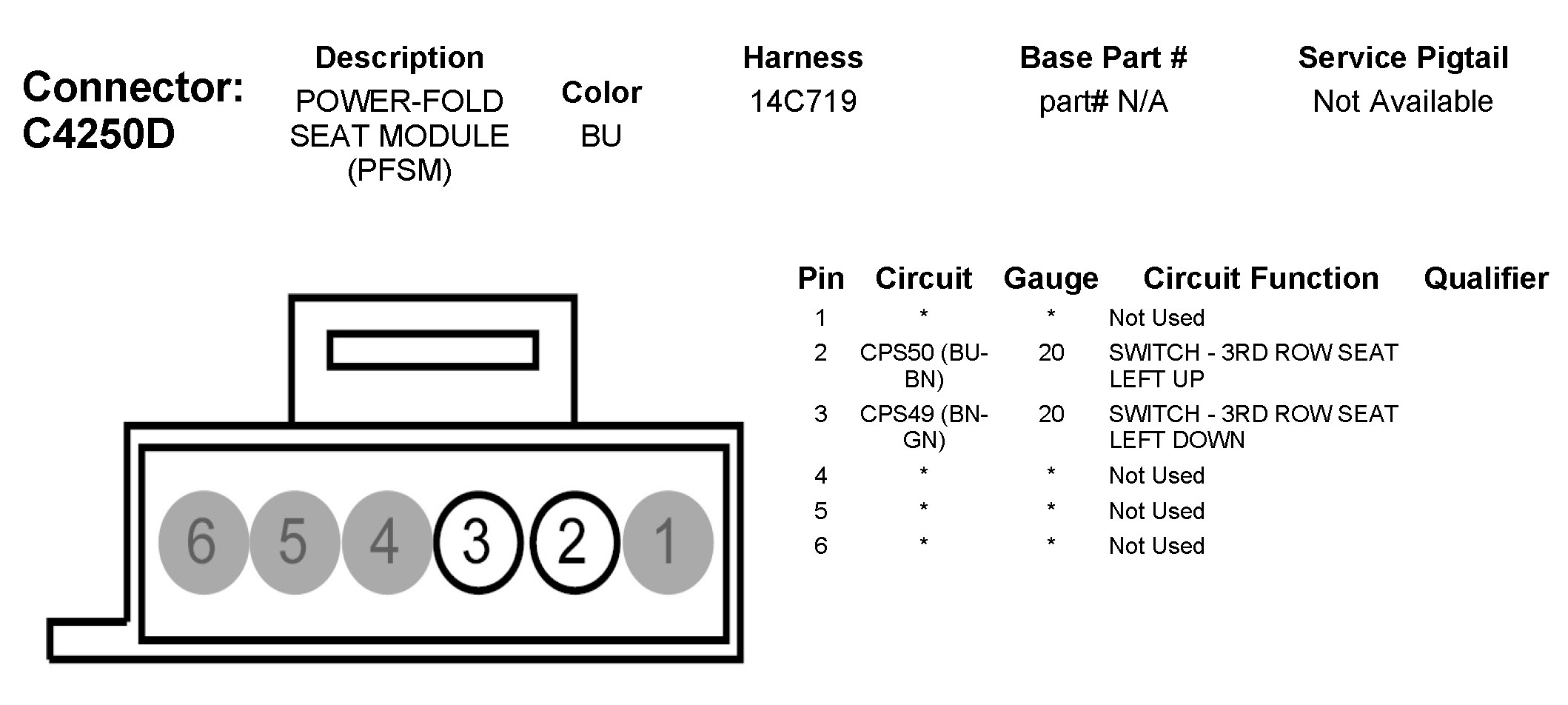

C4250D Power-Fold Seat Module (PFSM)
