Entertainment System Control Module
>>

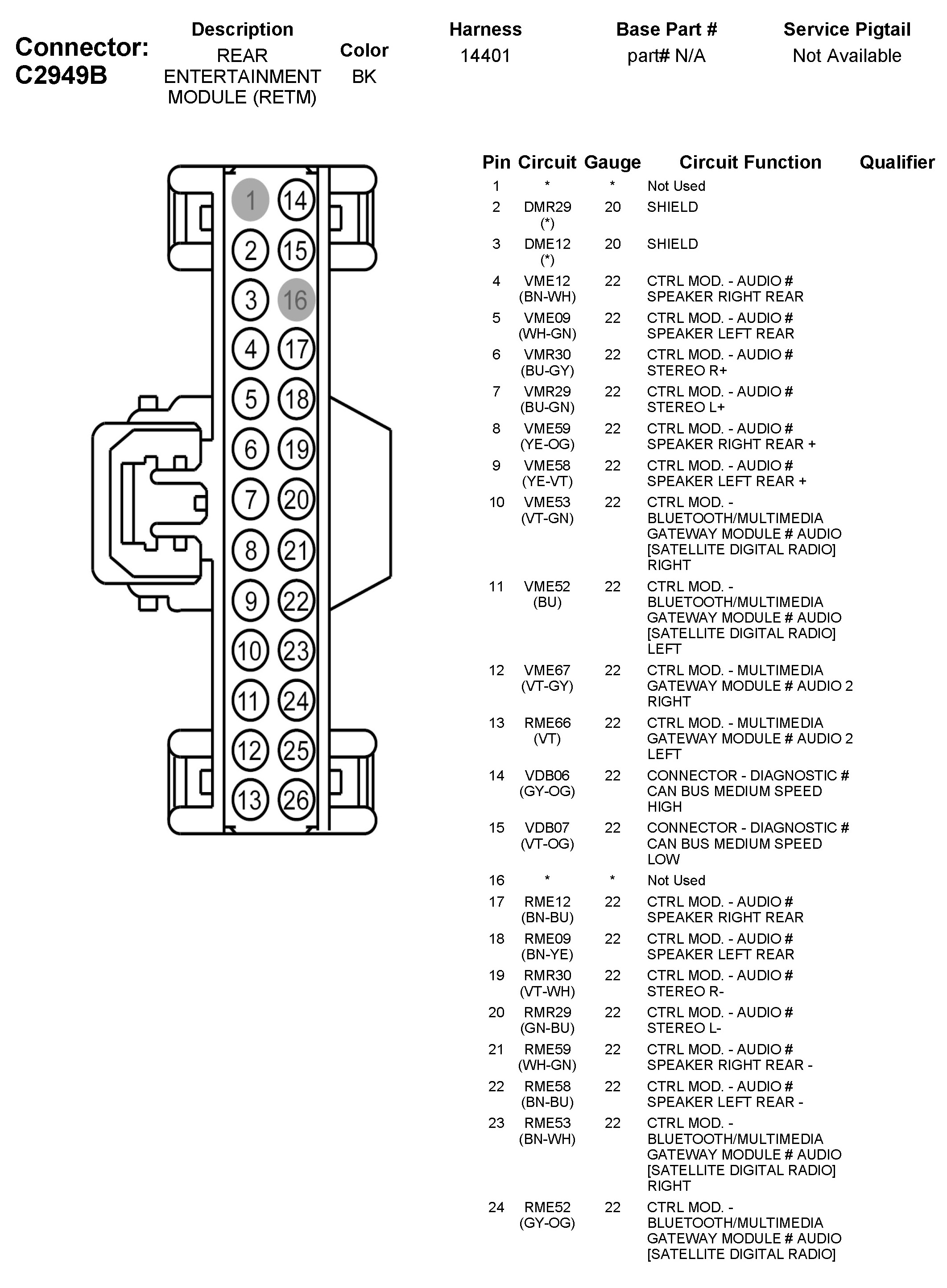

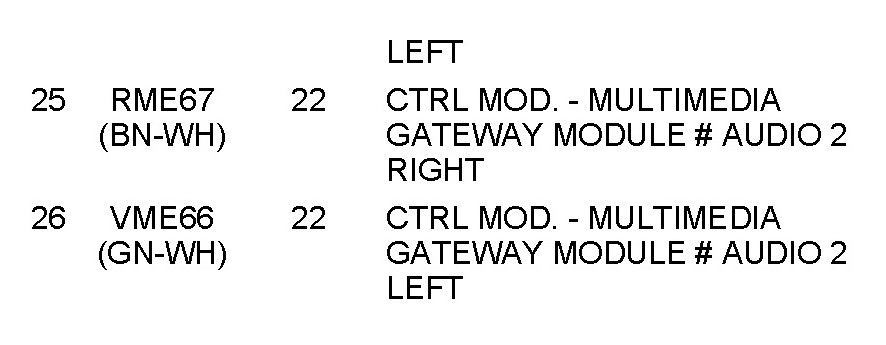

C2949B Rear Entertainment Module (RETM)
C2949B Rear Entertainment Module (RETM)
