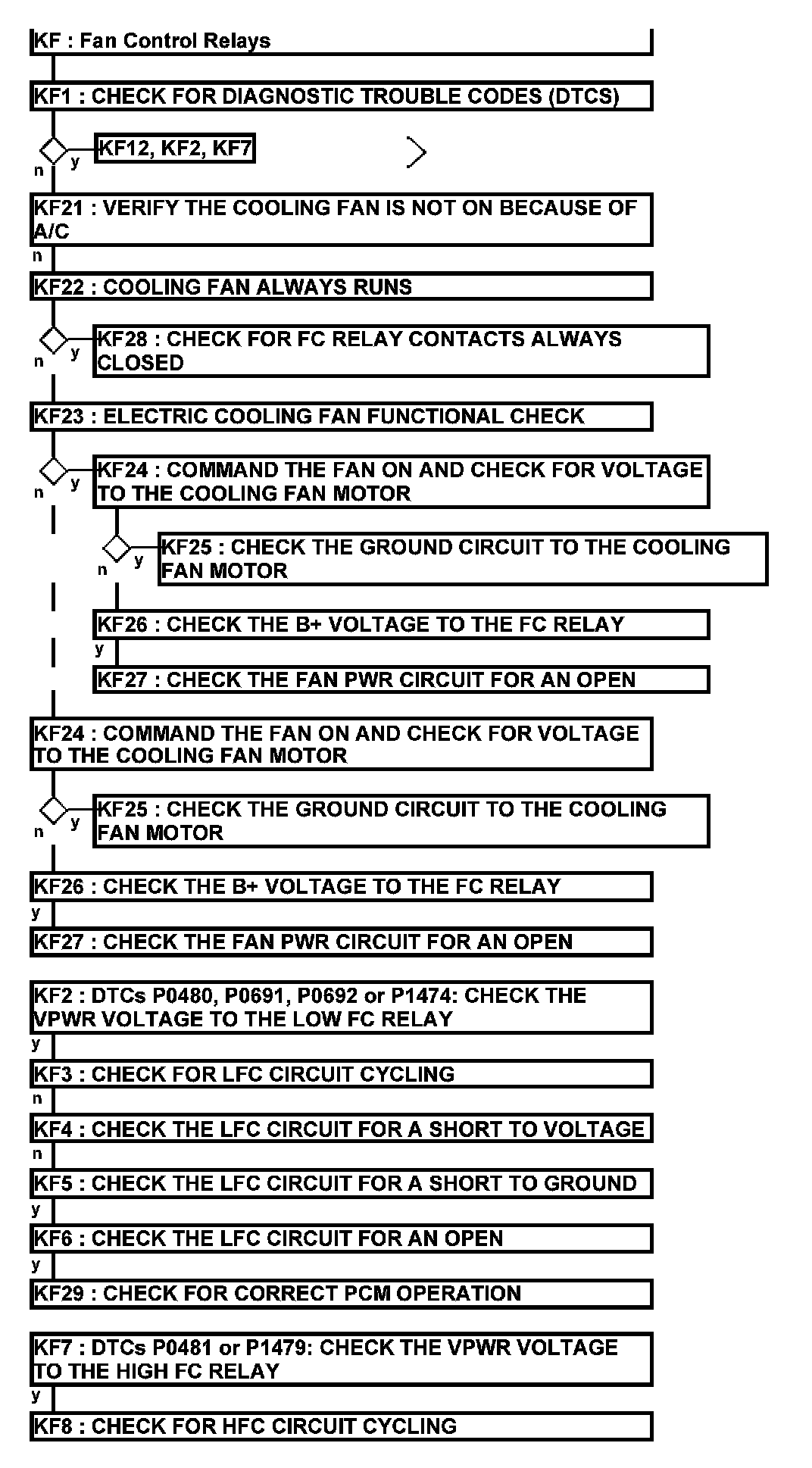

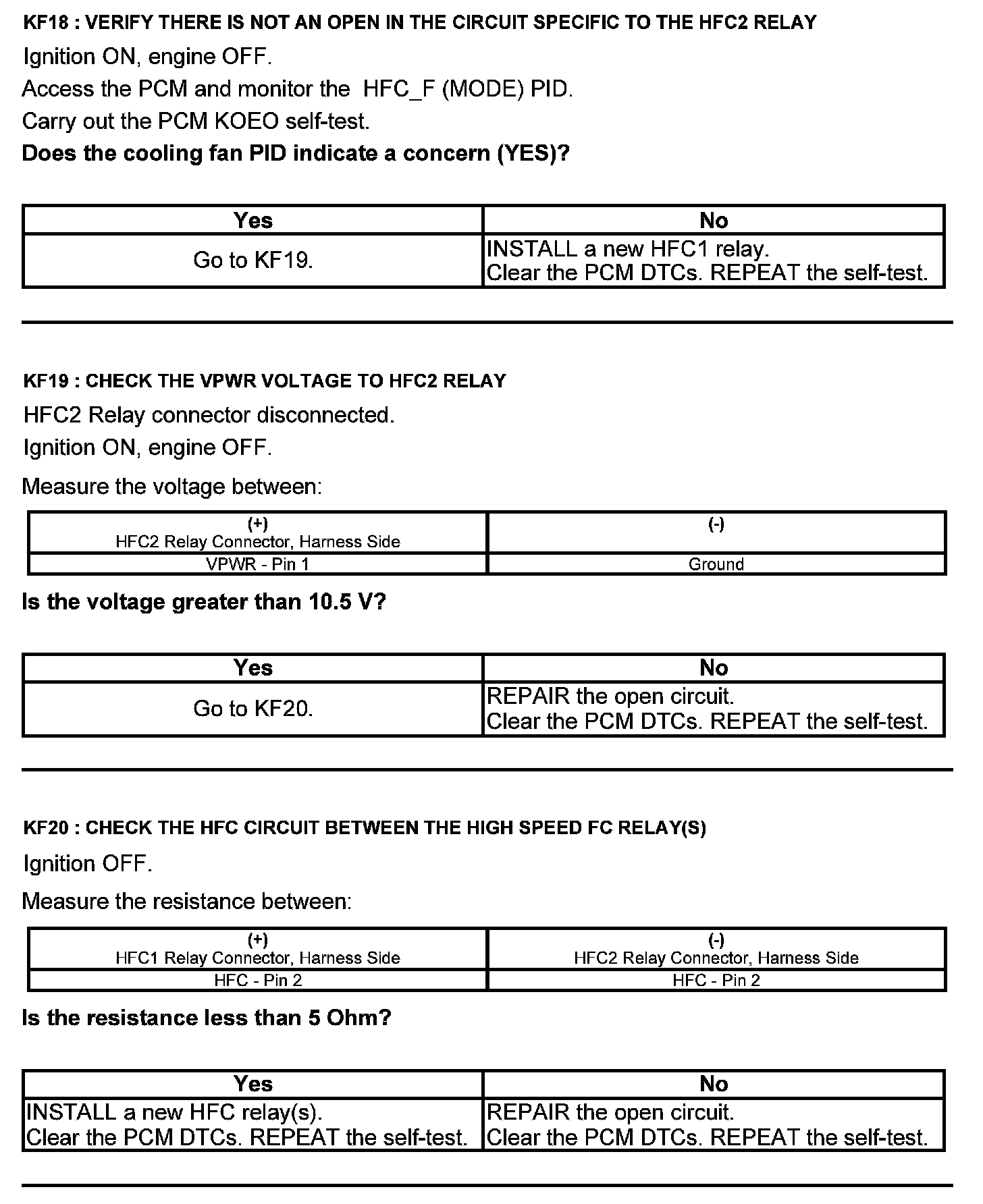

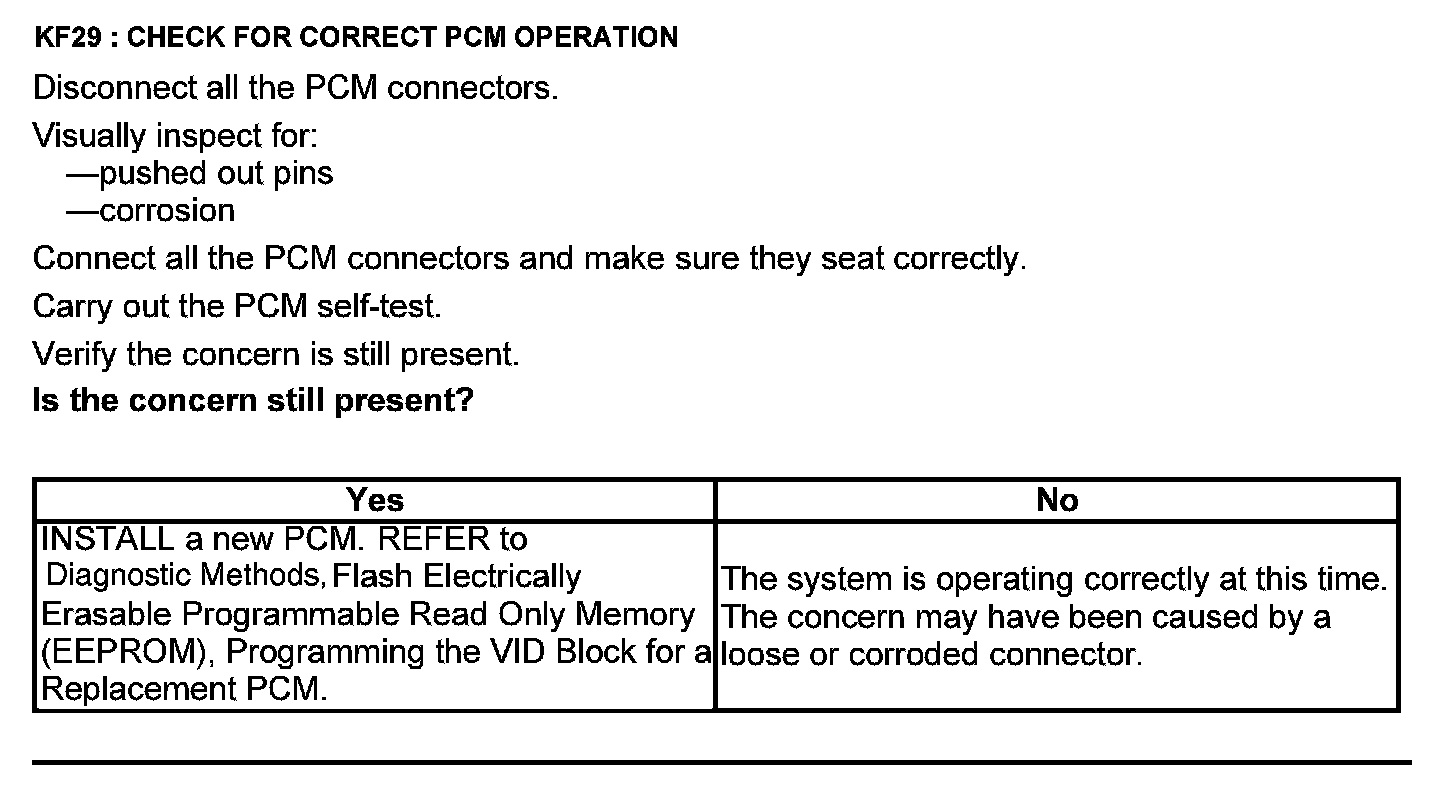

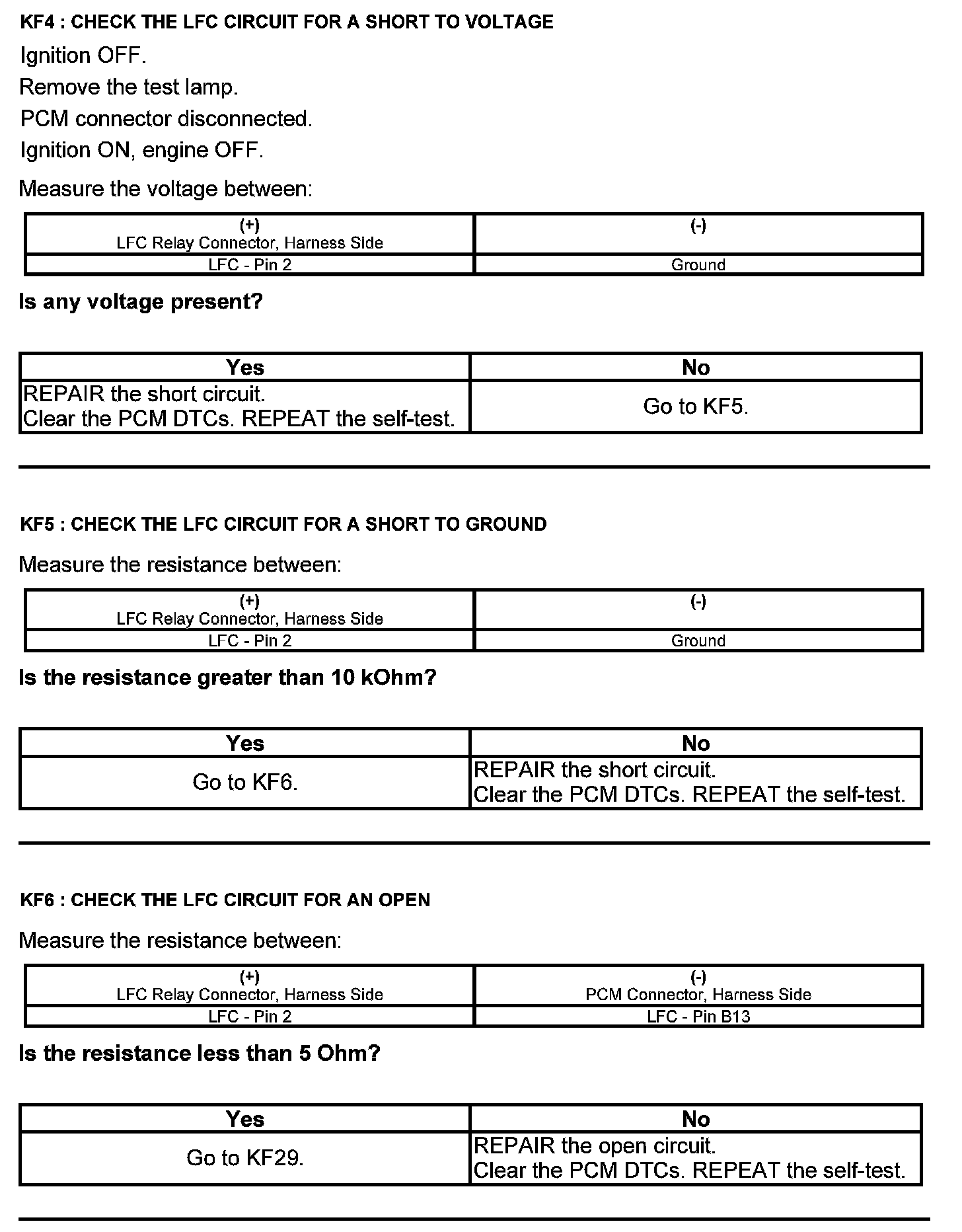

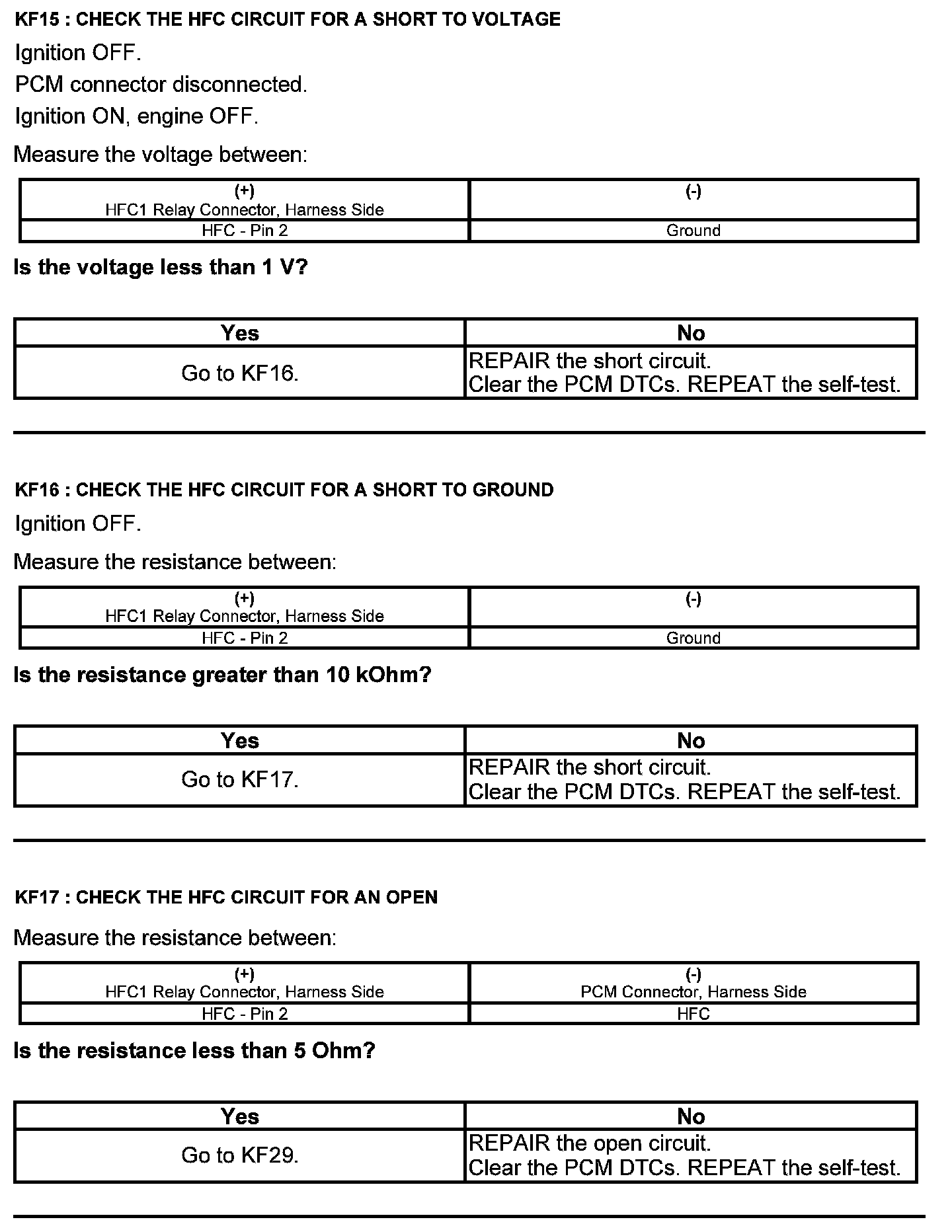

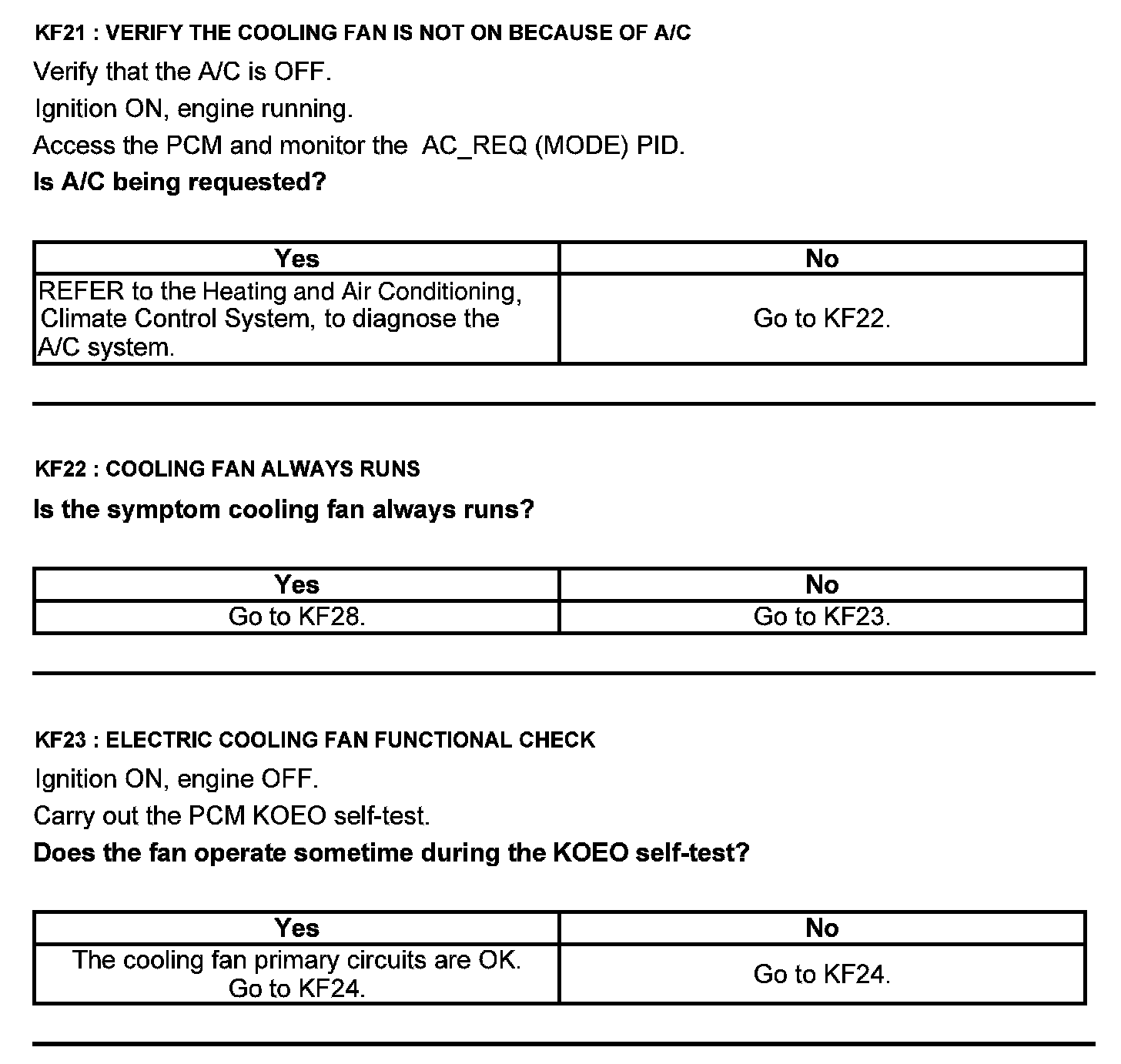

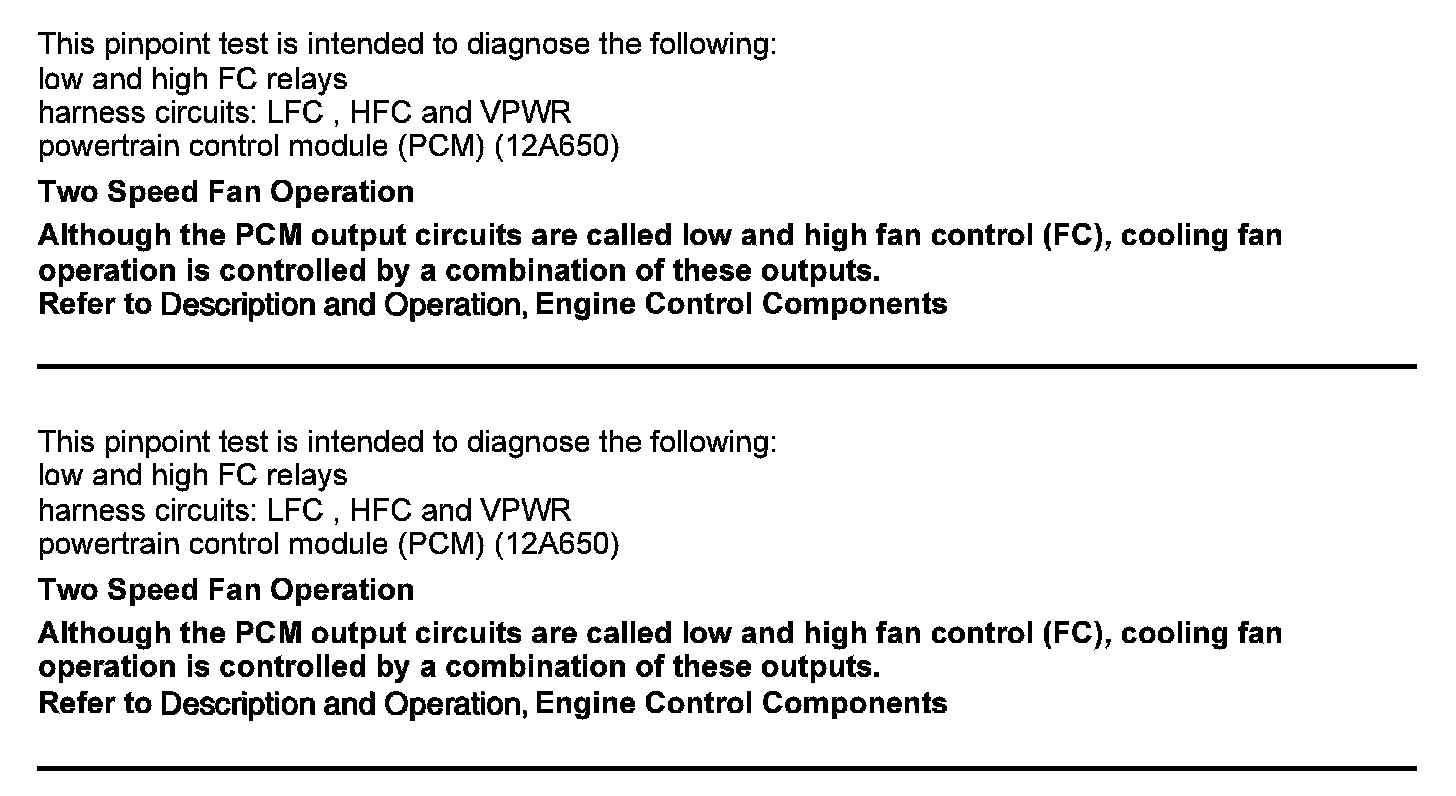

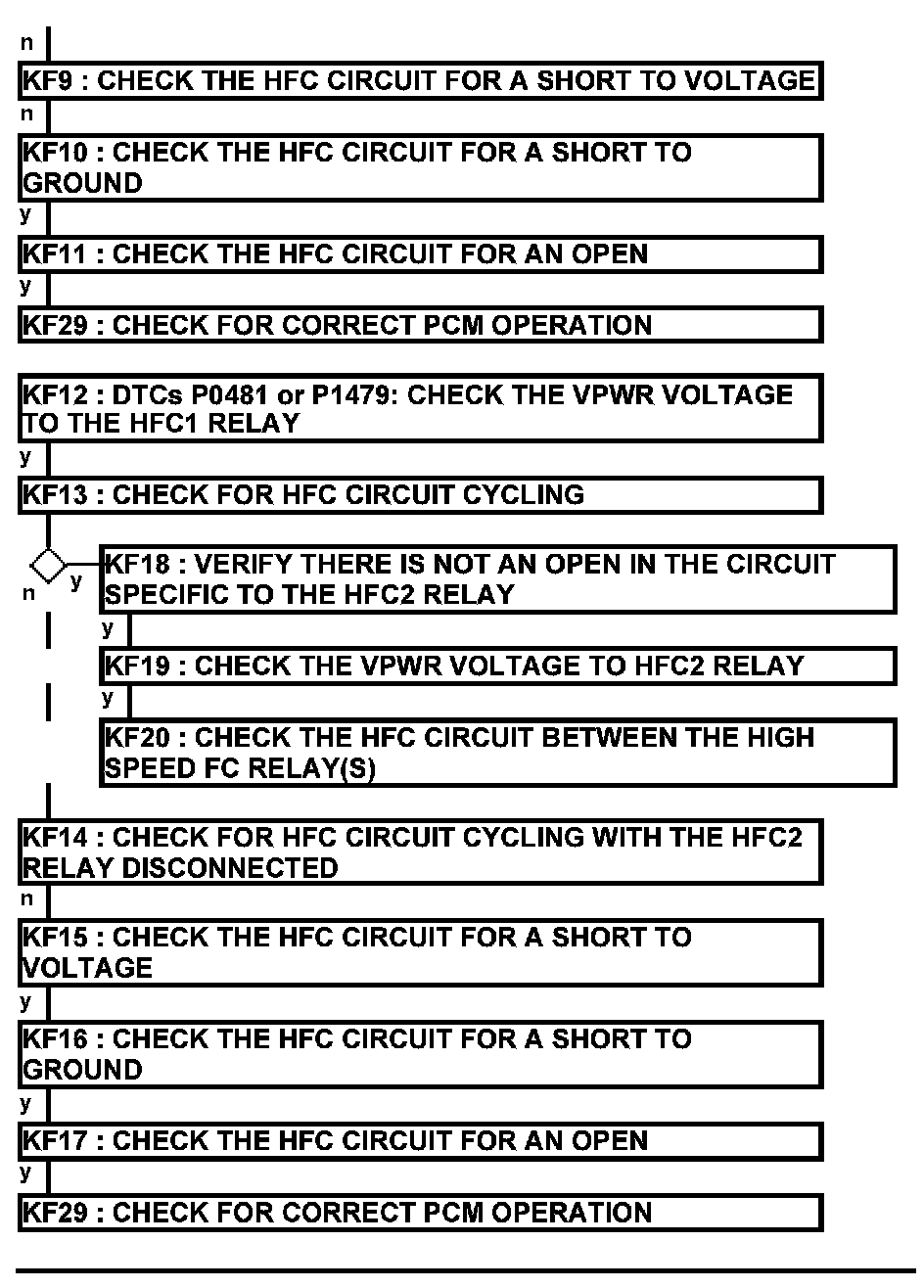

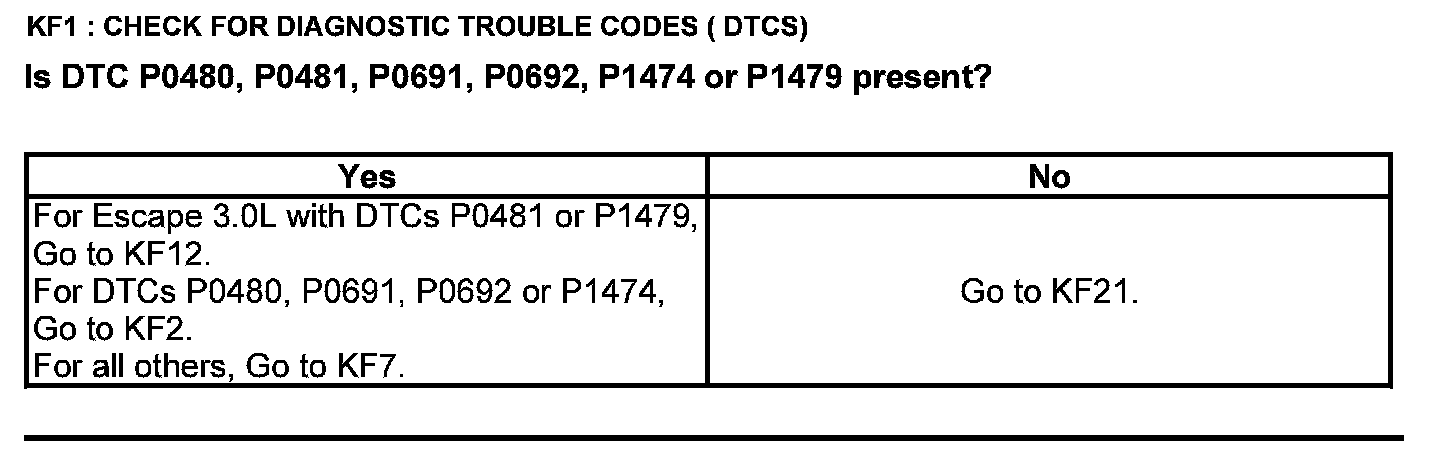

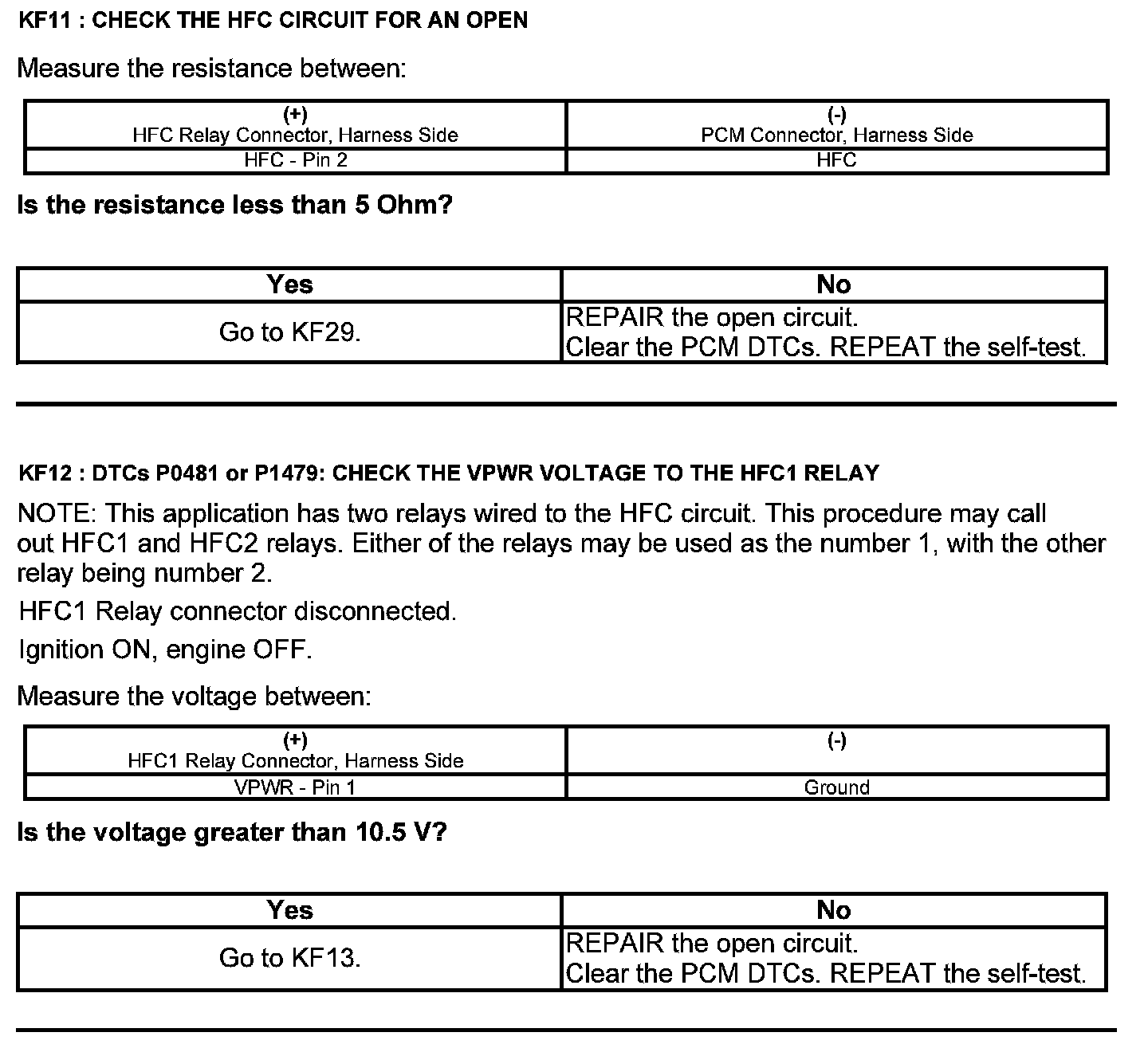

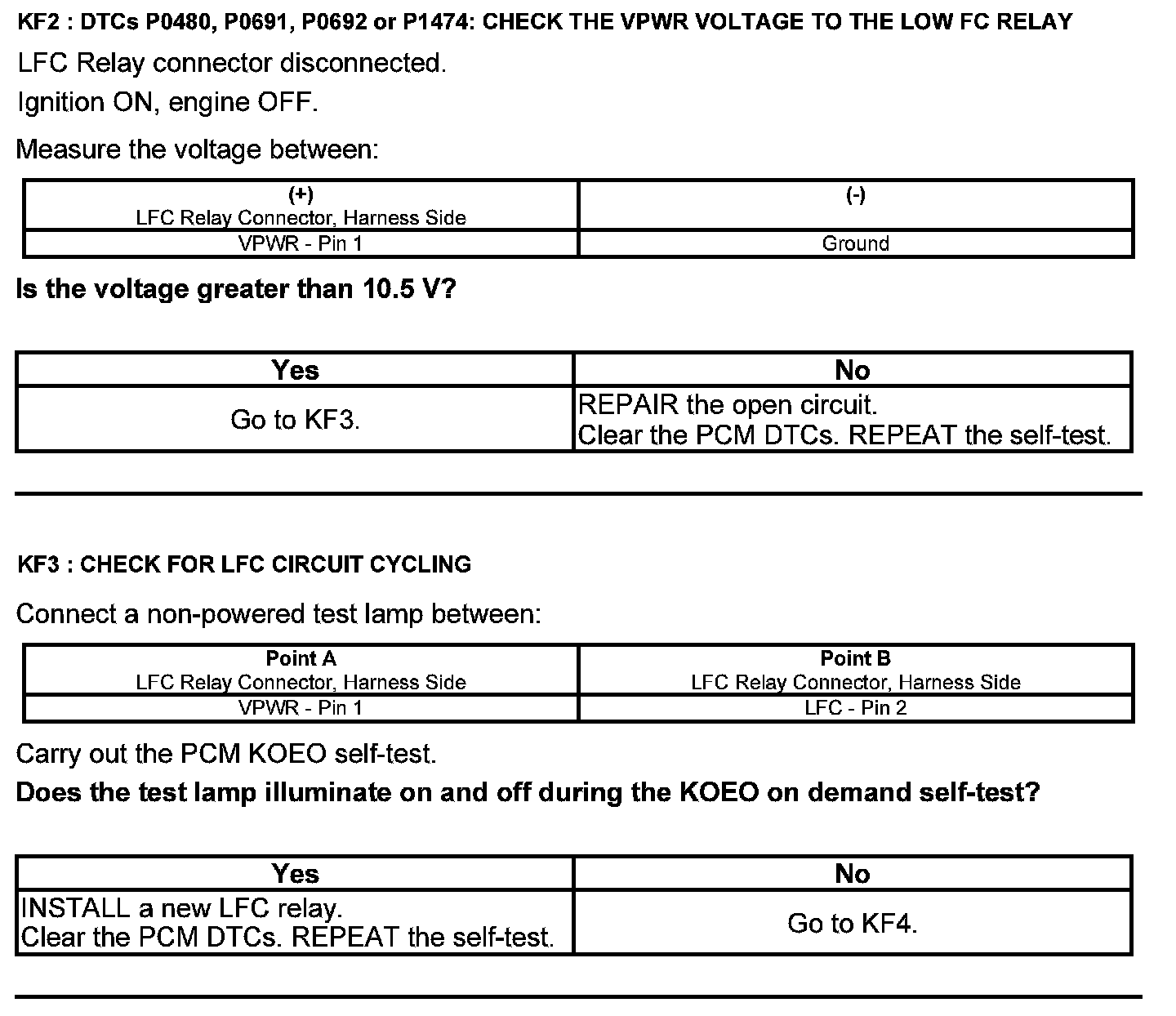

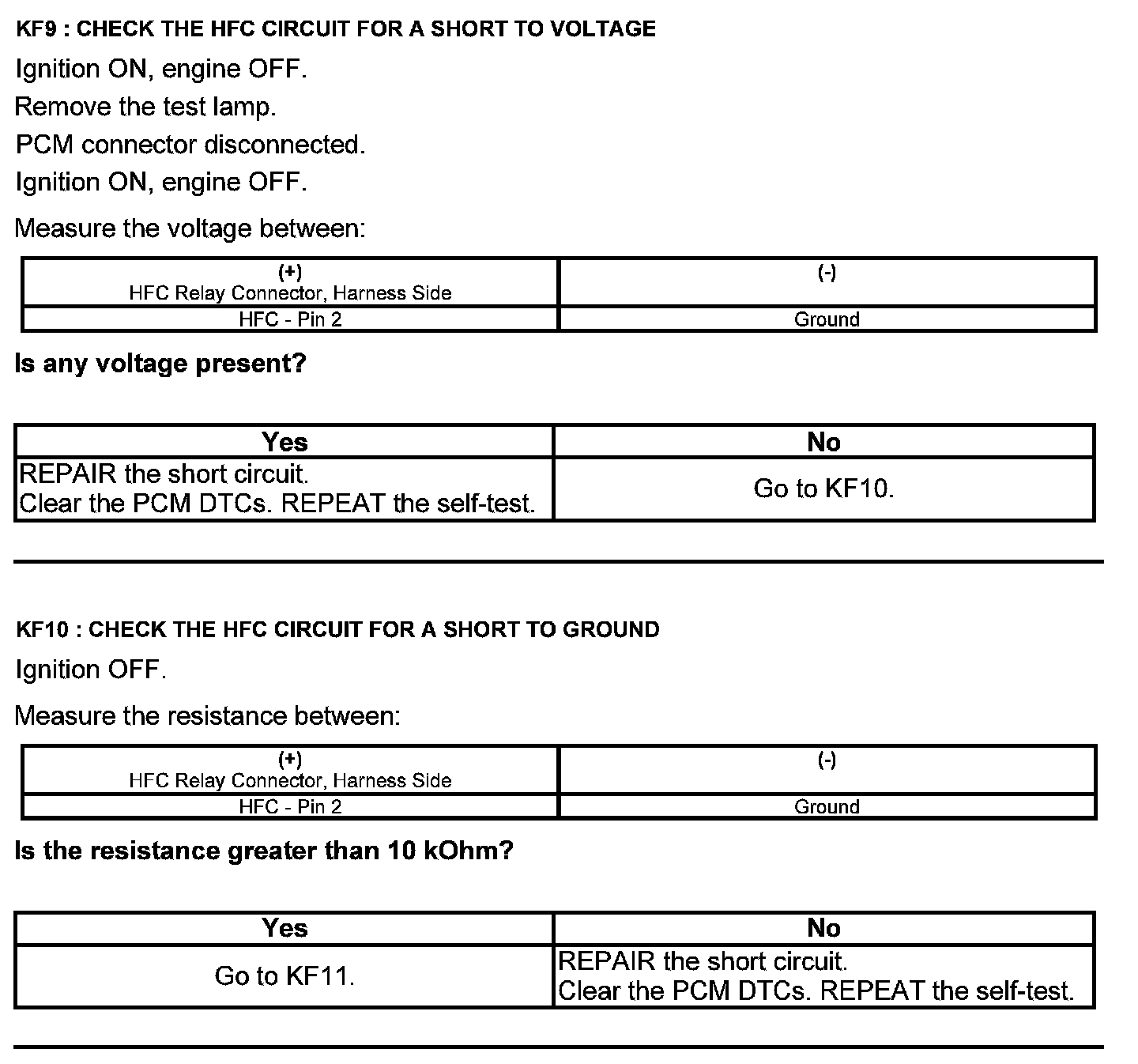

Test KF: Fan Control Relays

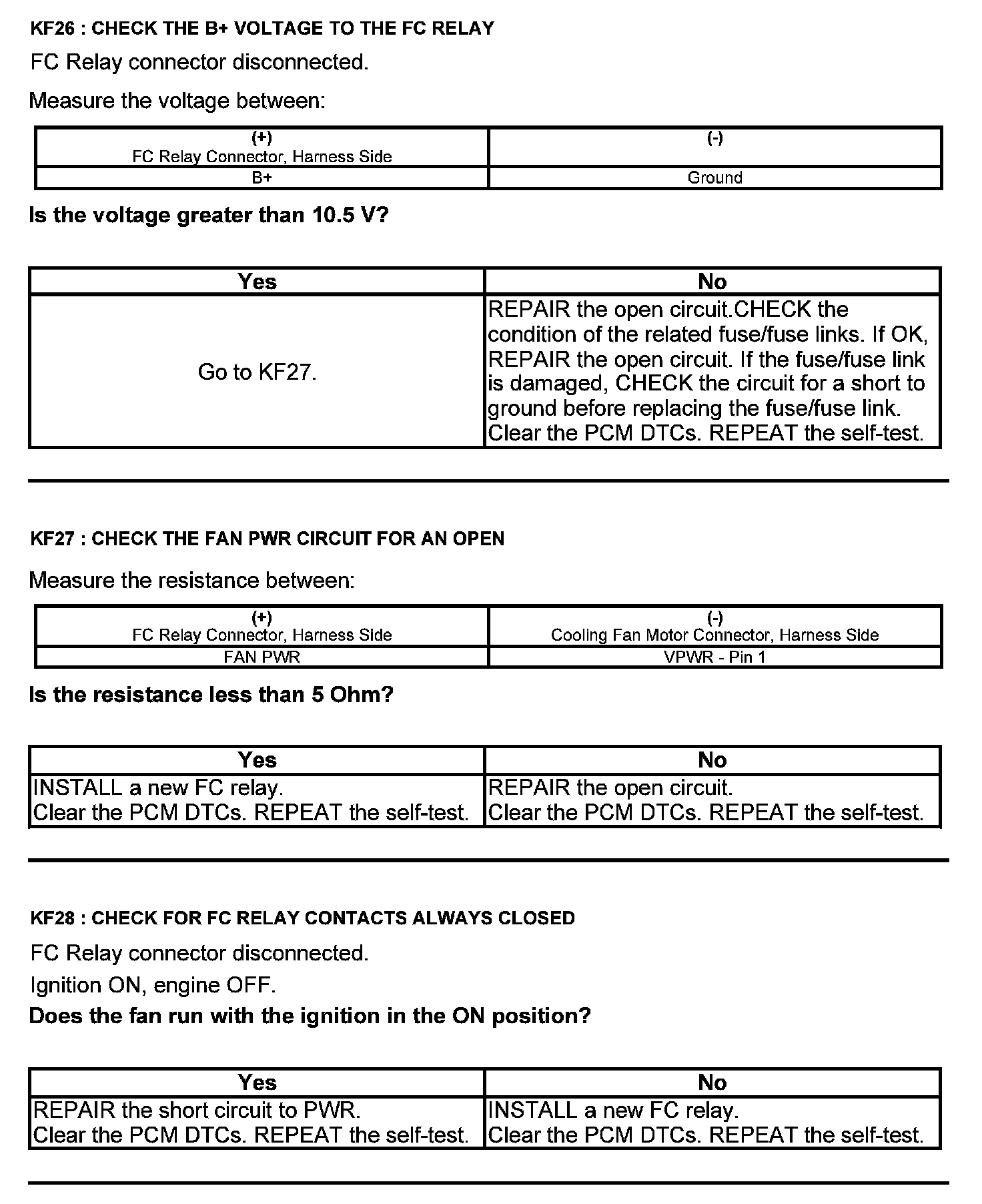

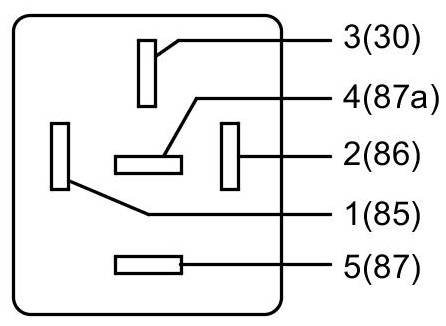

Fan Control Relays

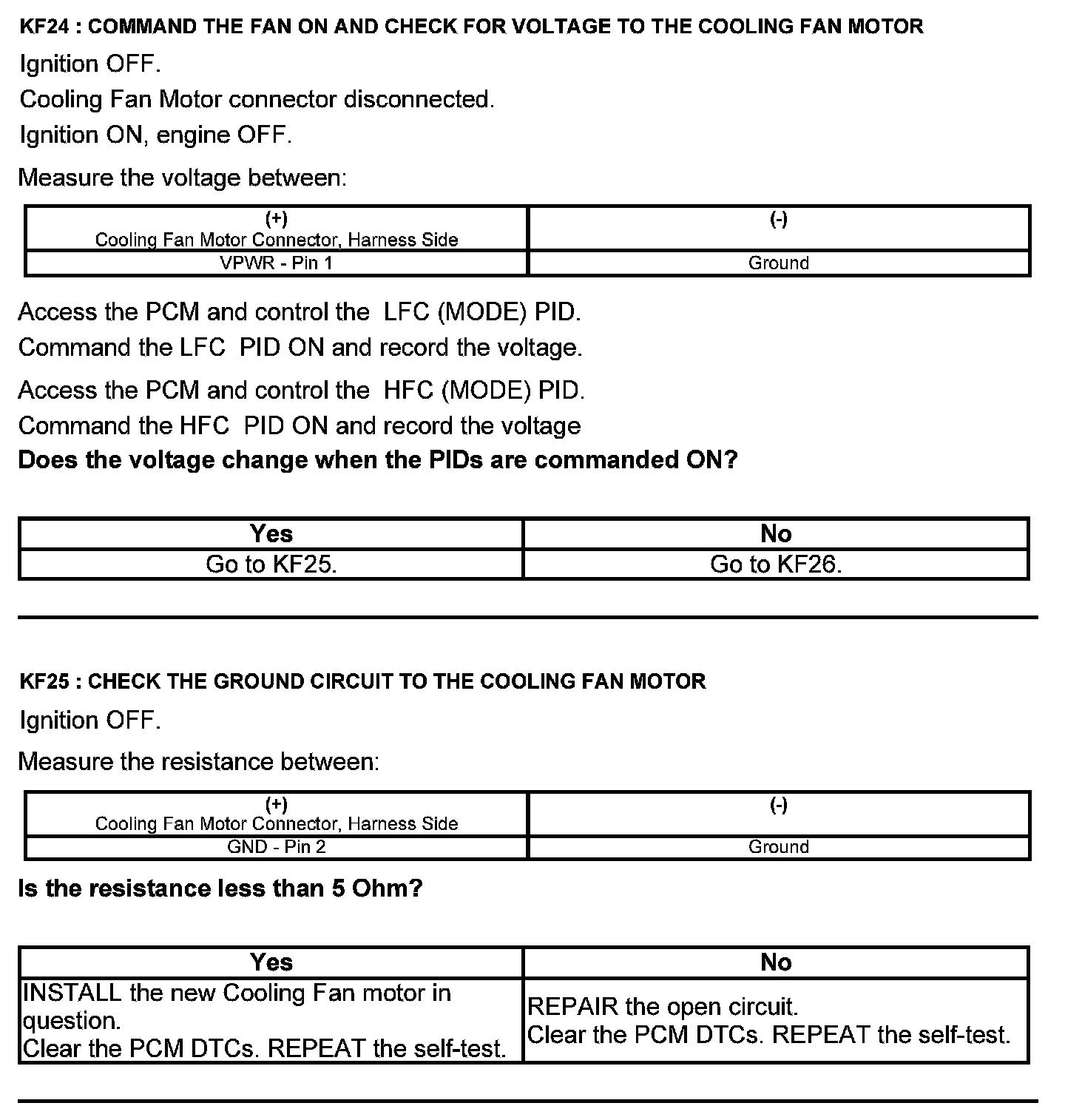

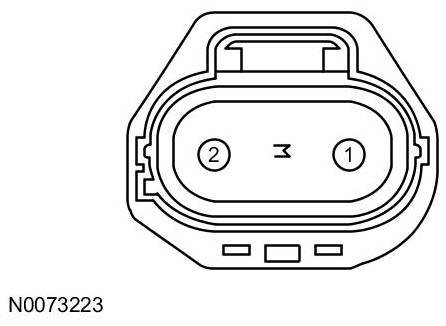

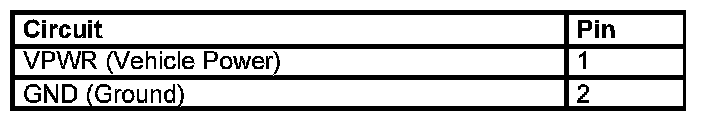

Cooling Fan Motor Connector






Harness Side

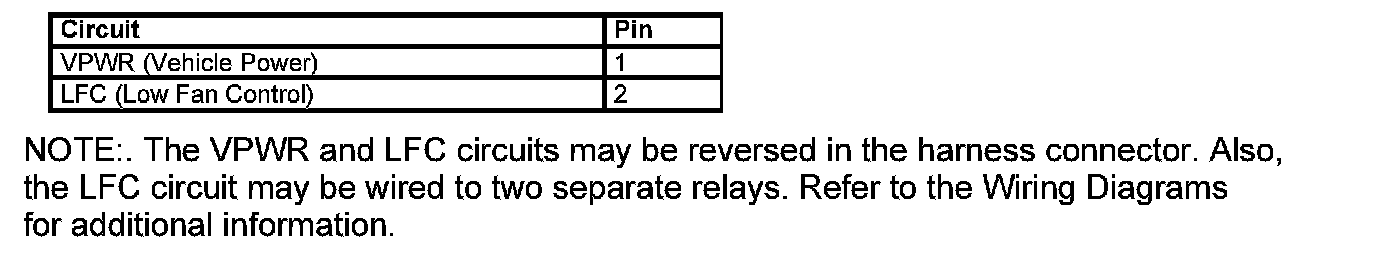

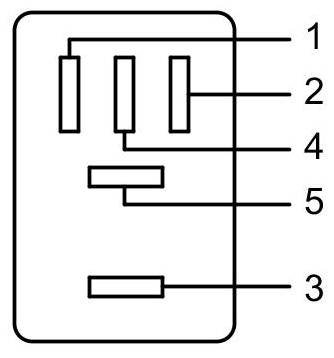

Low Fan Control (LFC) Relay Connector






Harness Side






Component side

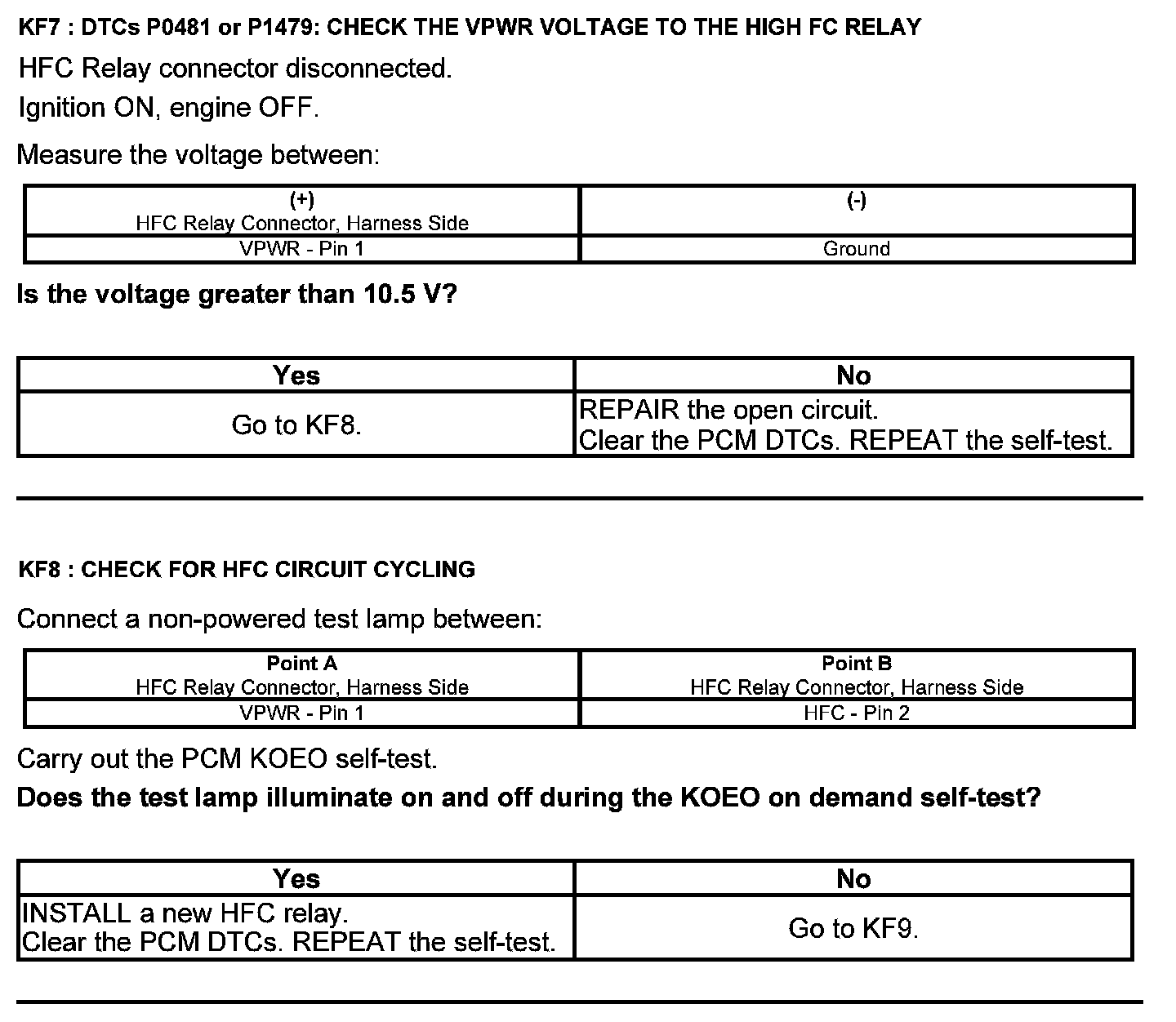

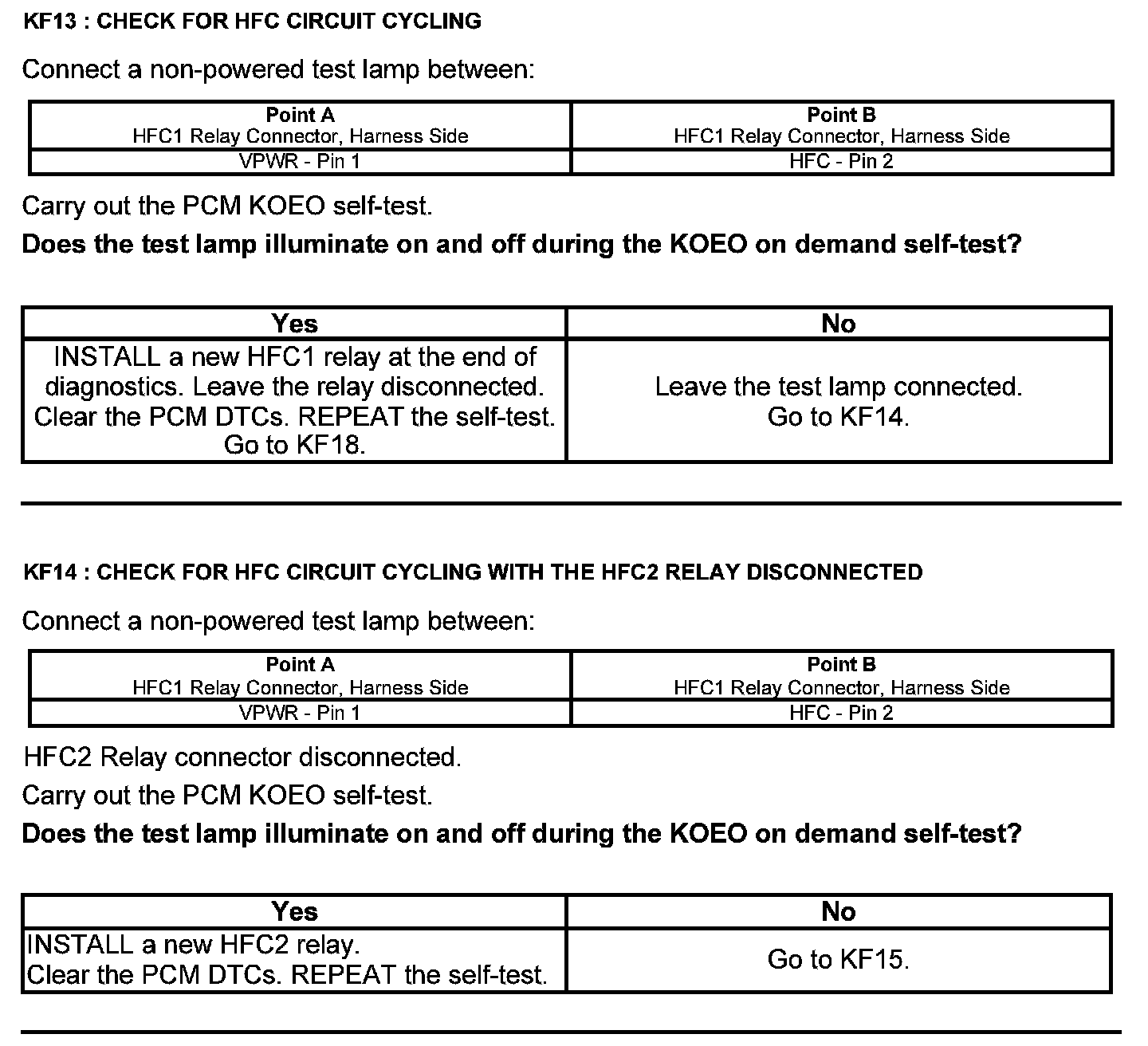

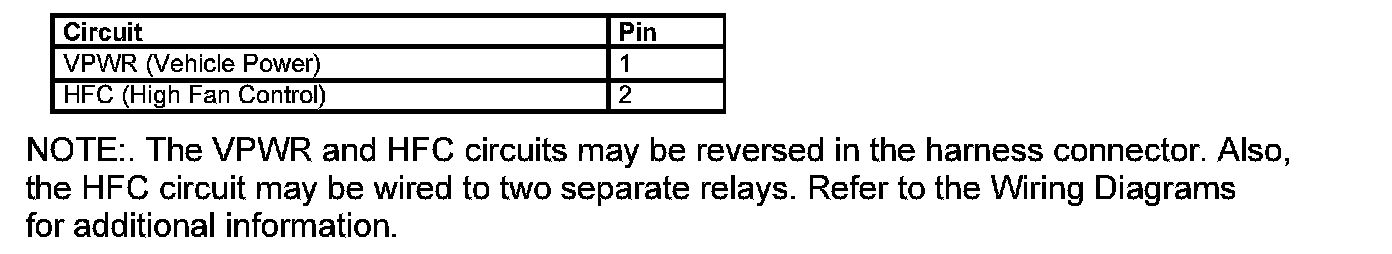

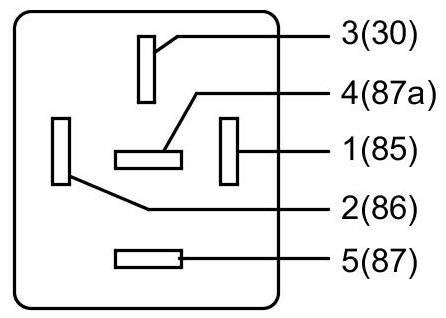

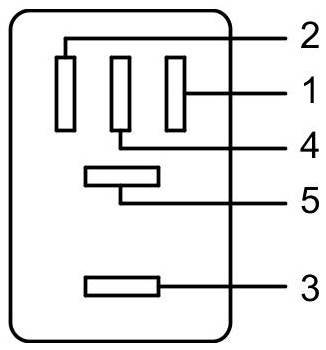

High Fan Control (HFC) Relay Connector





Harness Side






Component side

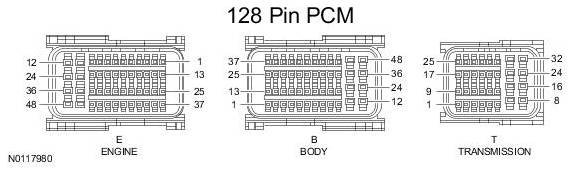

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
