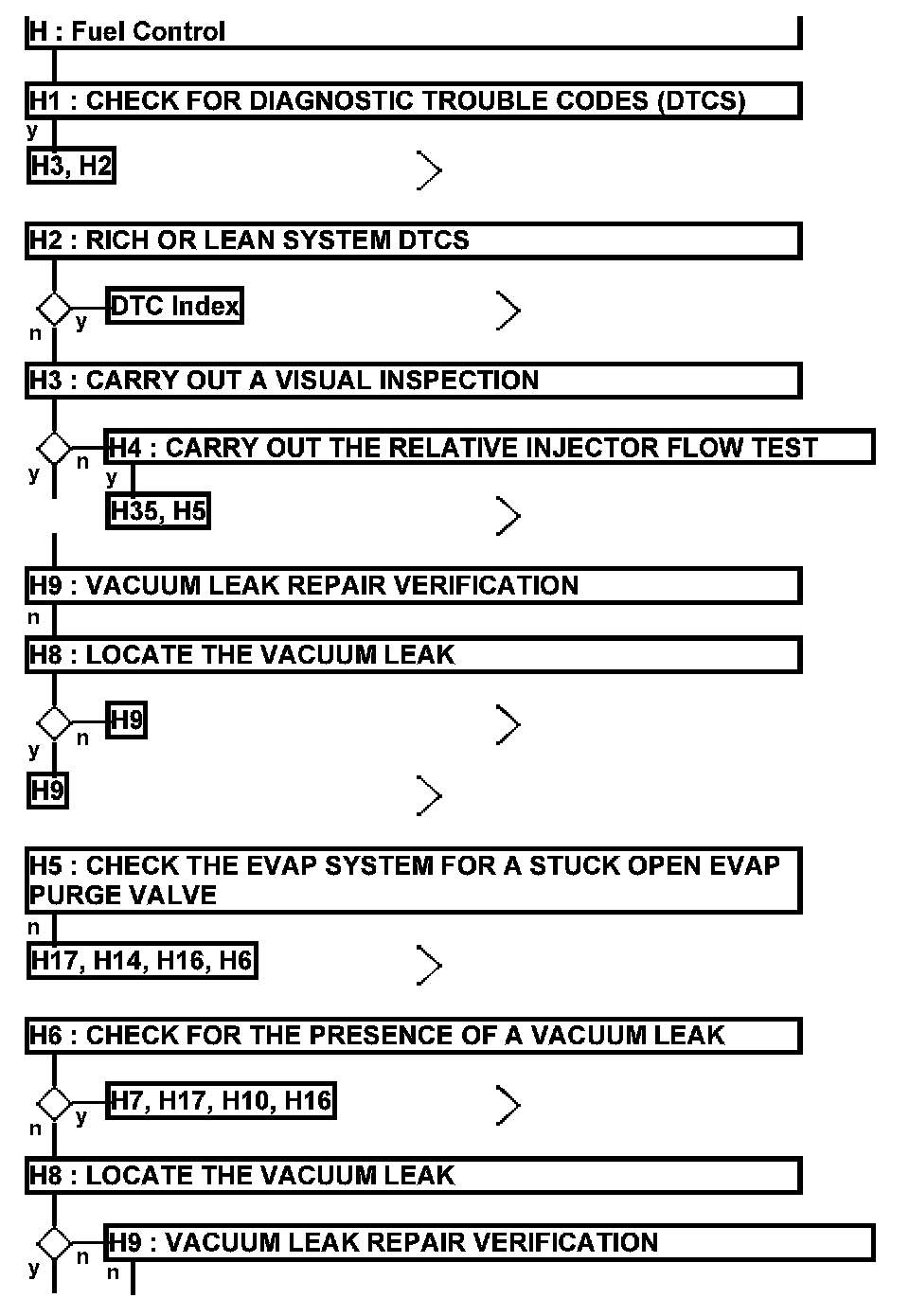

Test H: Fuel Control



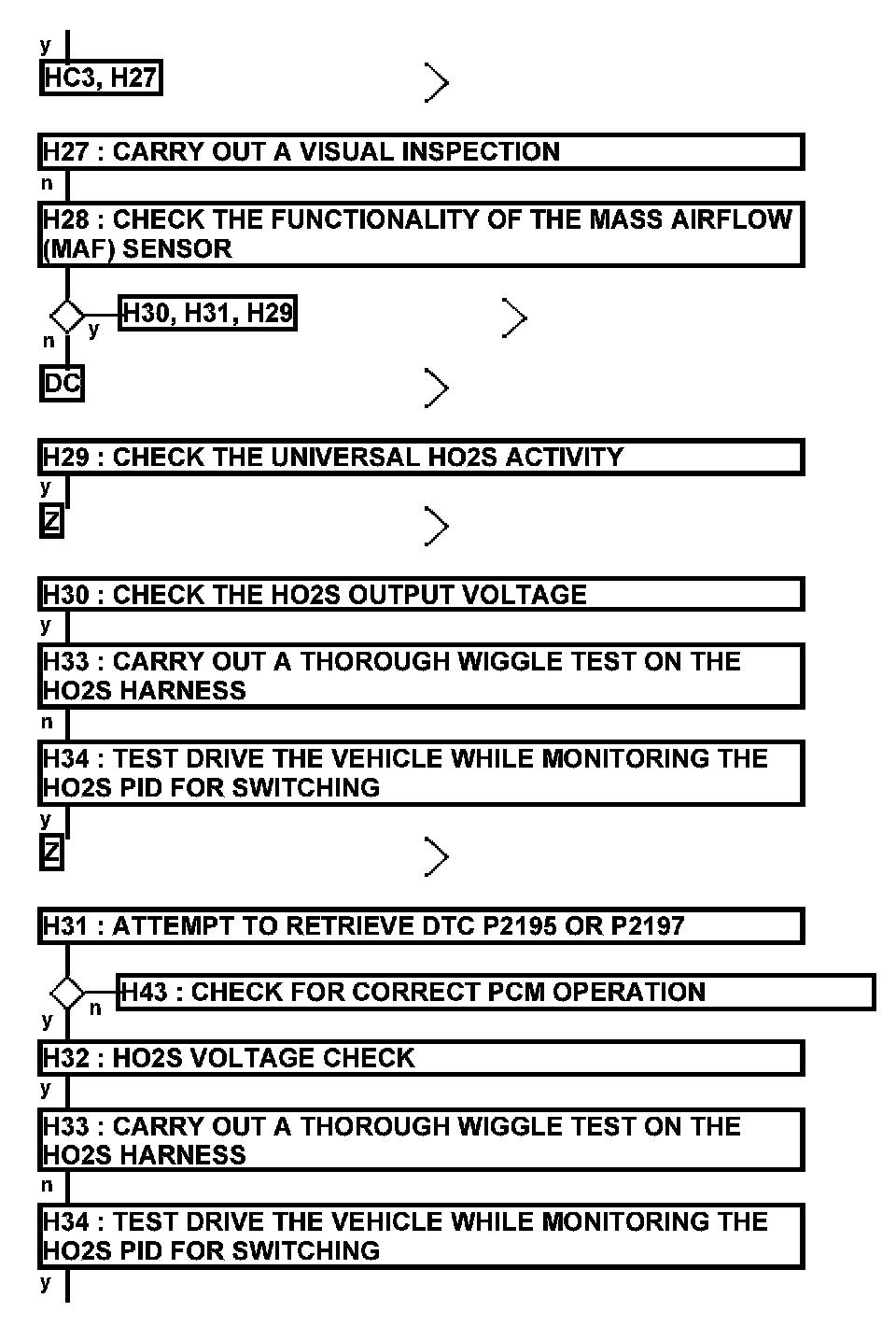

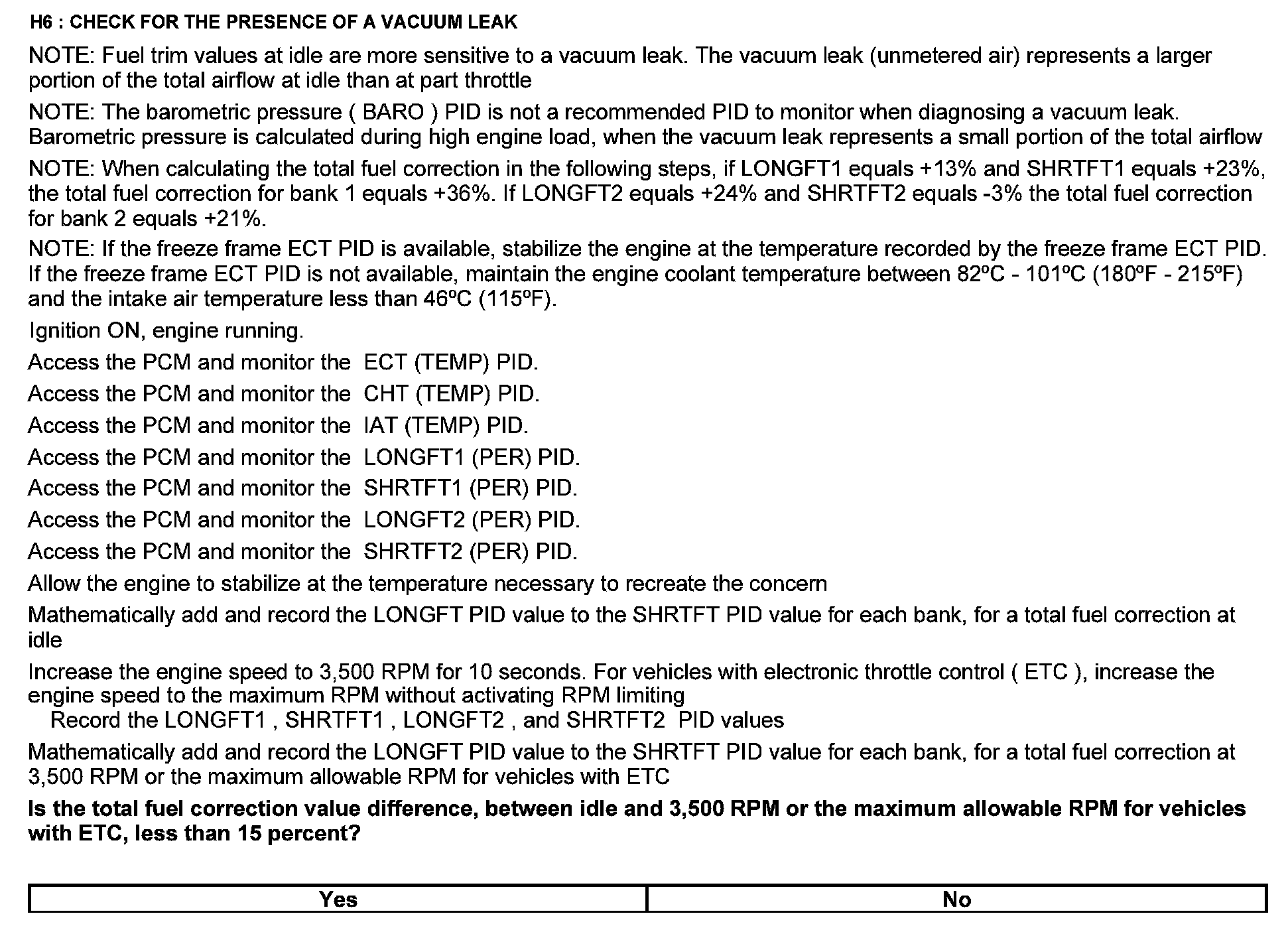

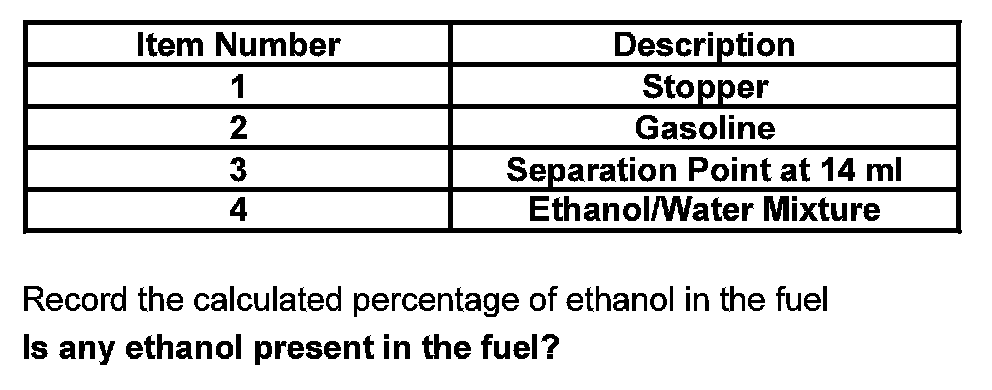

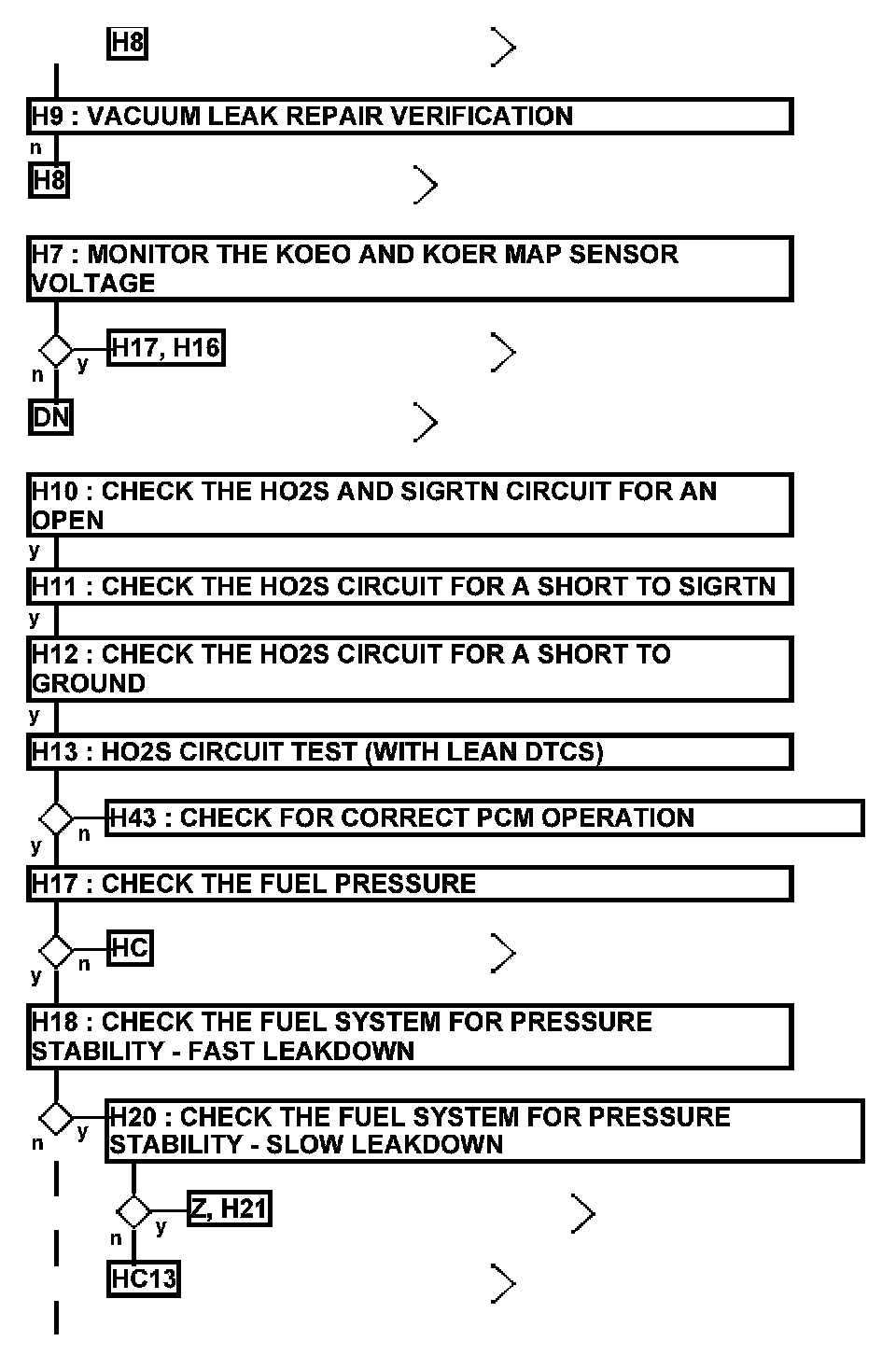

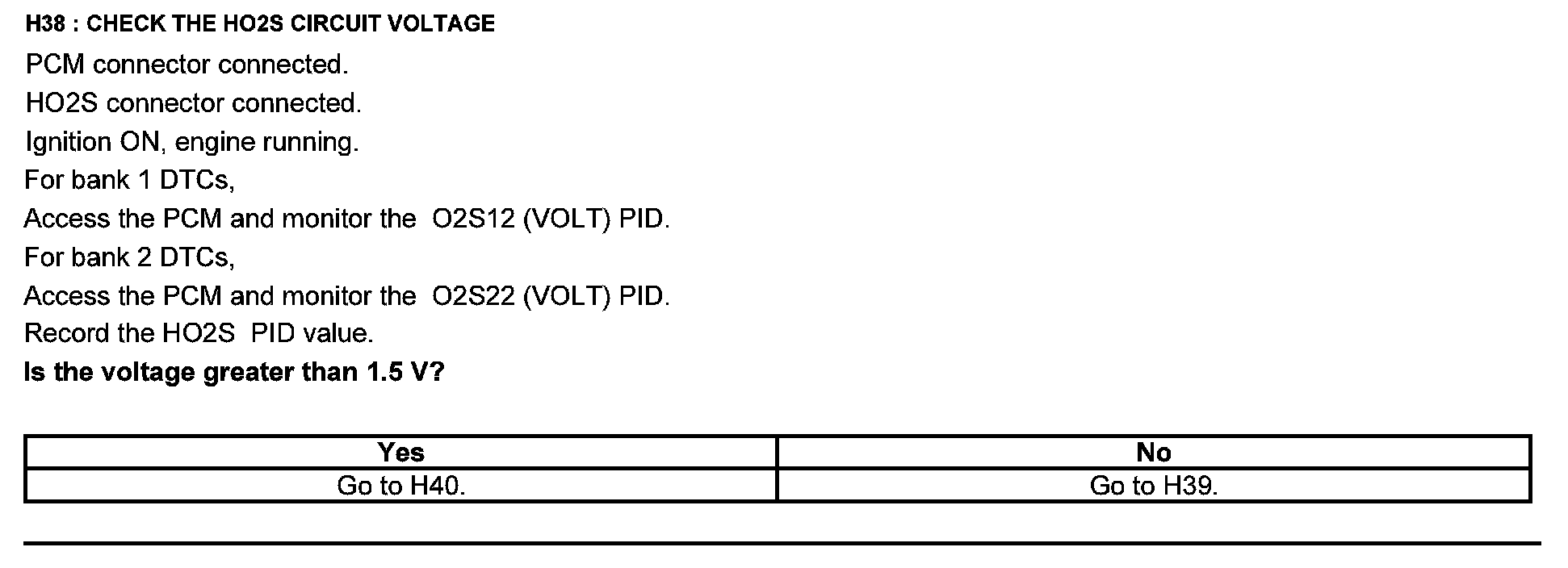

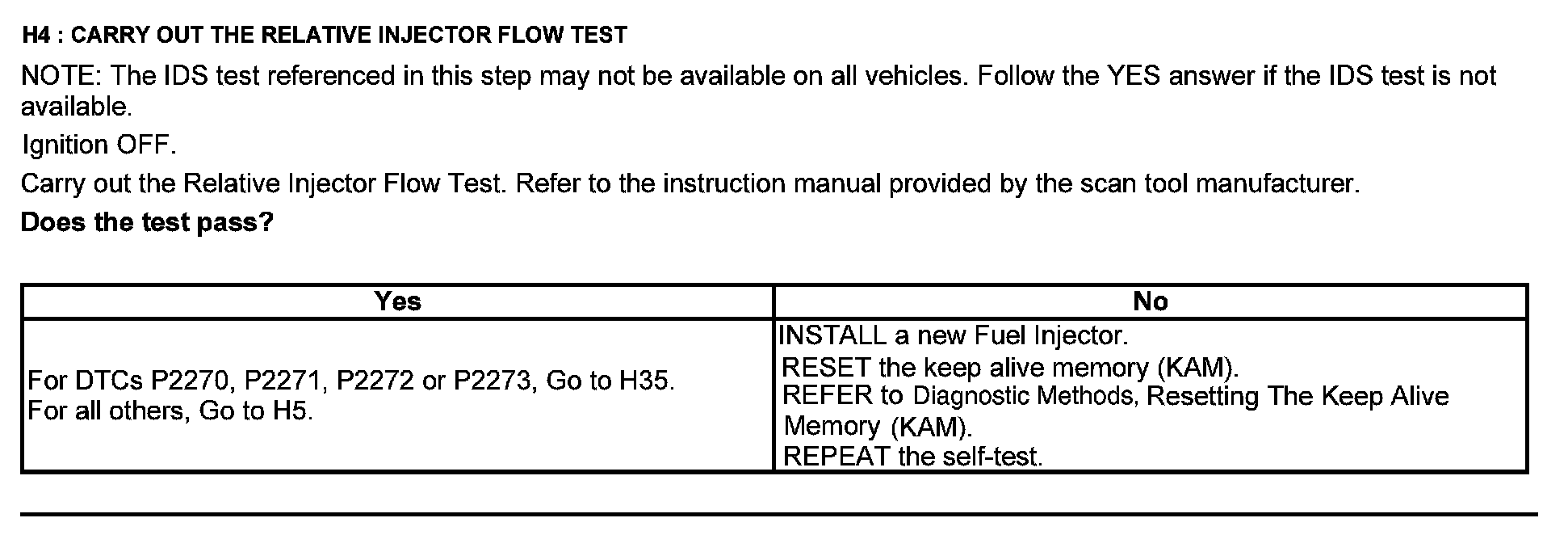

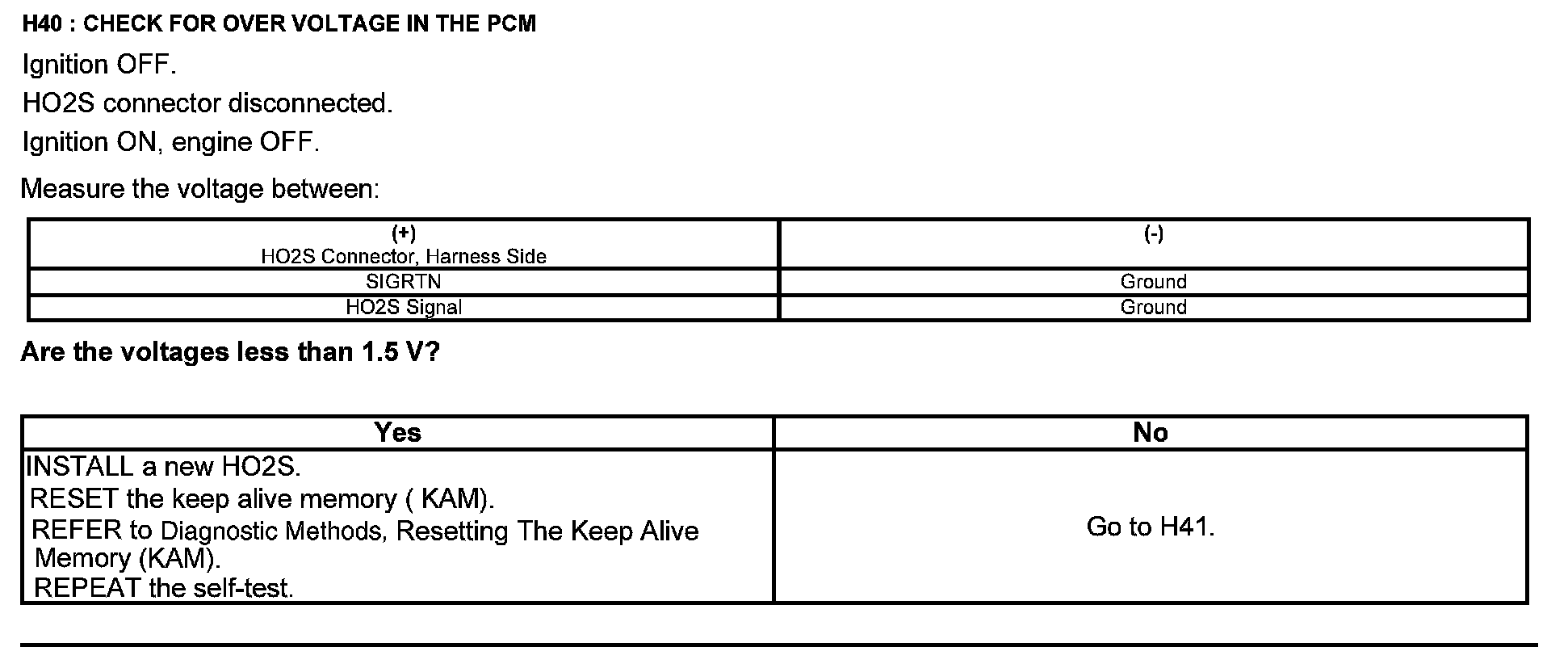

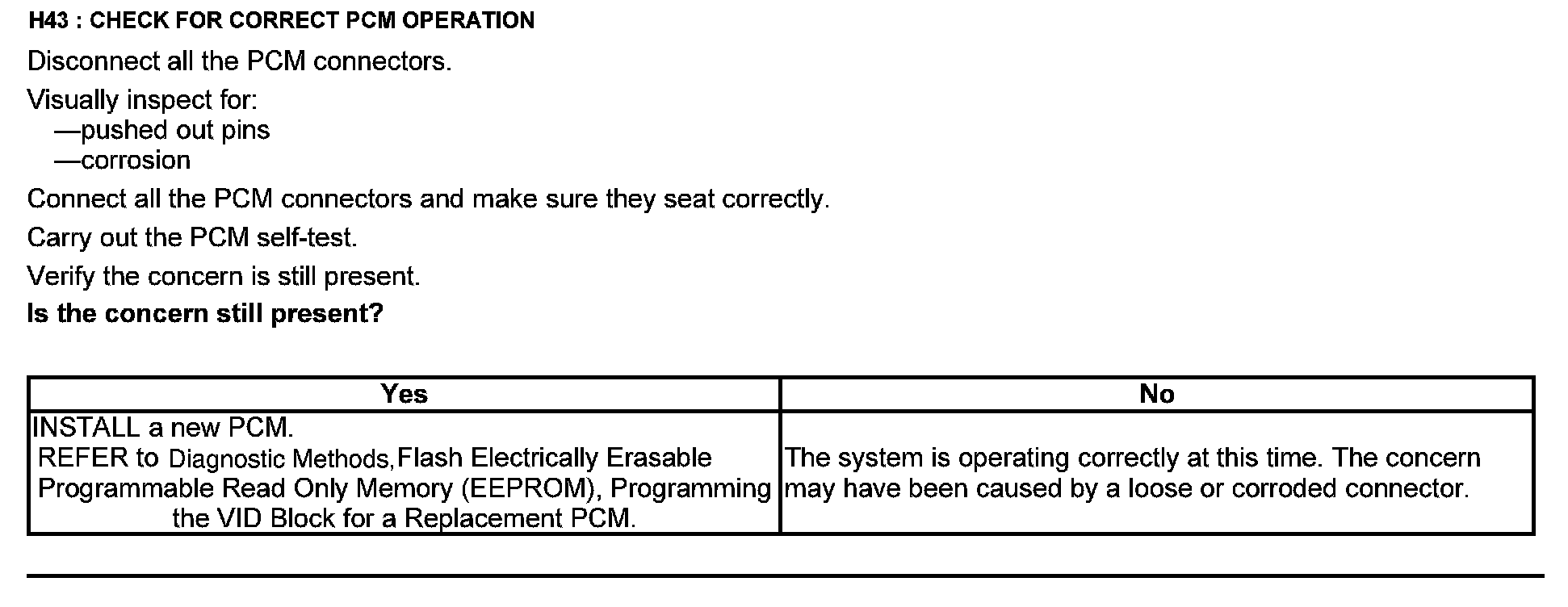

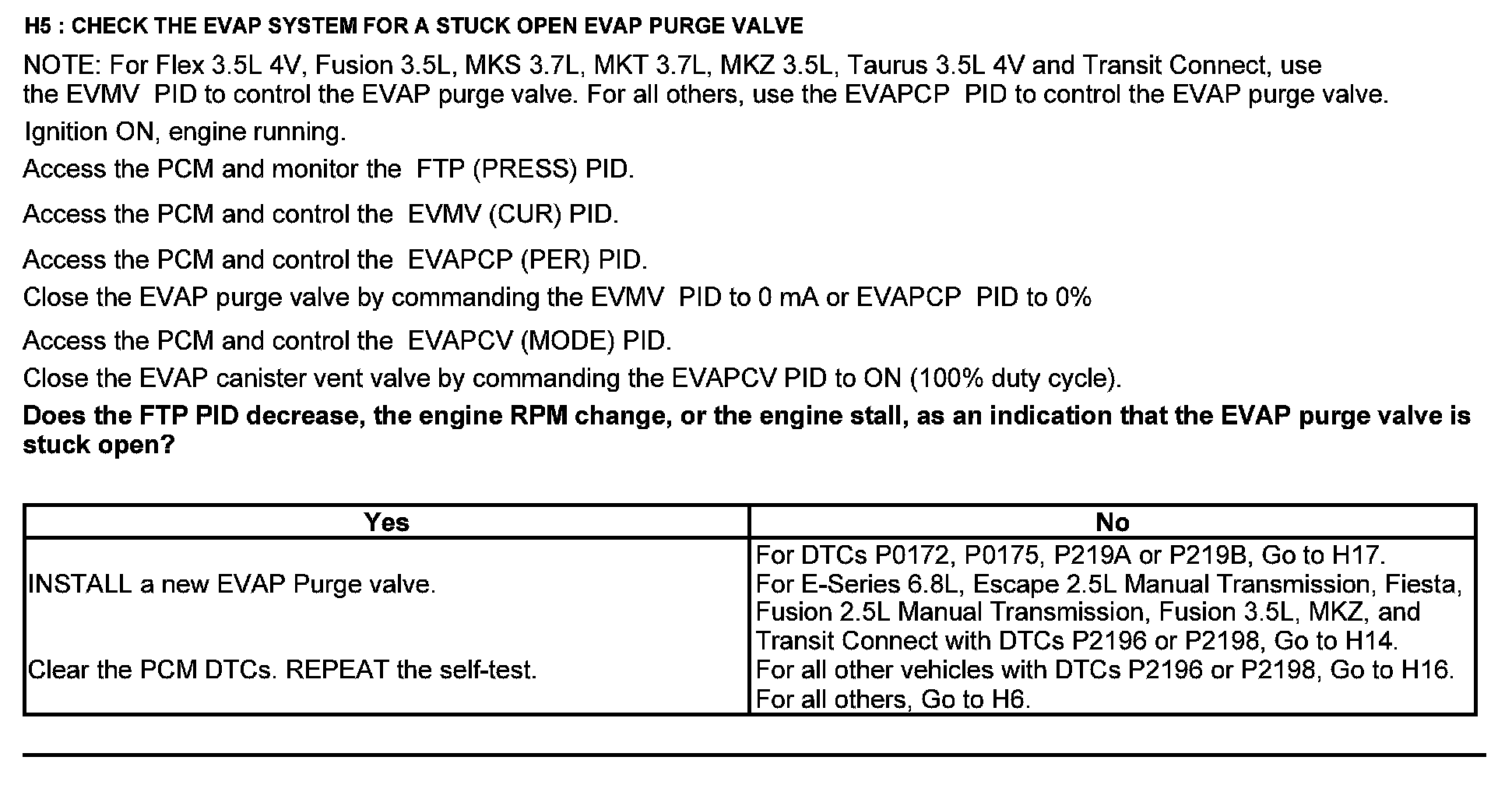

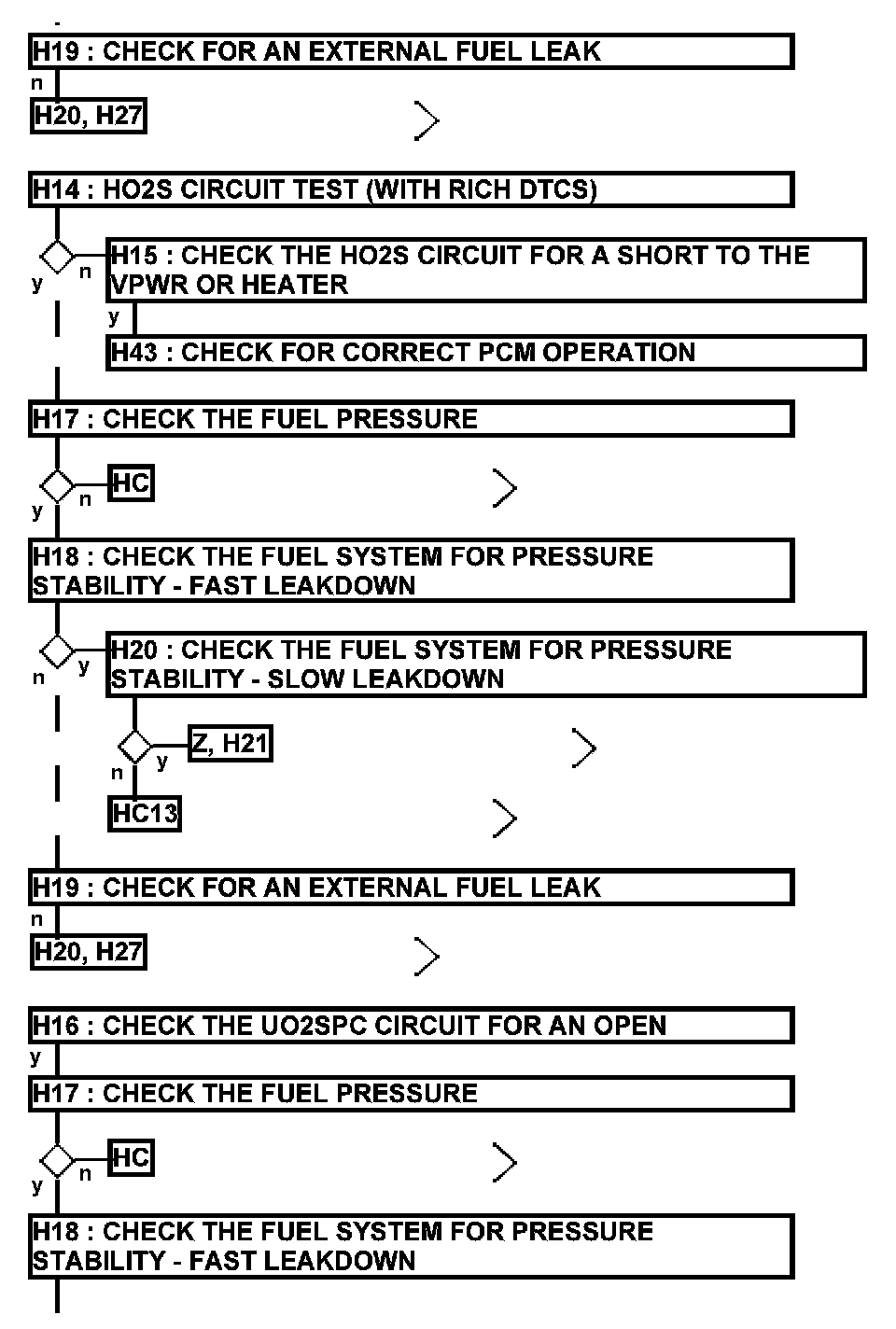

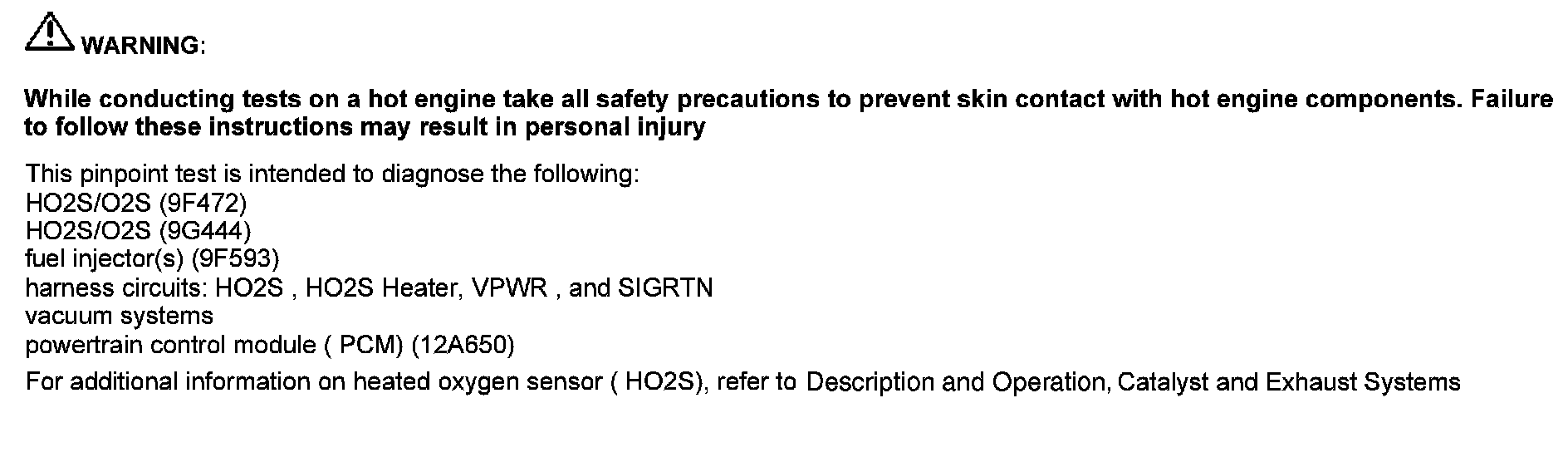

Fuel Control

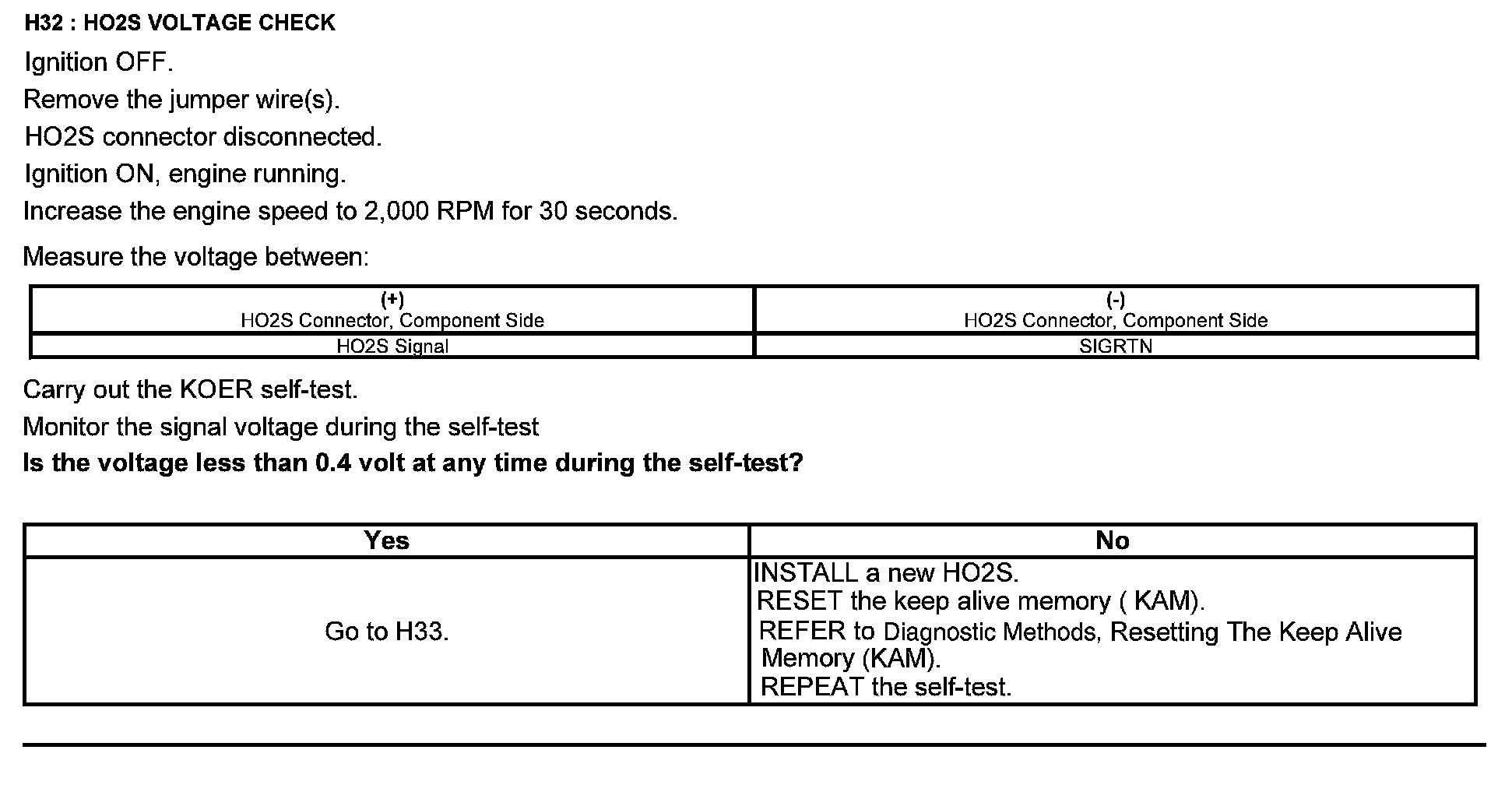

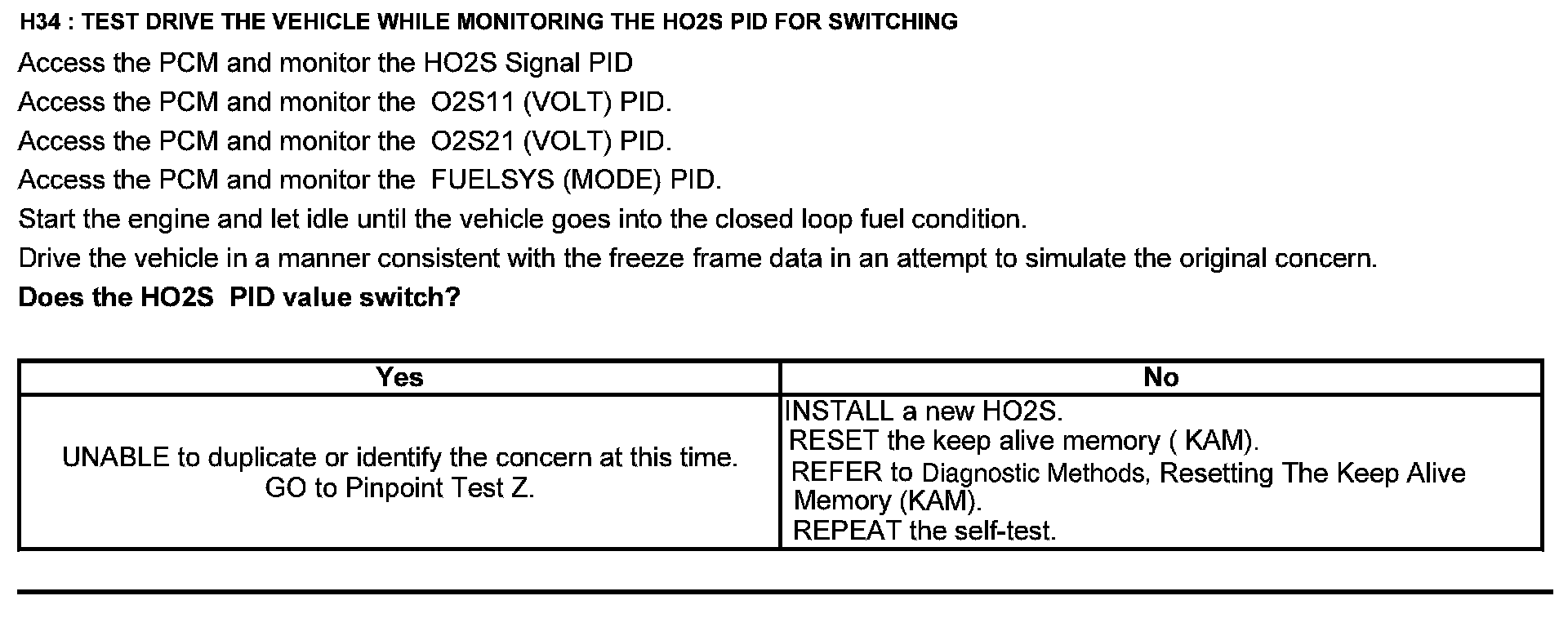

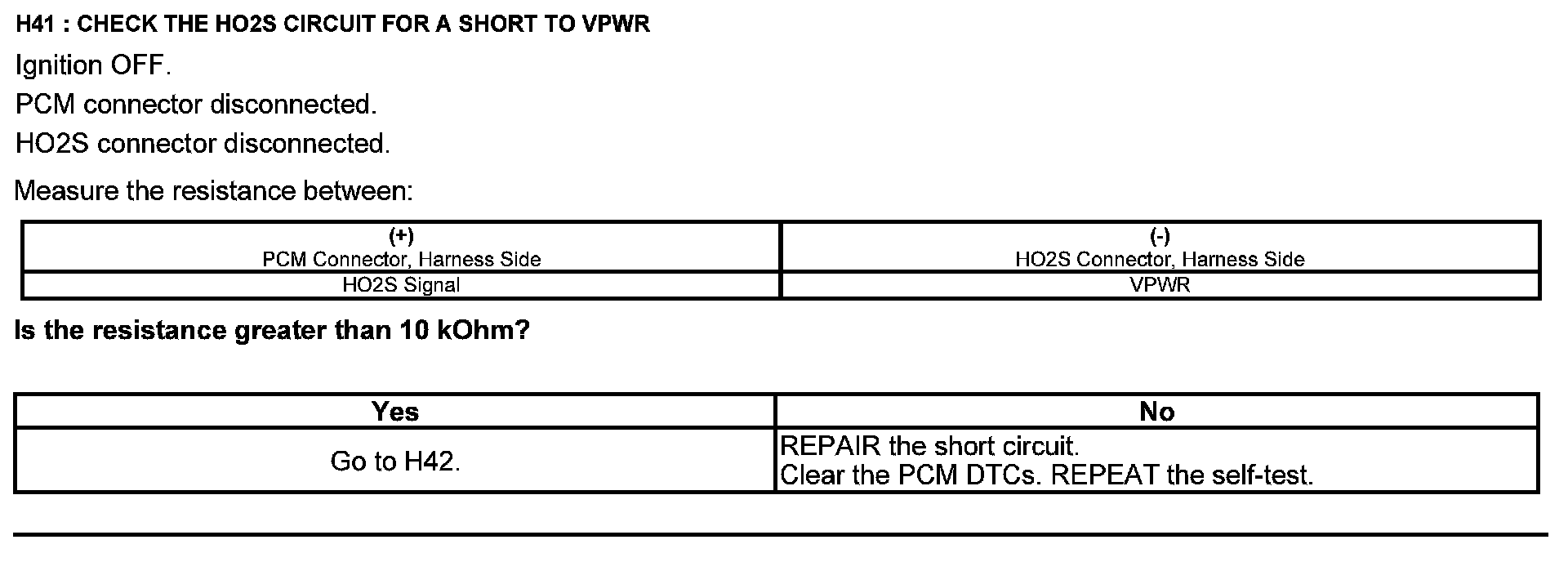

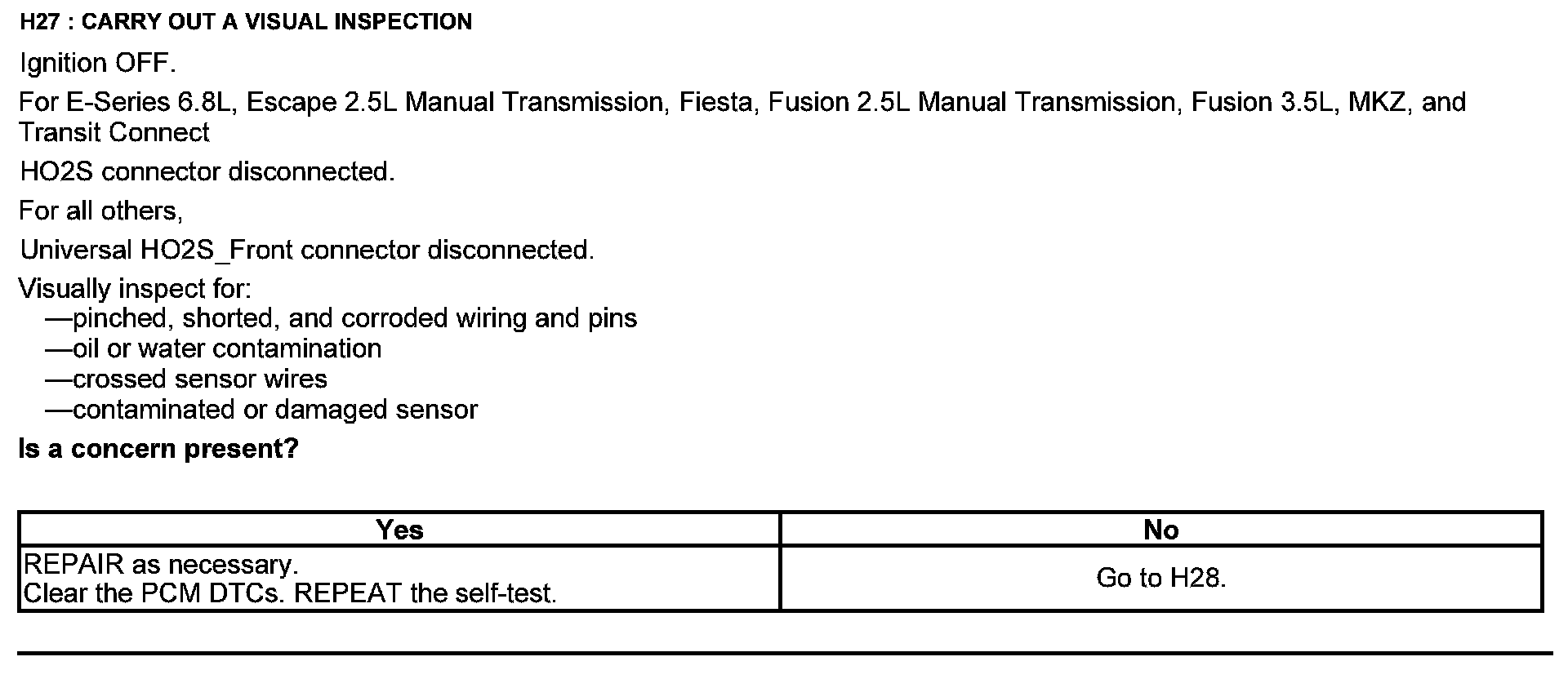

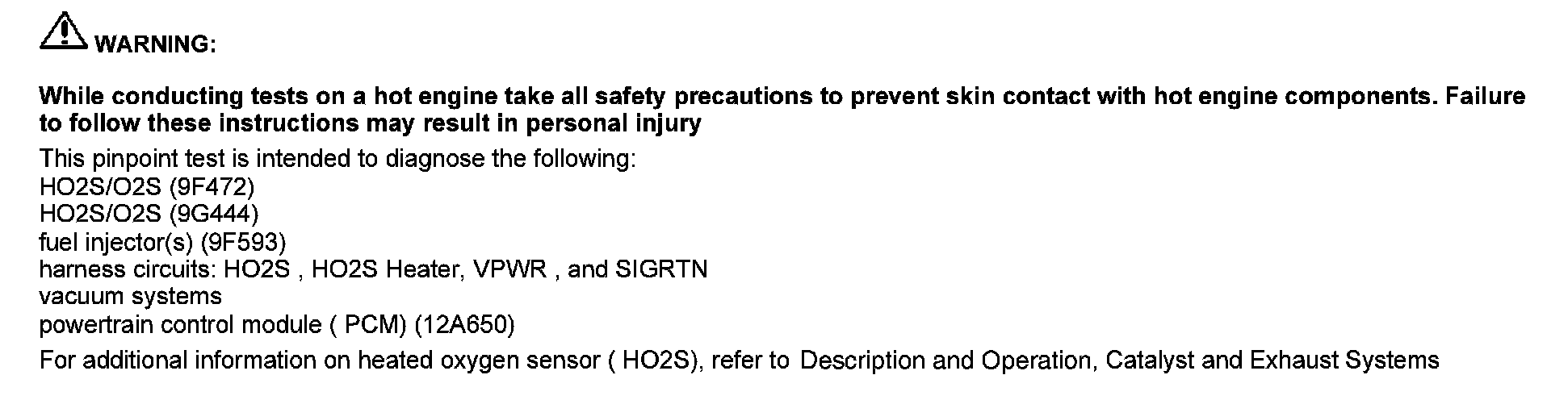

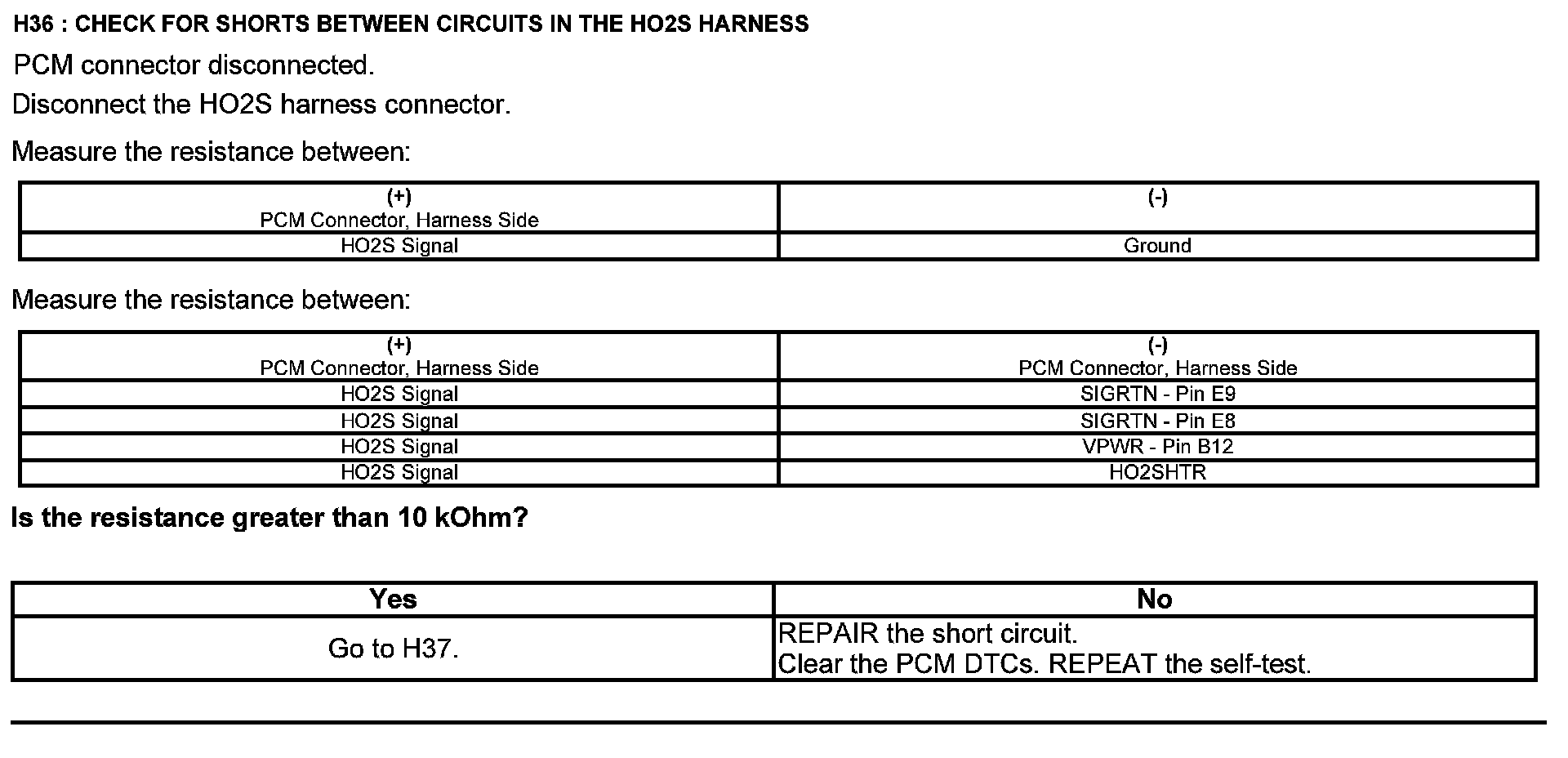

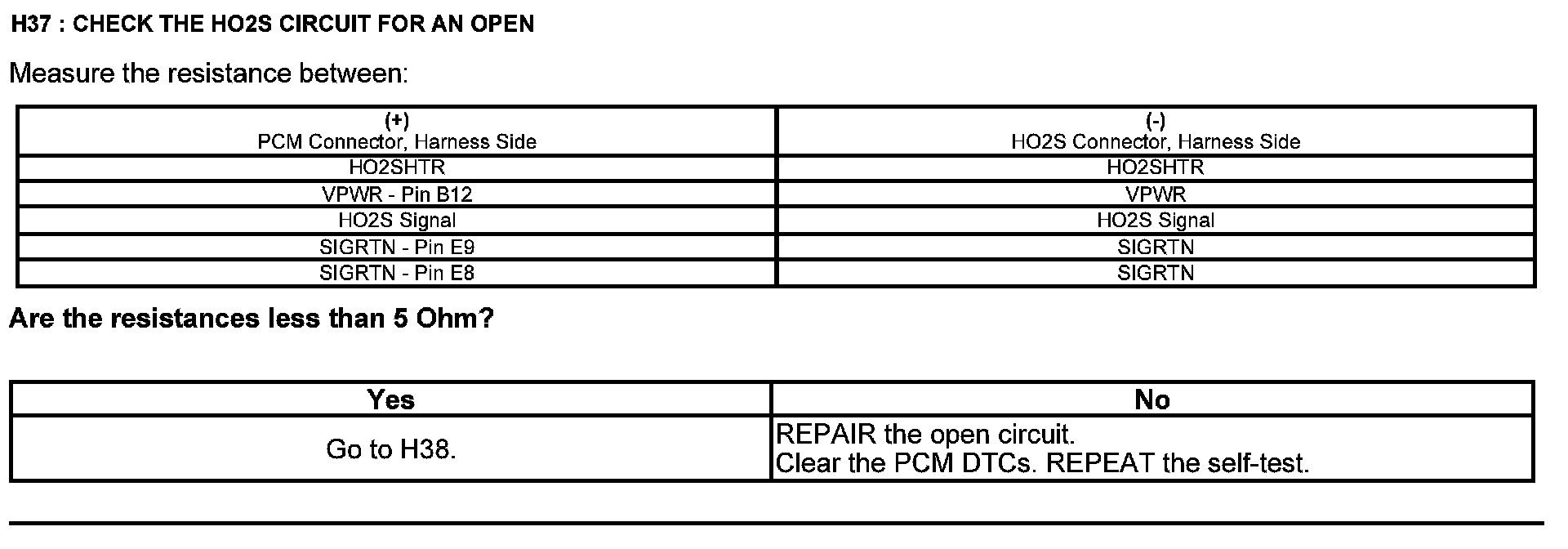

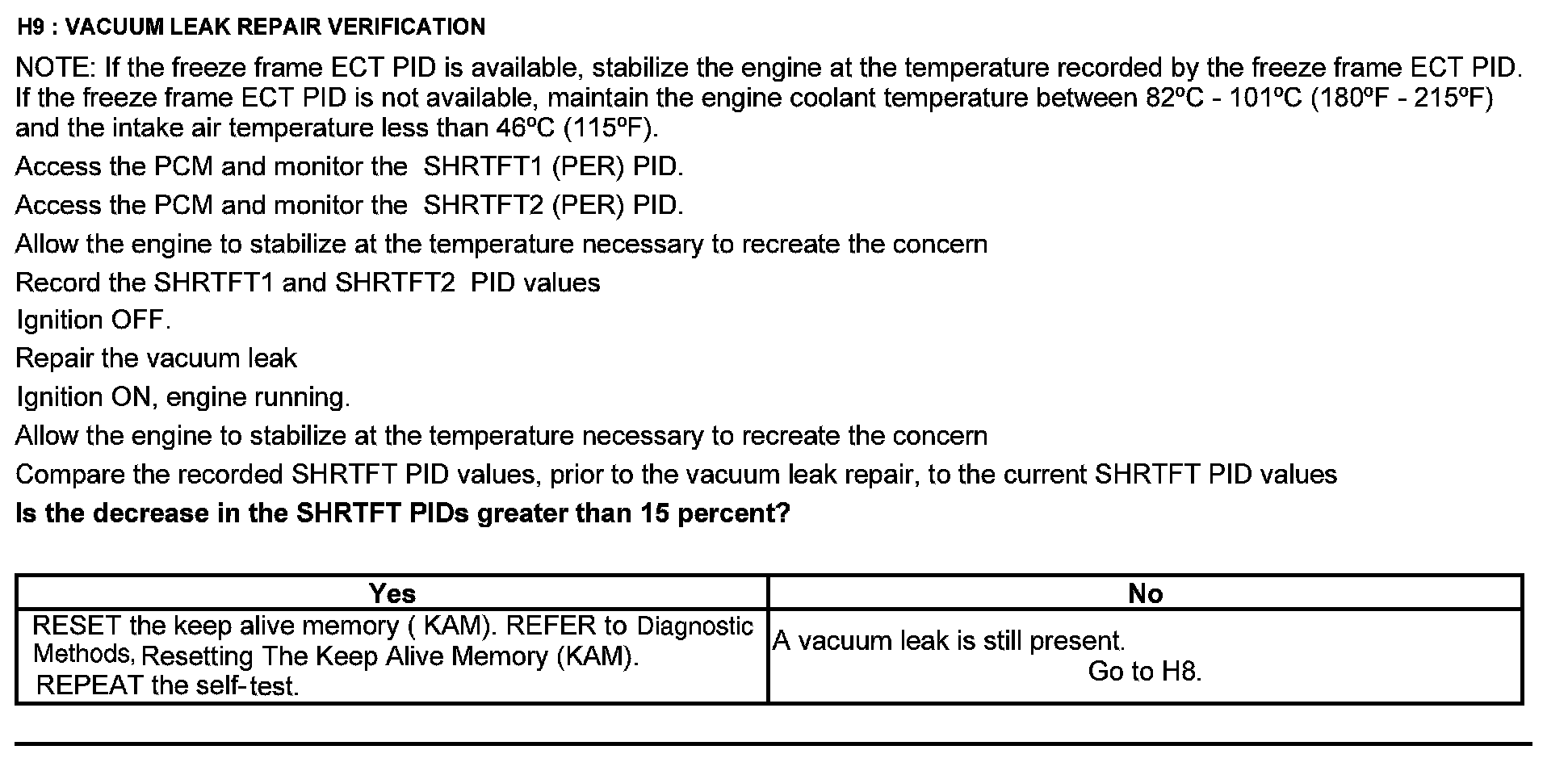

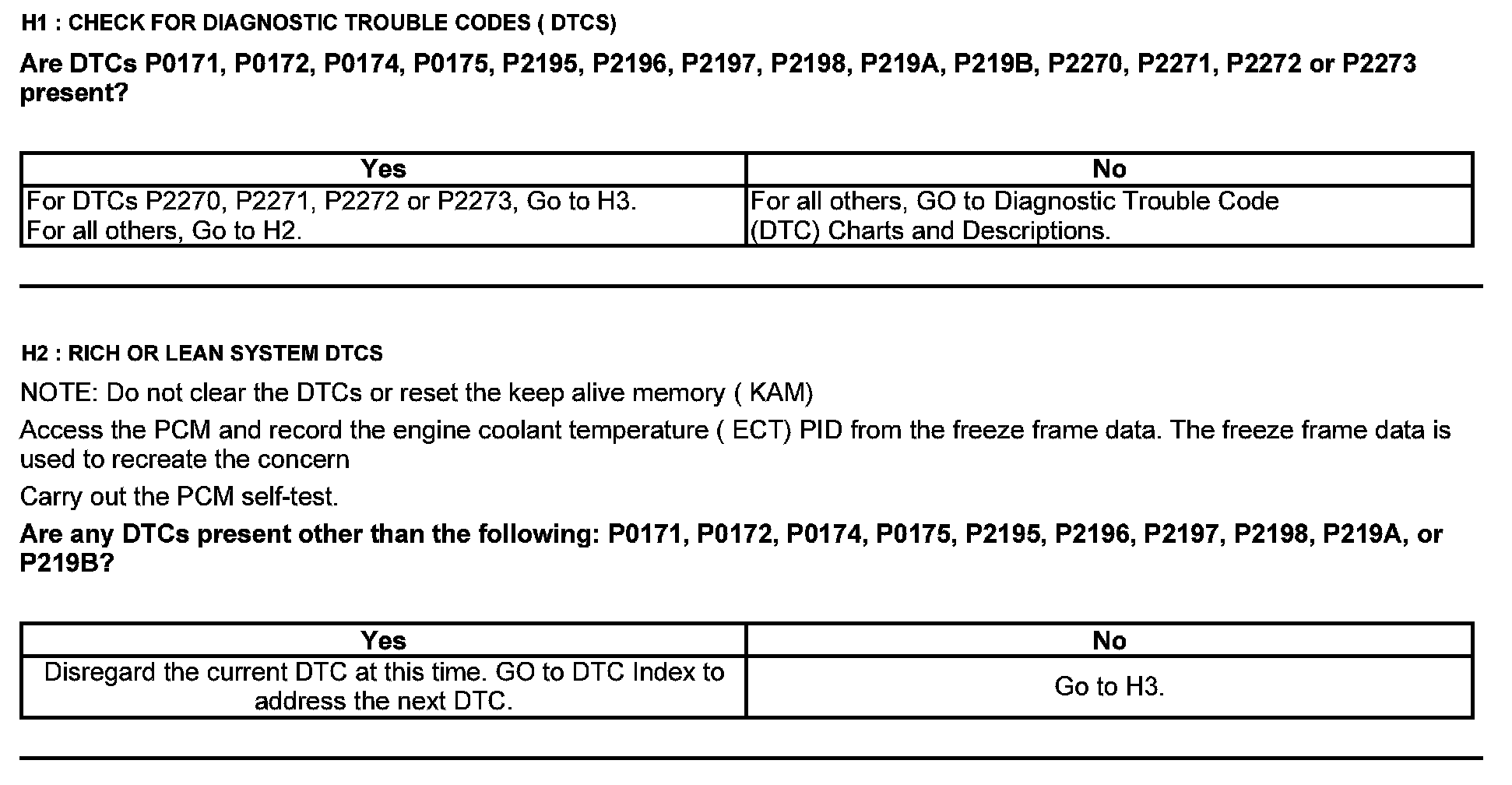

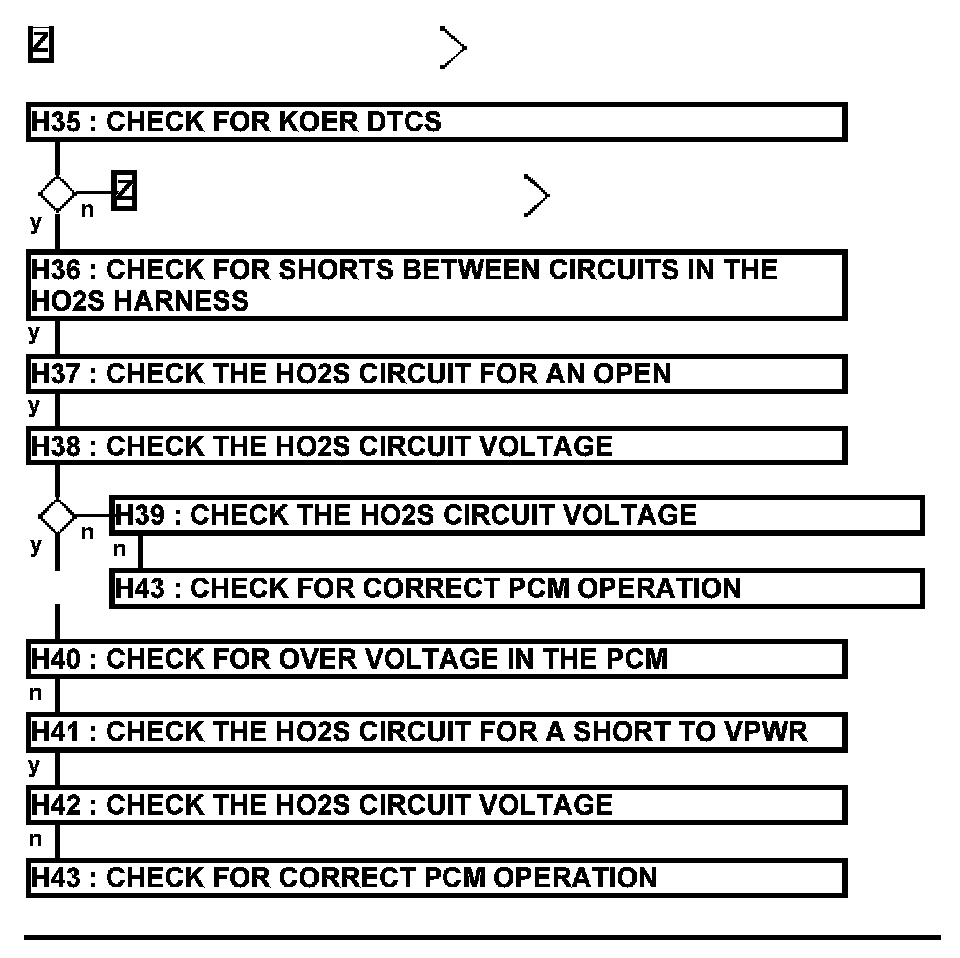

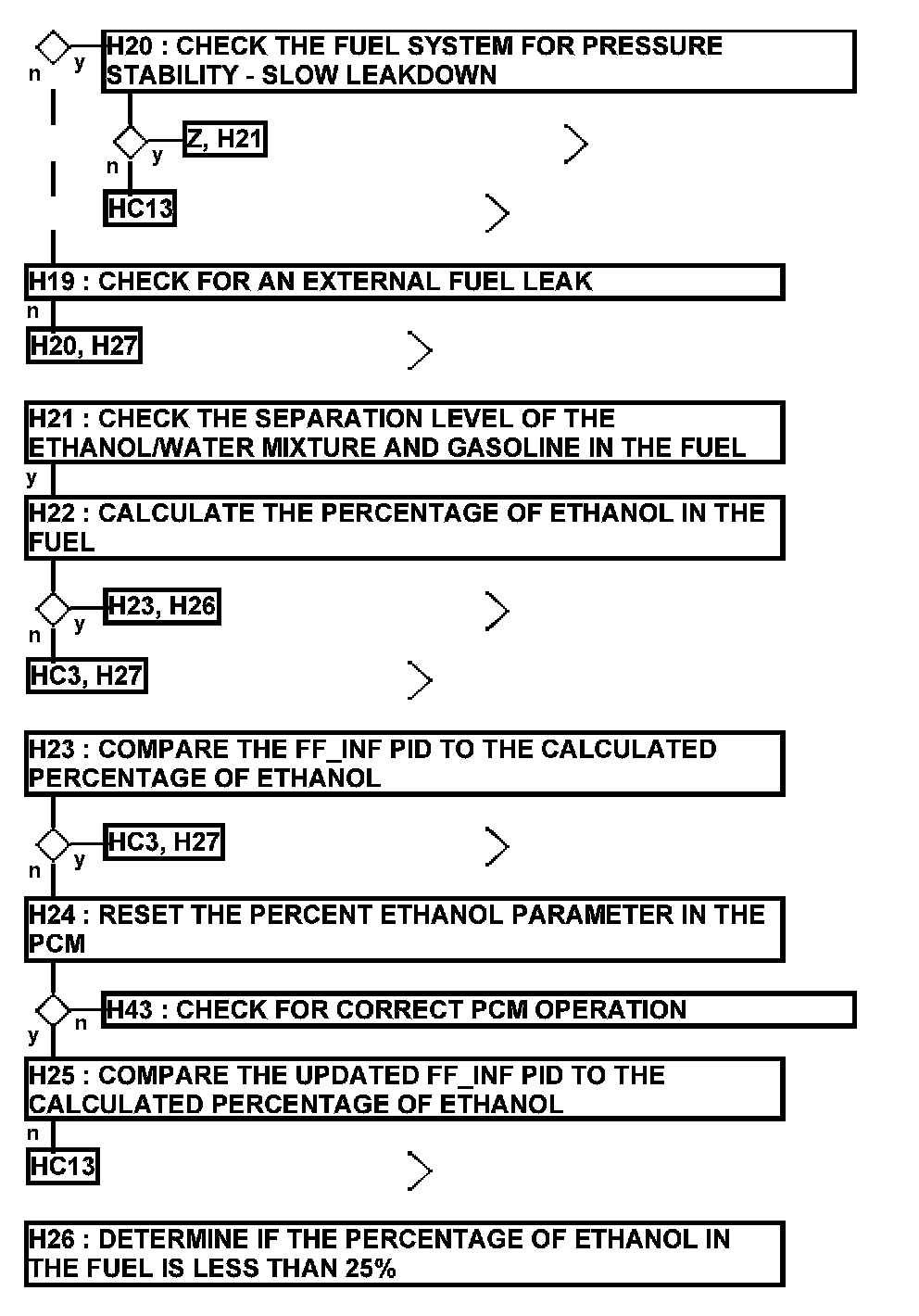

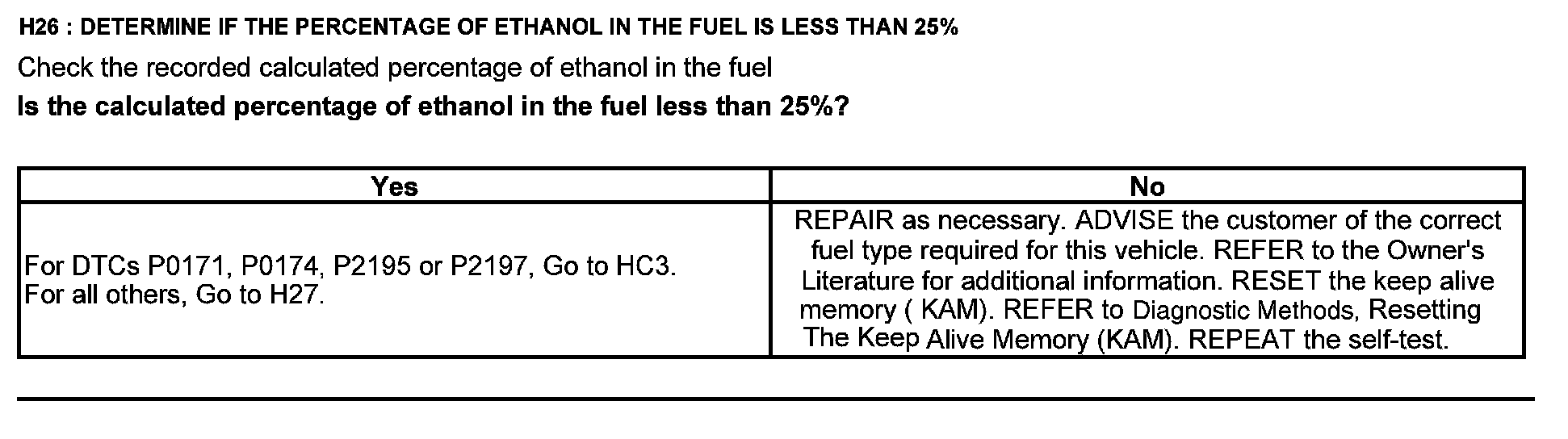

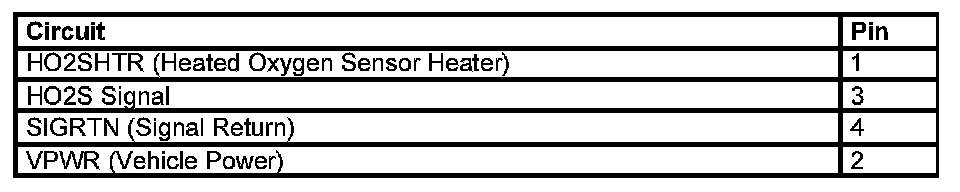

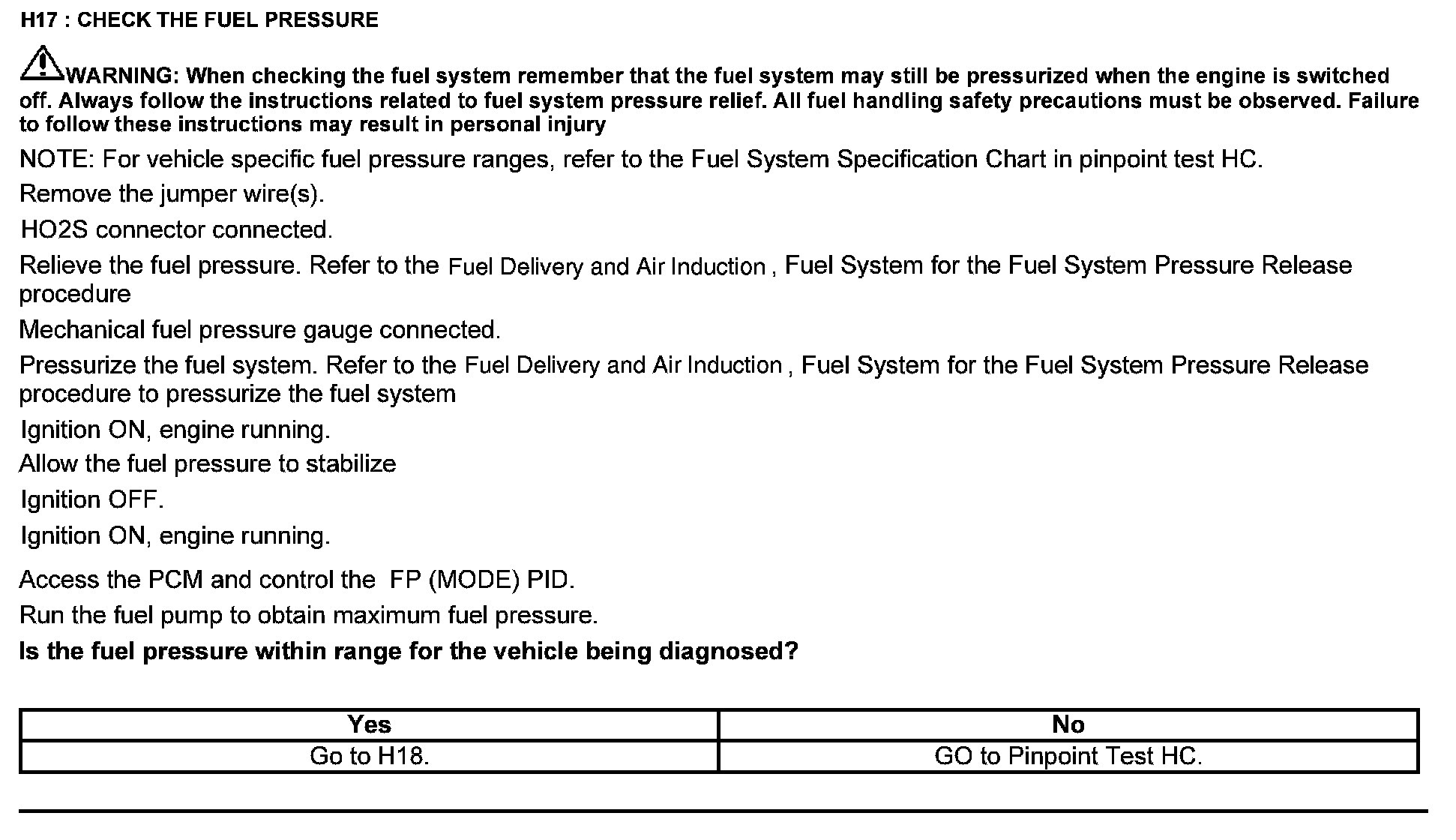

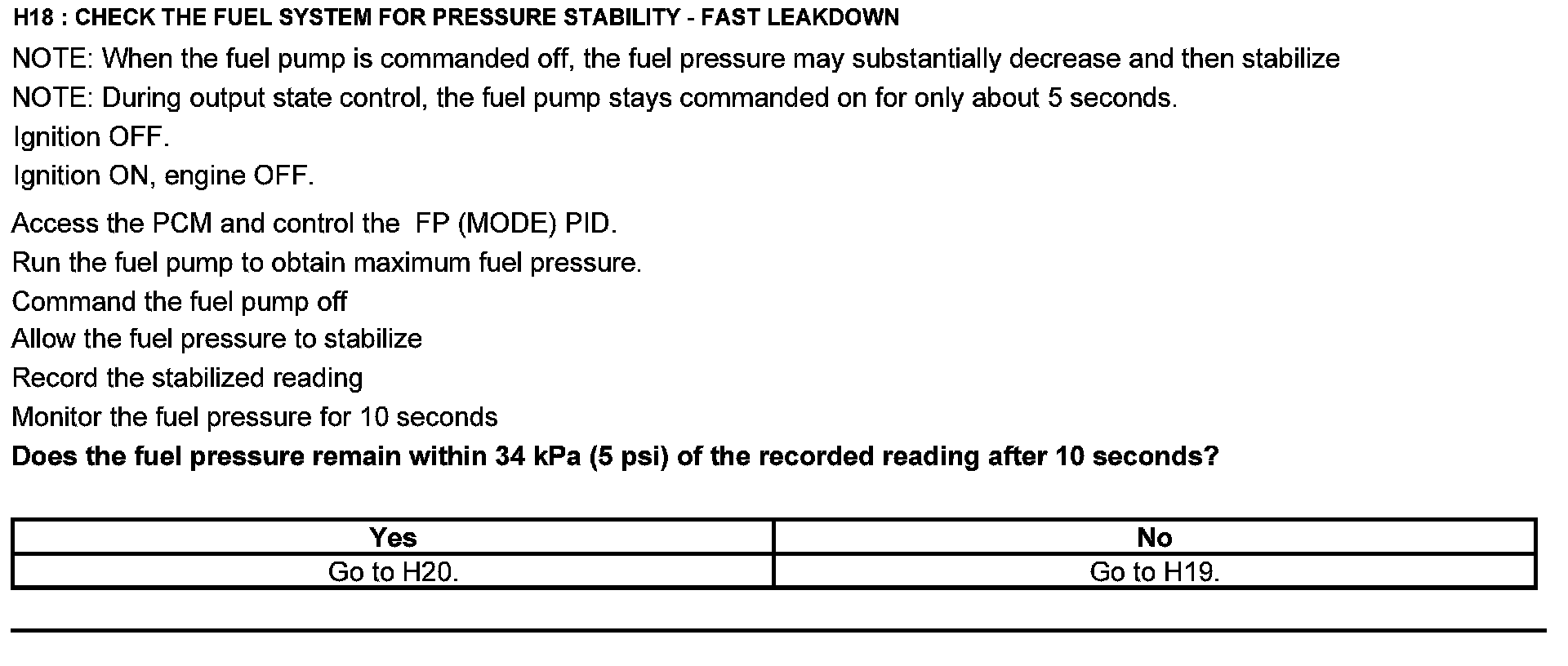

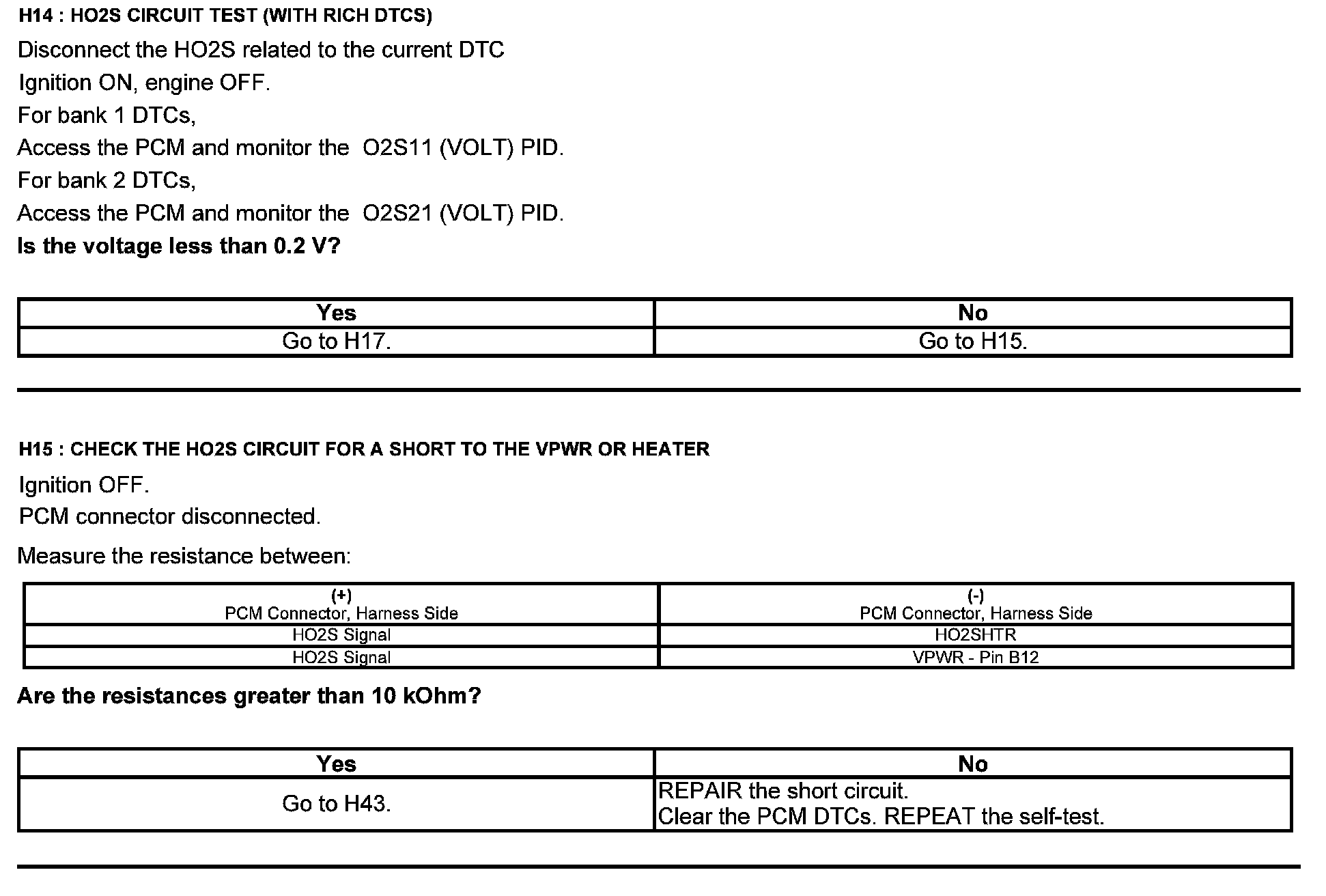

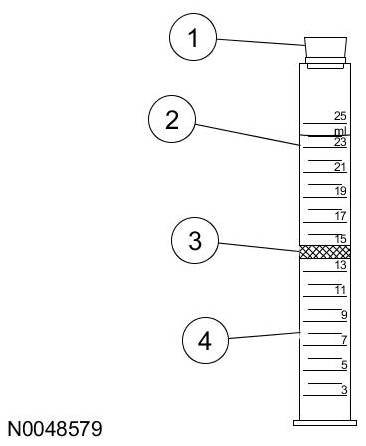

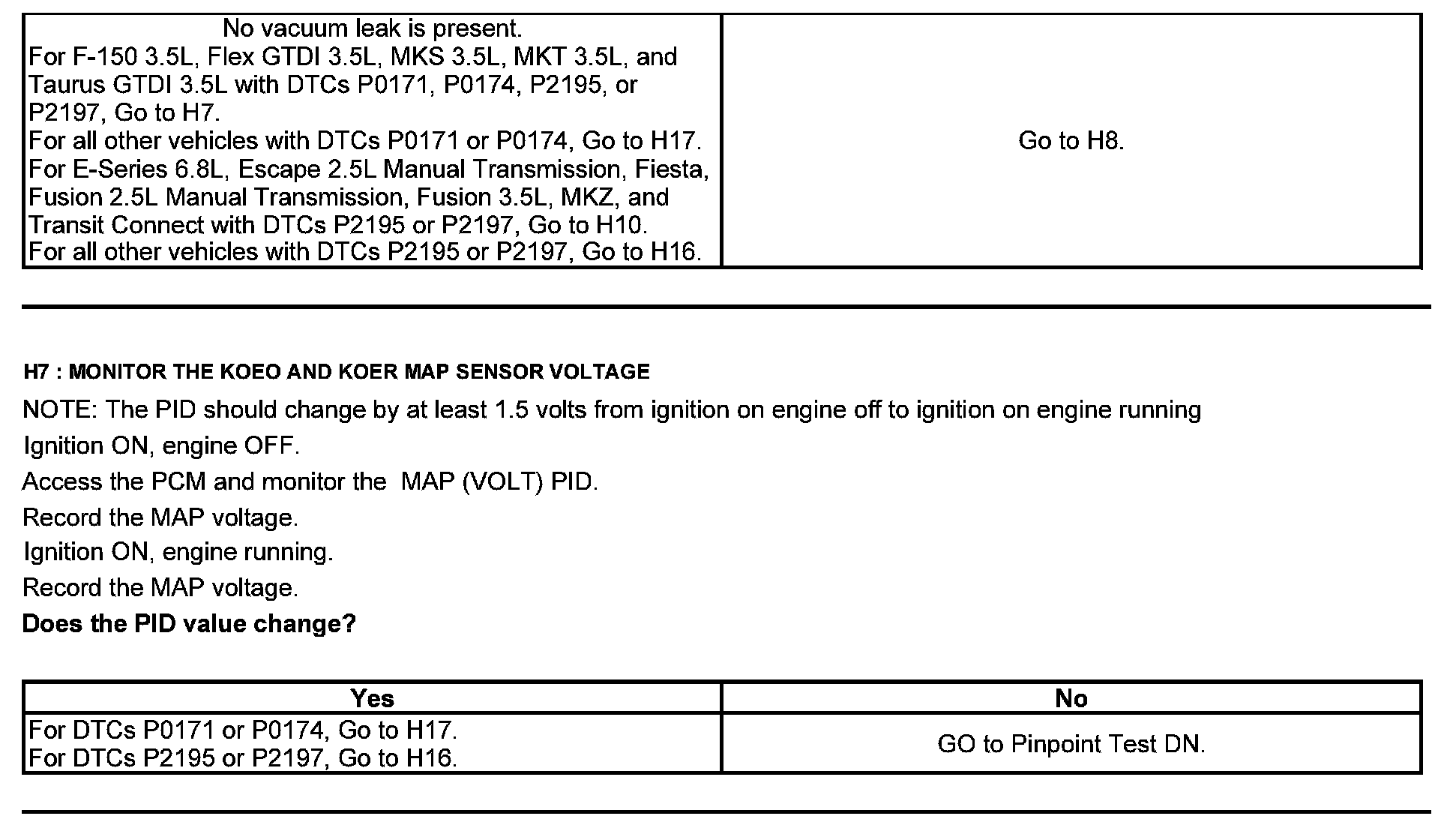

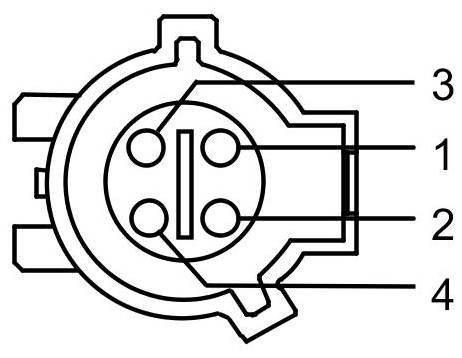

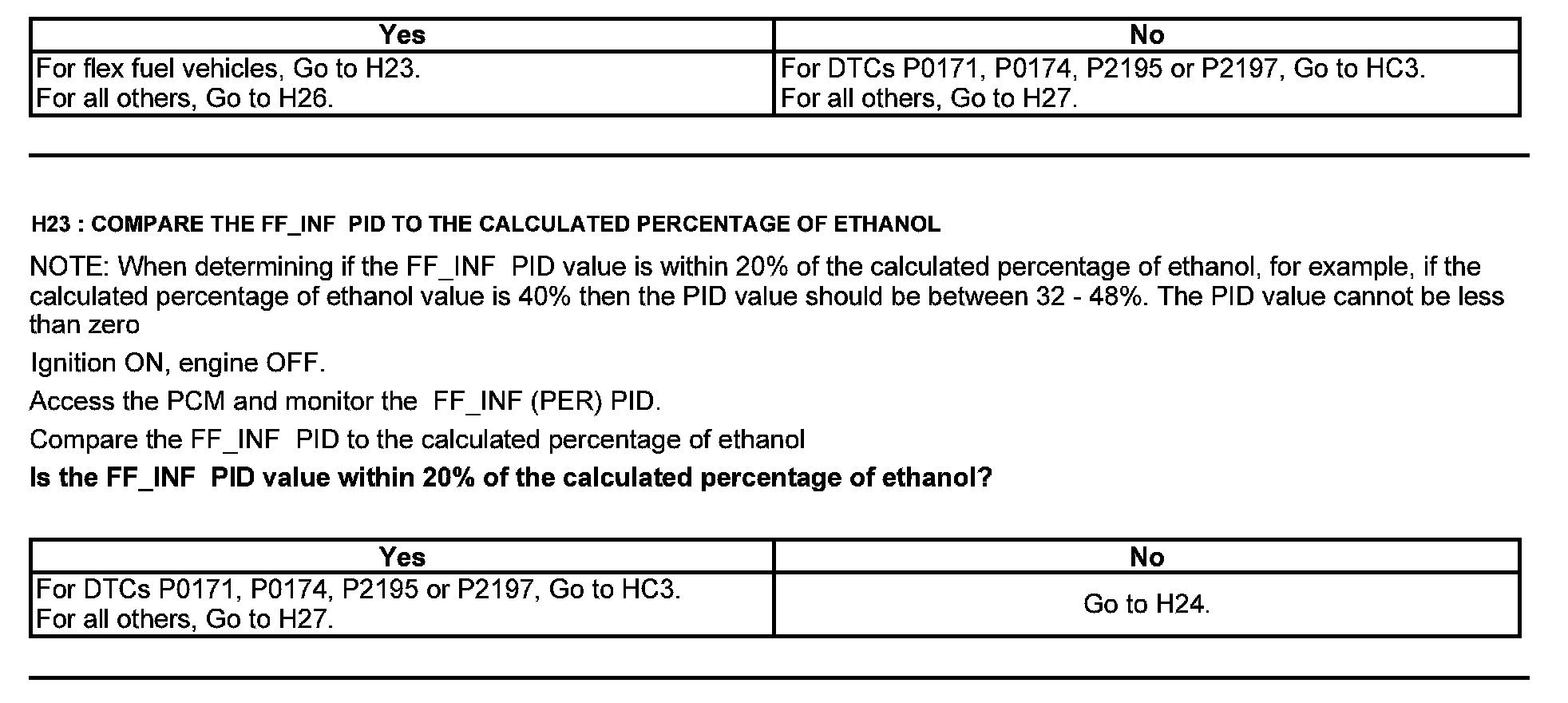

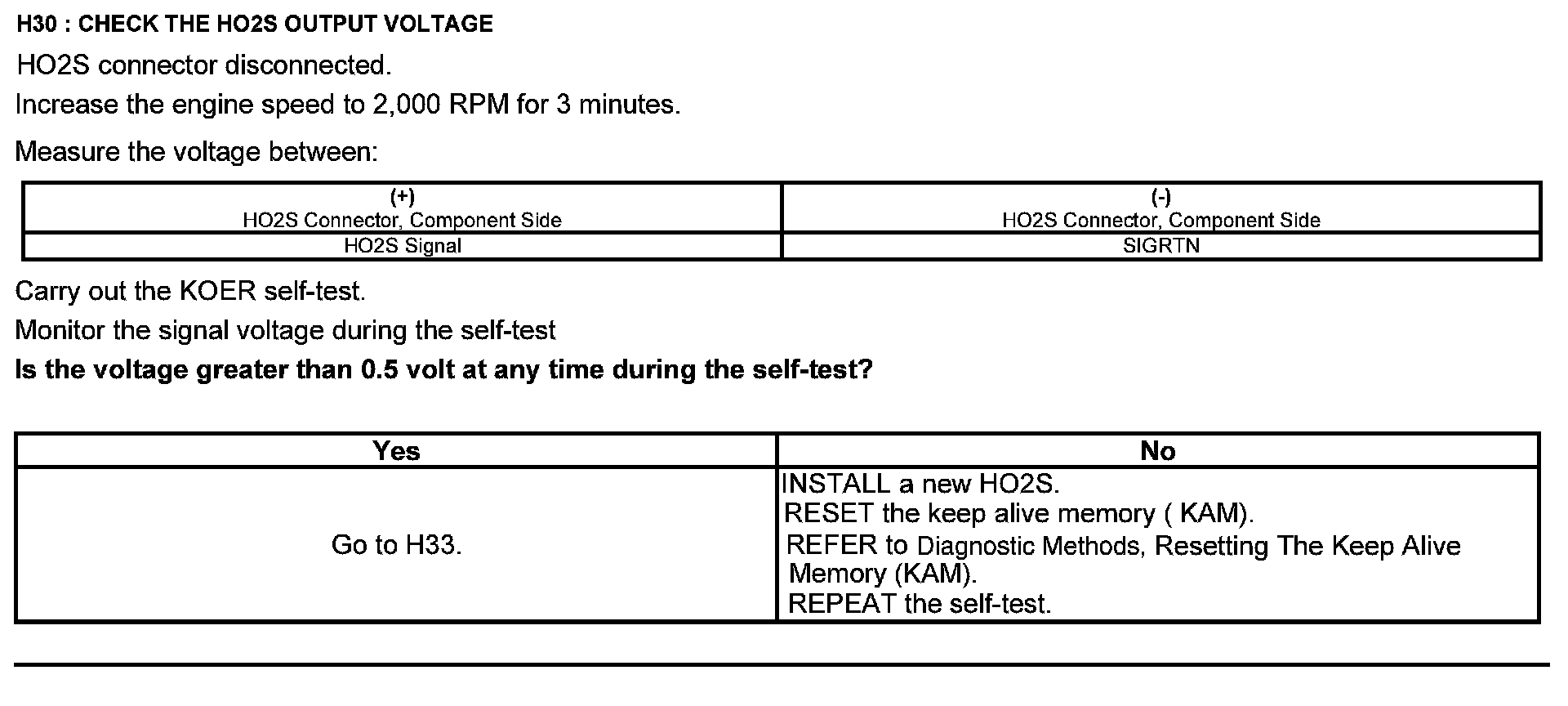

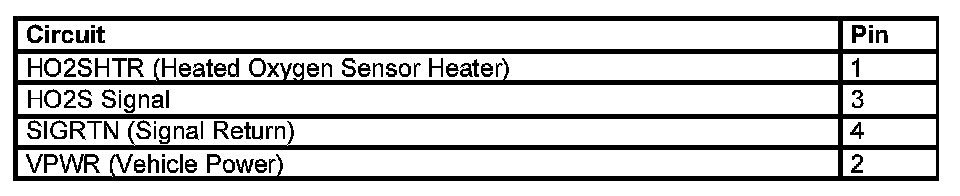

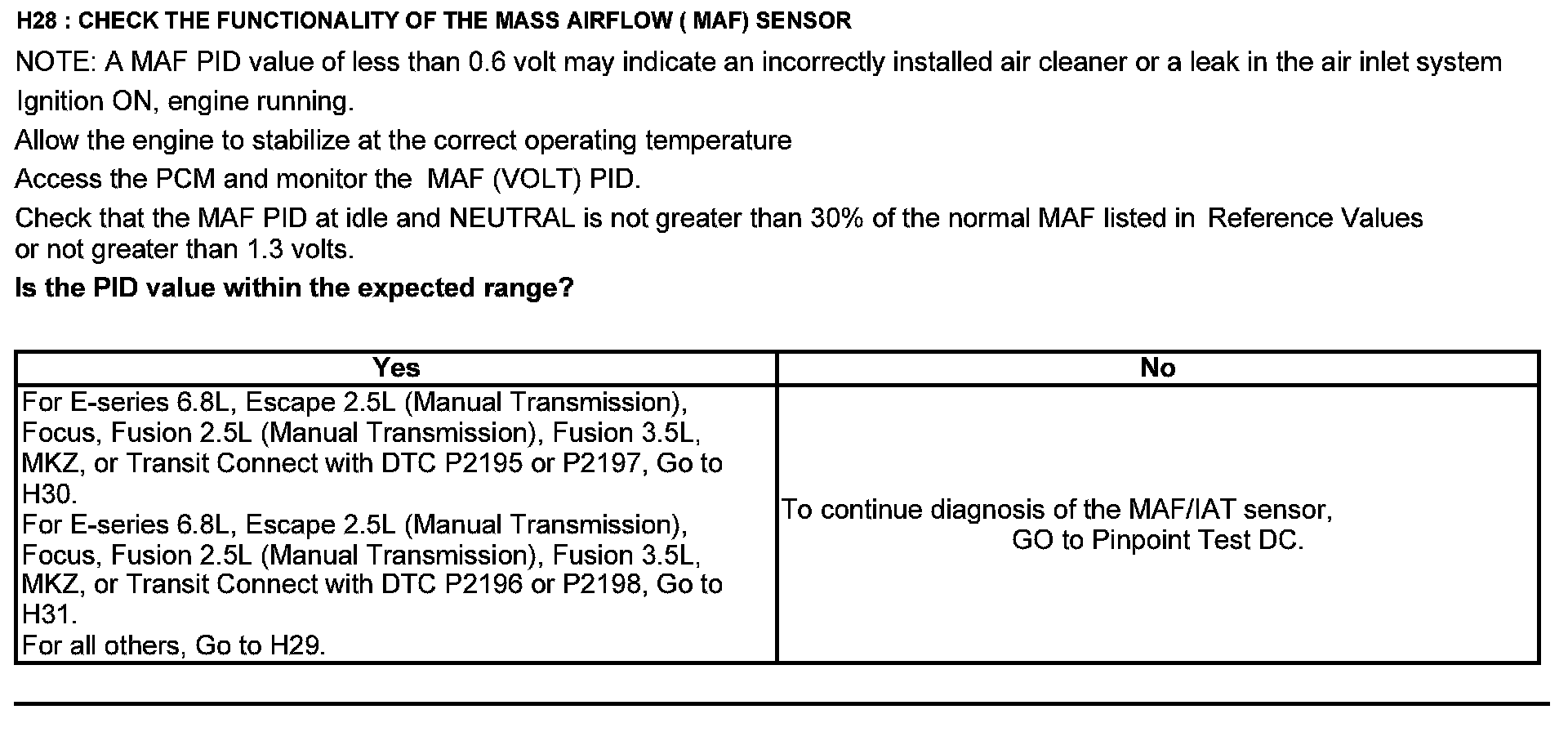

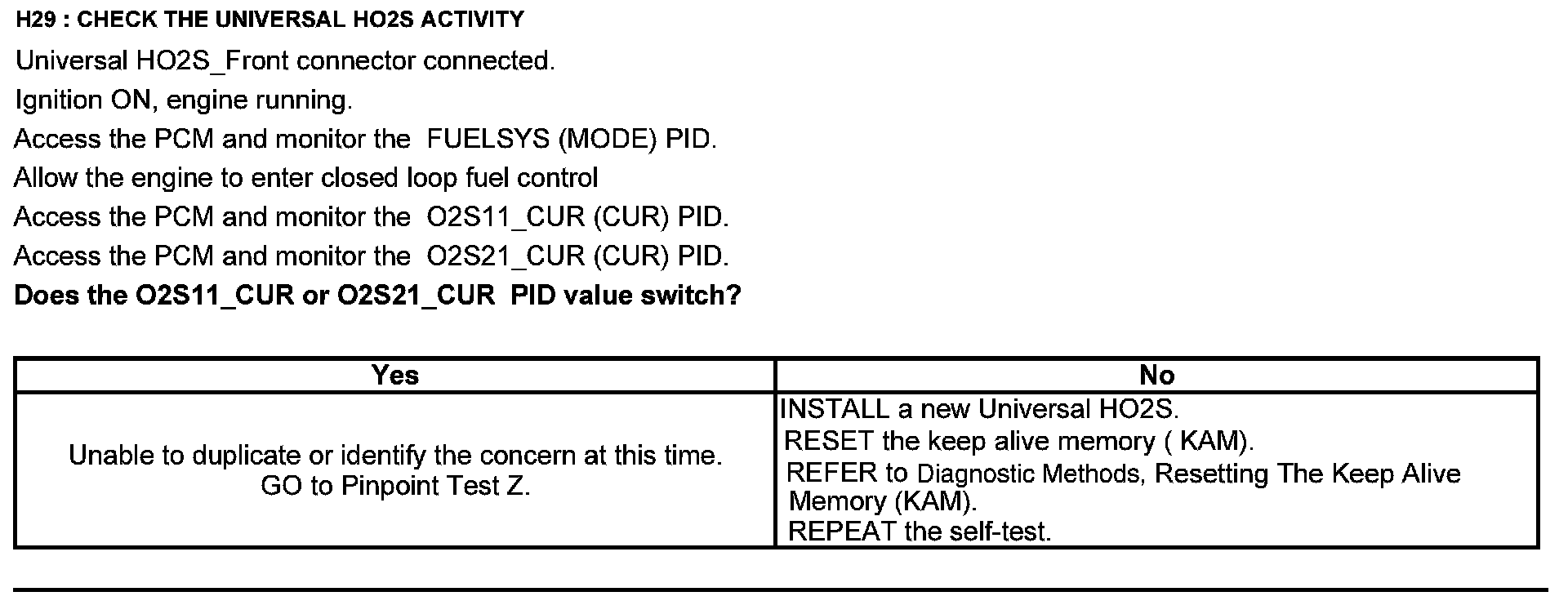

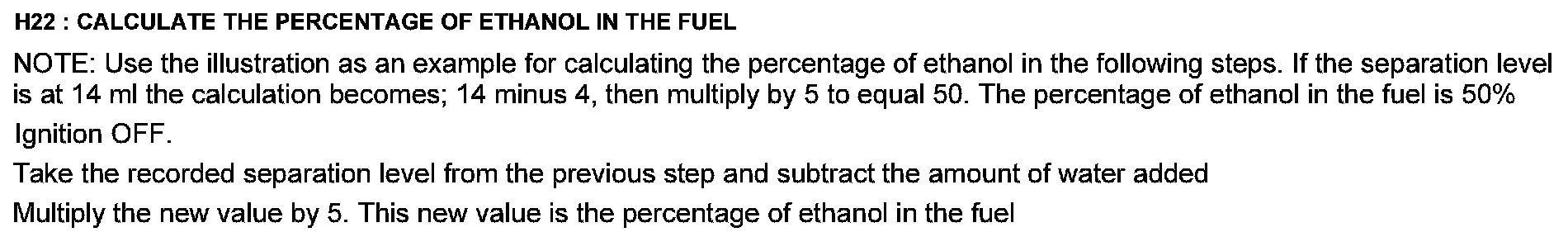

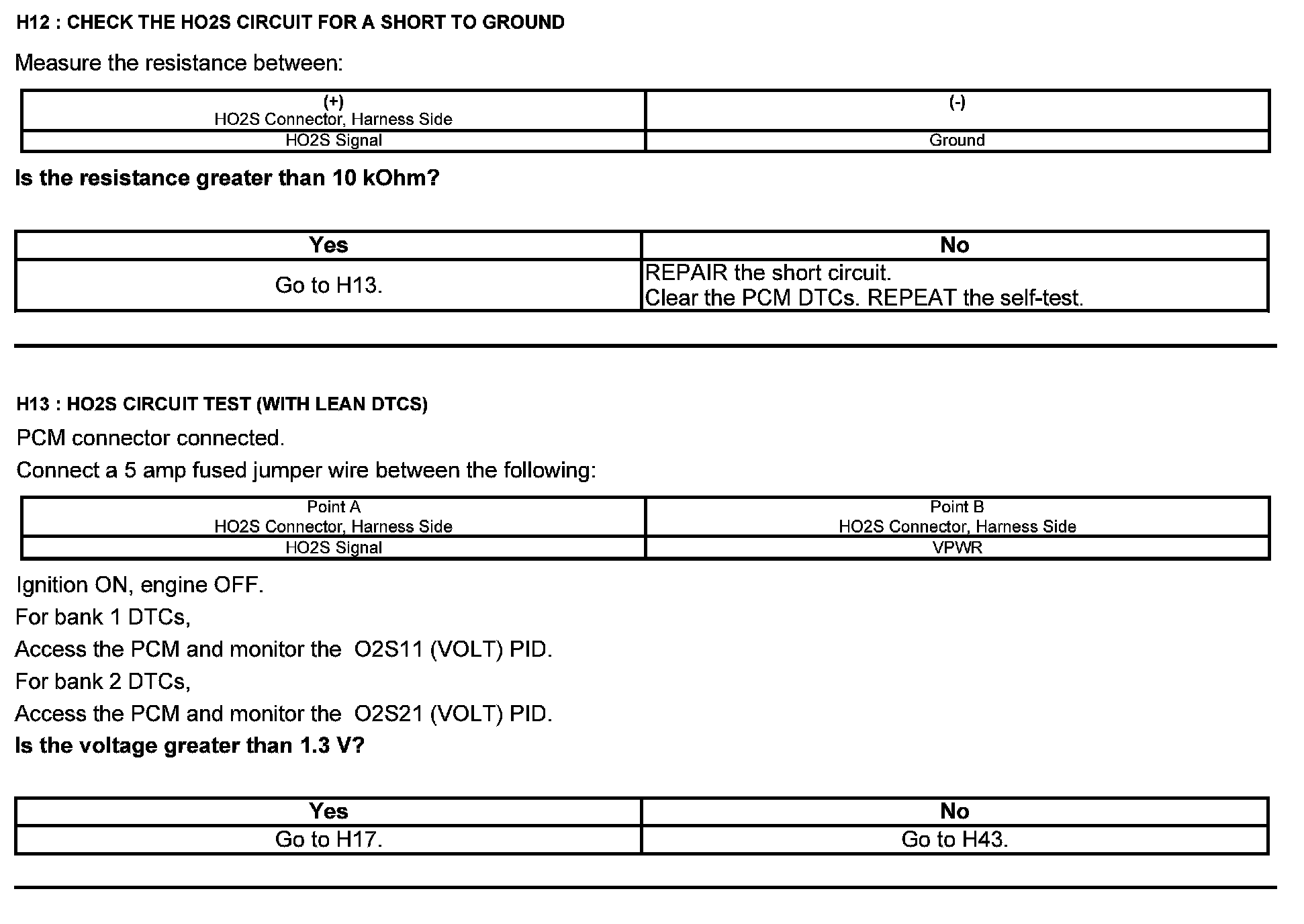

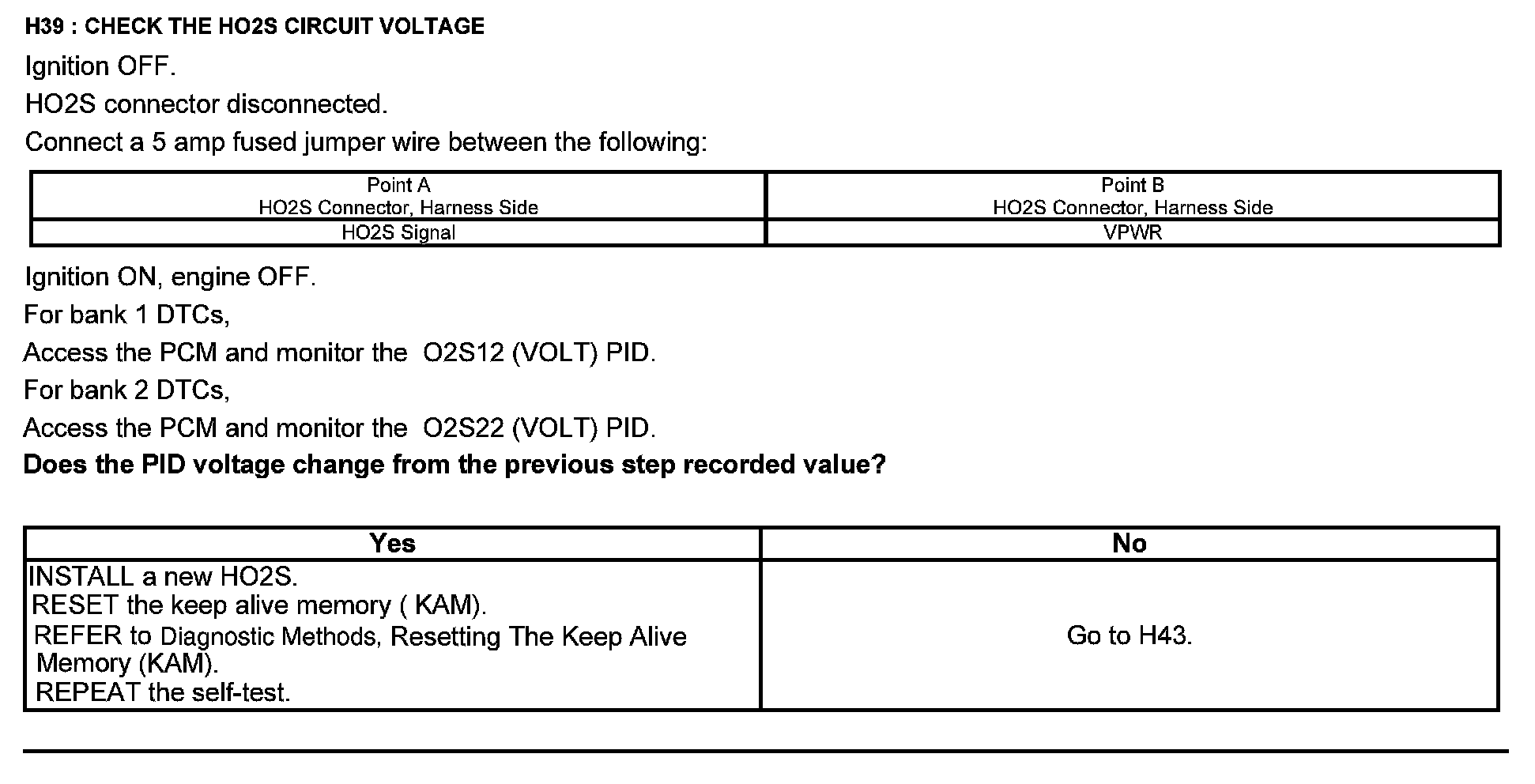

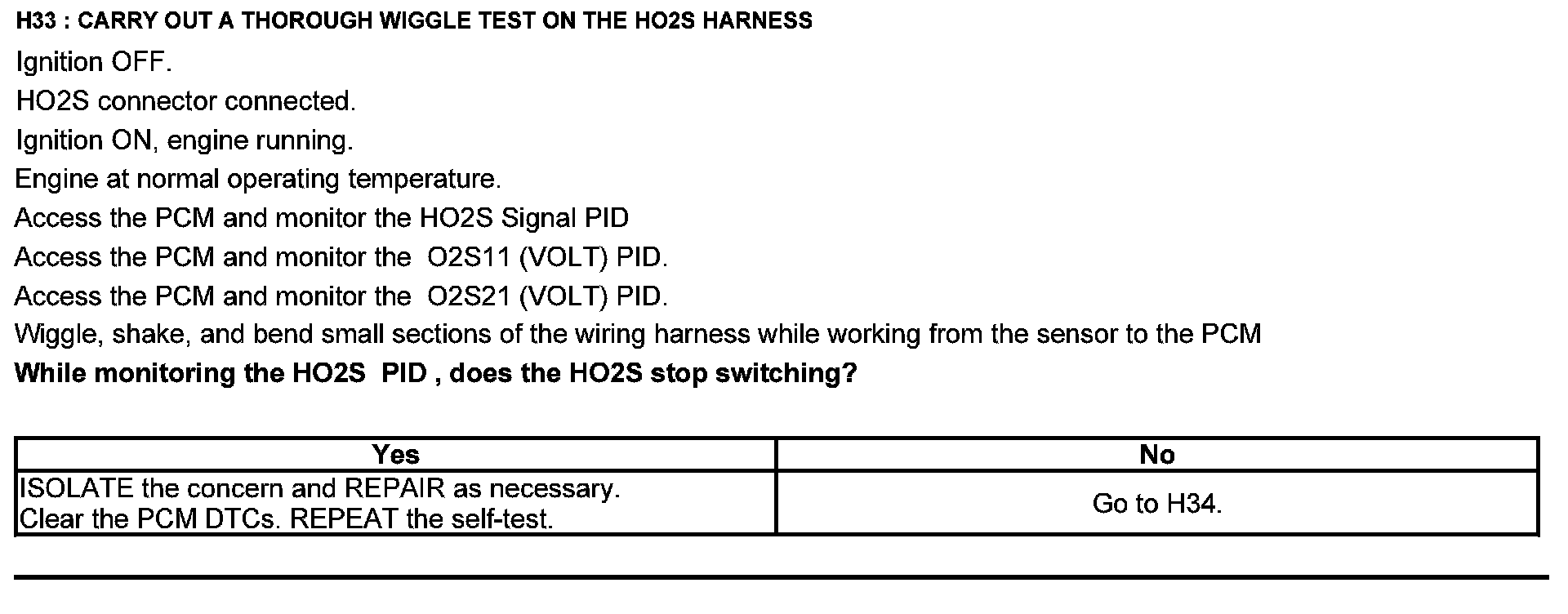

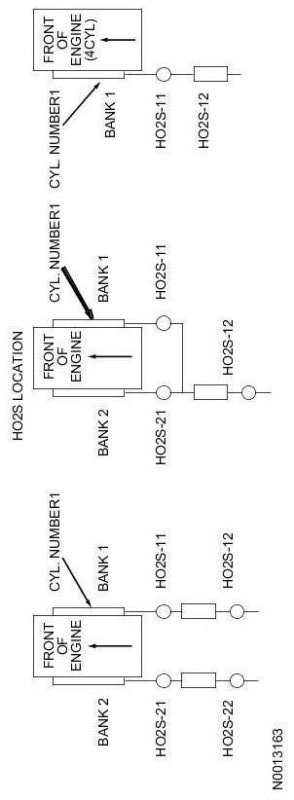

Heated Oxygen Sensor-Front (HO2S-Front) Connector - The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.





Harness Side






Heated Oxygen Sensor-Rear (HO2S-Rear) Connector - The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.






Harness Side

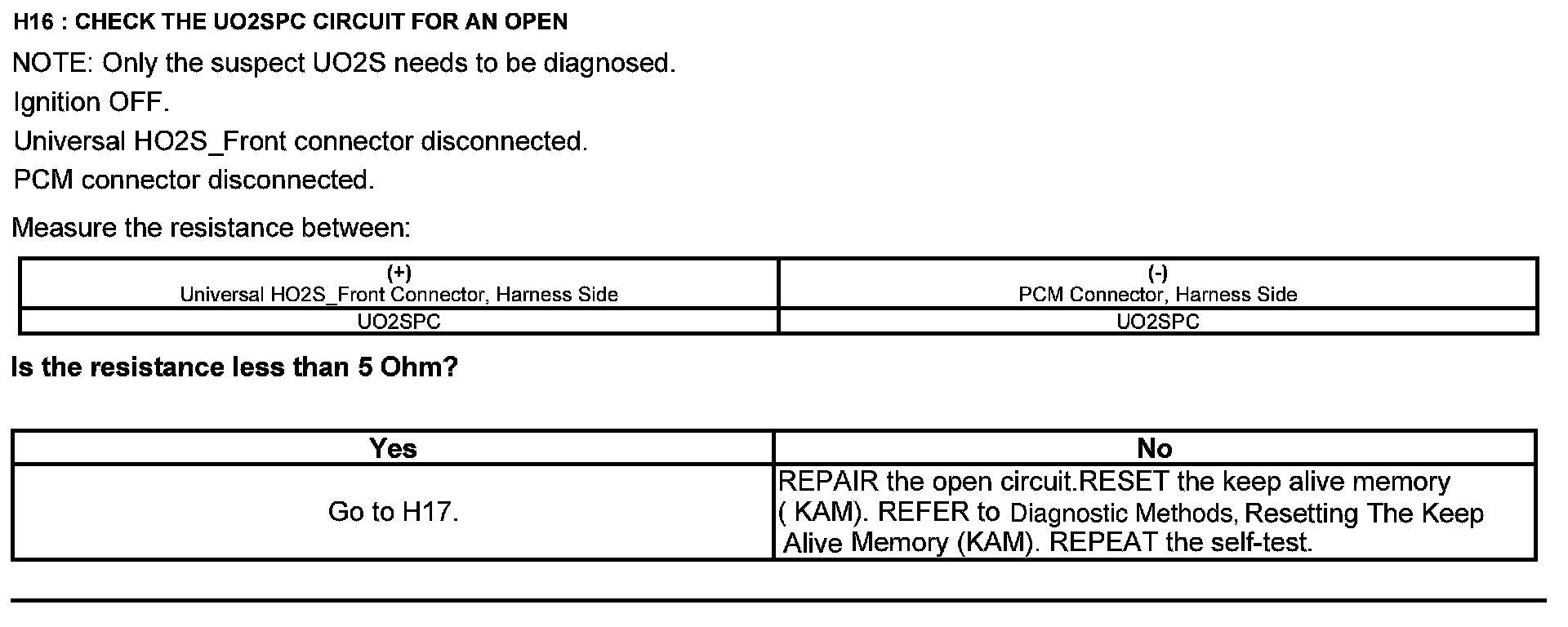

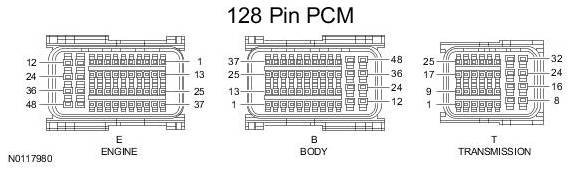

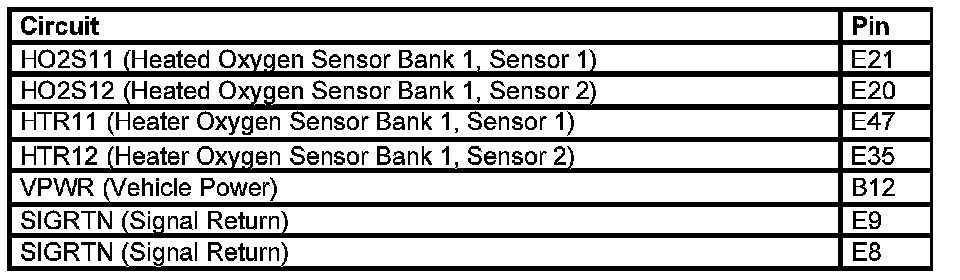

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
