Power and Ground Distribution
>>
Fuse
>>
Locations
>>

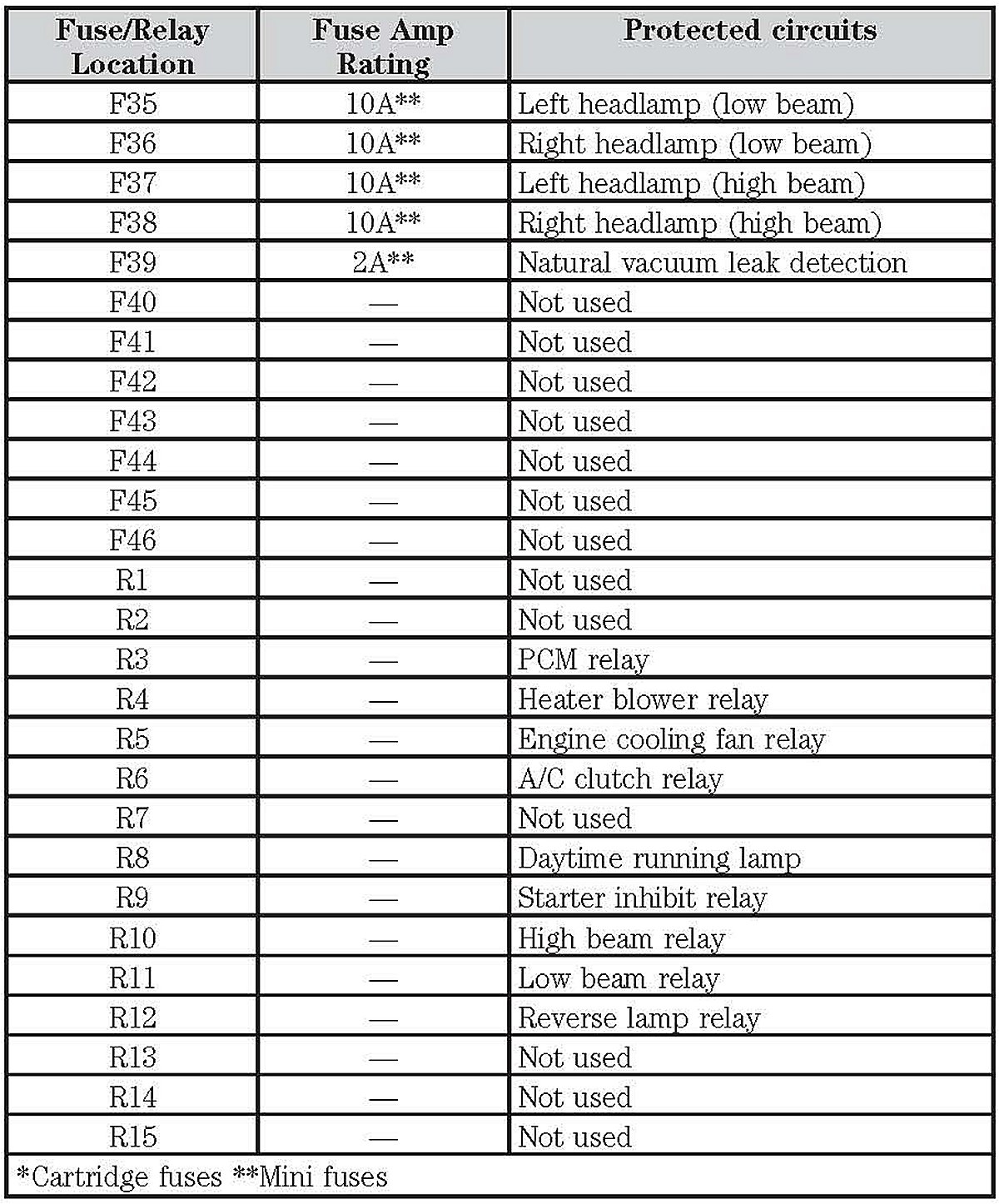

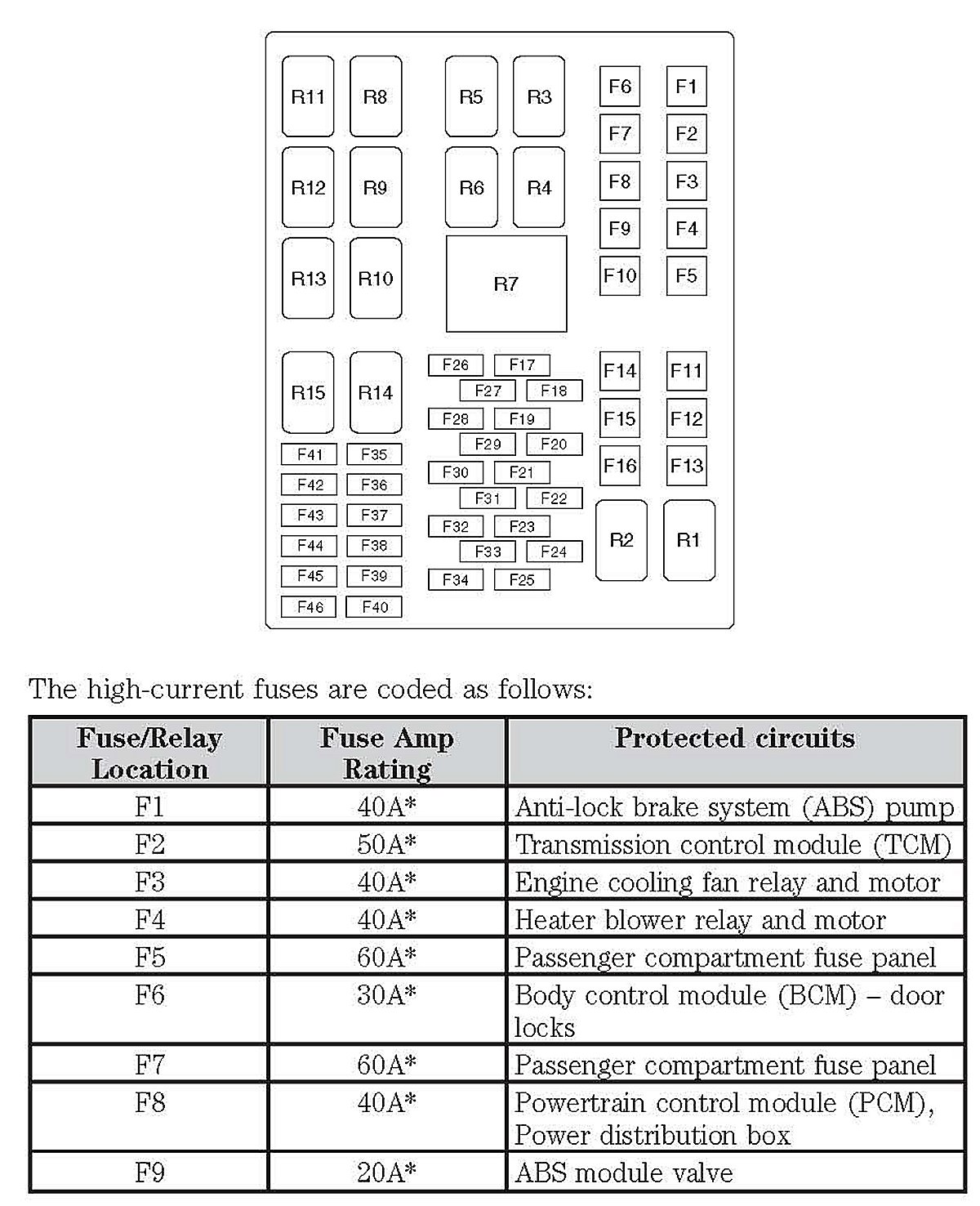

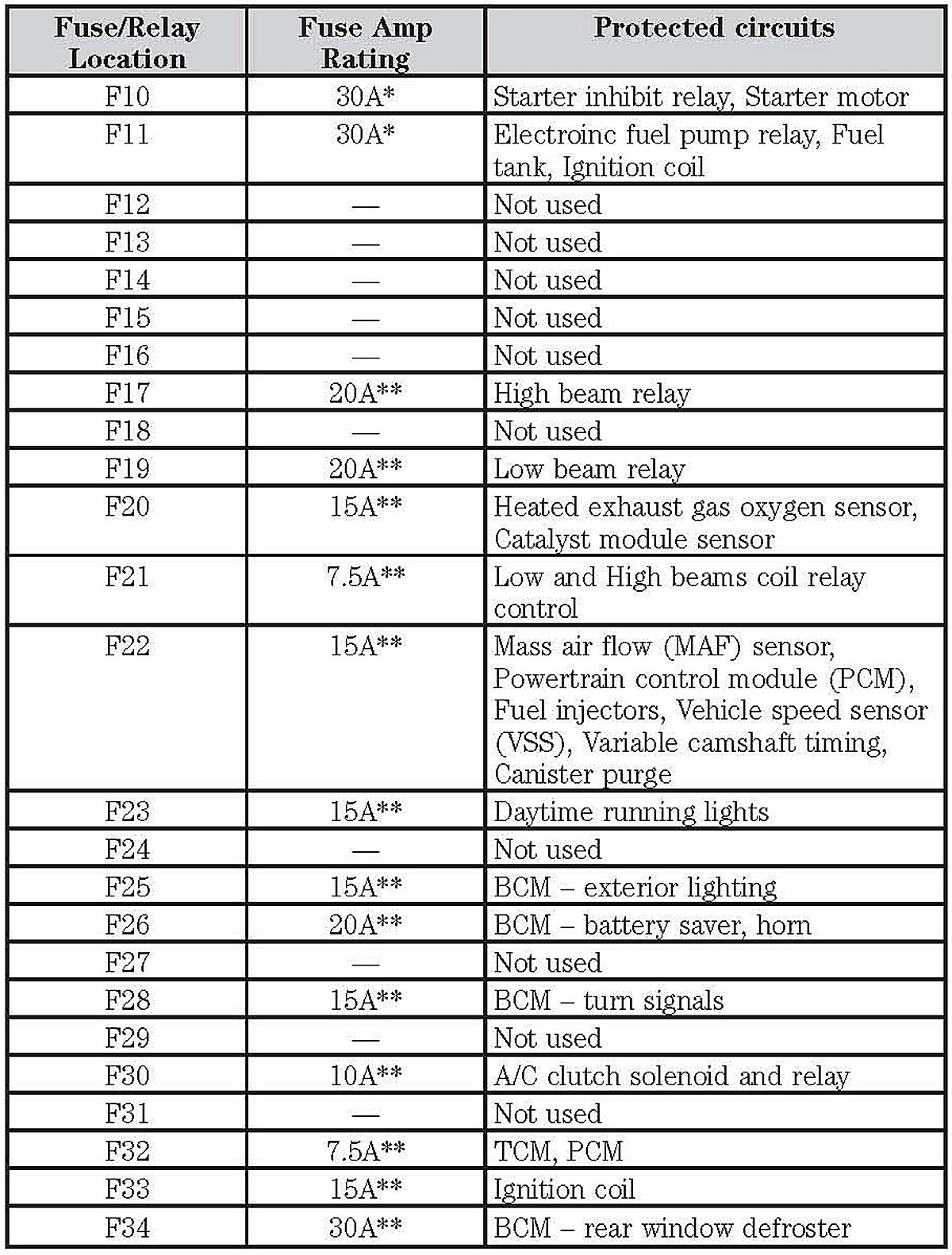

Power Distribution Box
Power Distribution Box
Power Distribution Box
The power distribution box is located in the engine compartment.
