Wiper and Washer Systems

Wiper and Washer System - Exploded View

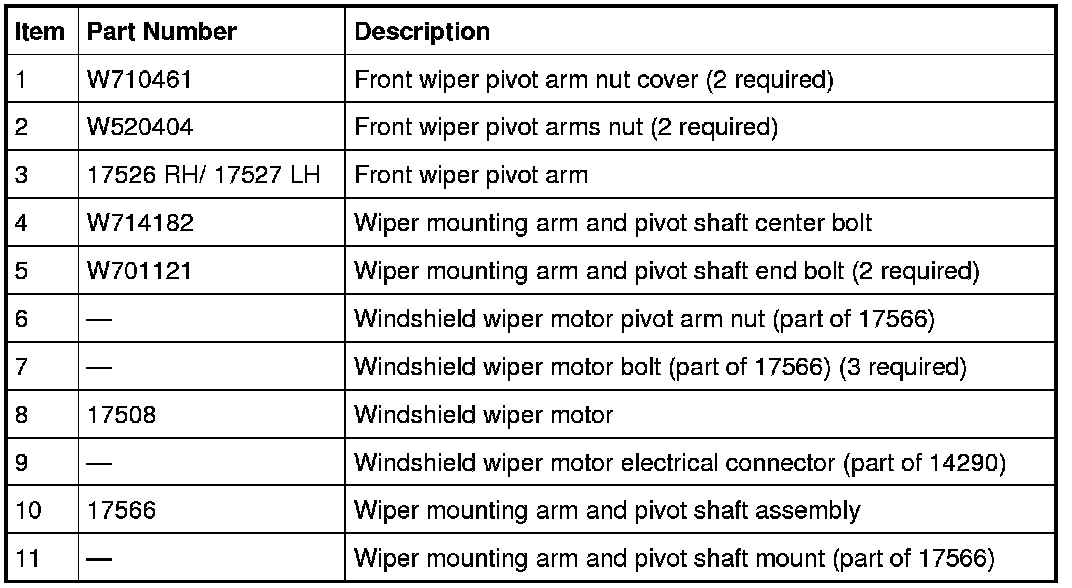

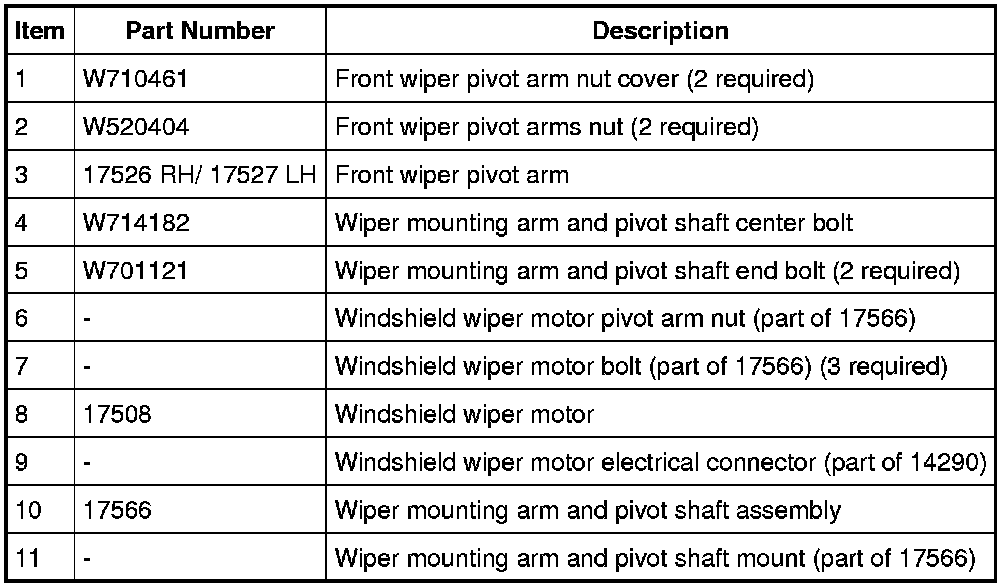

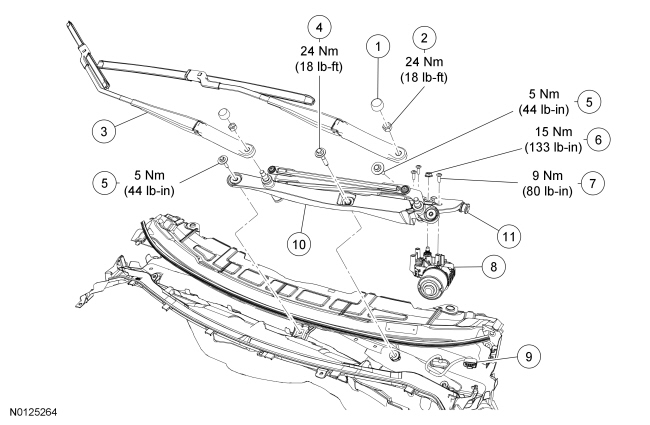

Windshield Wipers

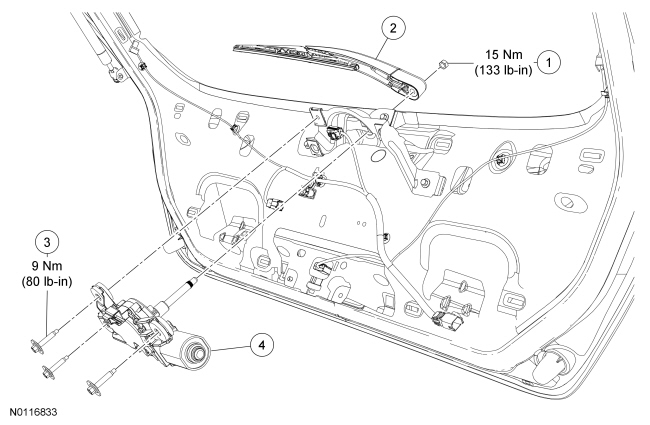

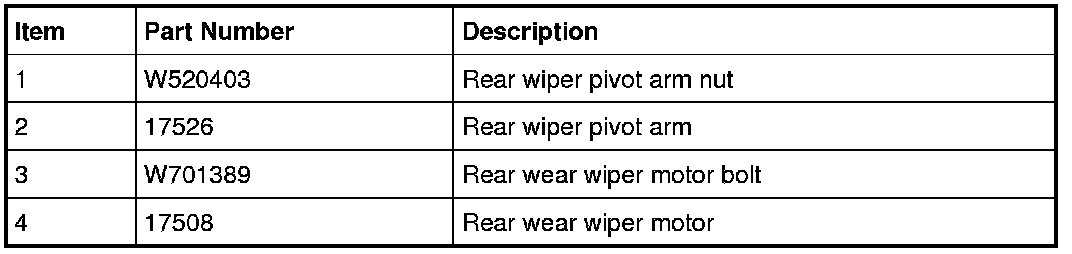

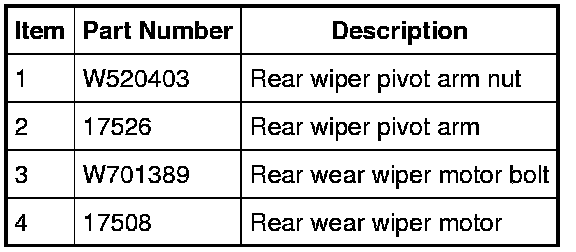

Rear Window Wipers

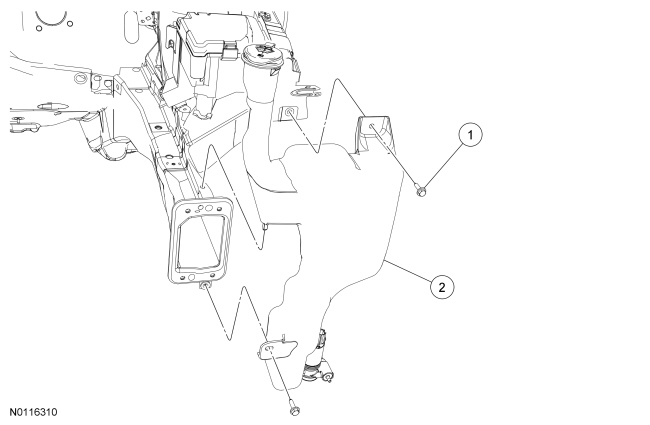

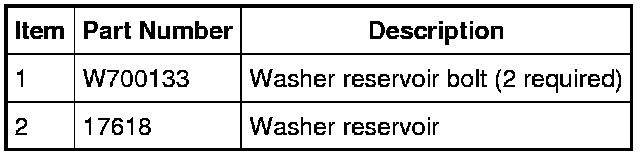

Washer Reservoir

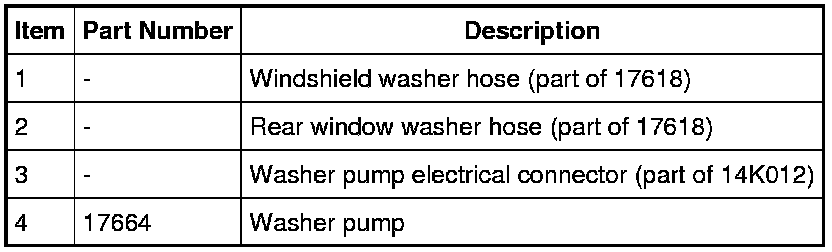

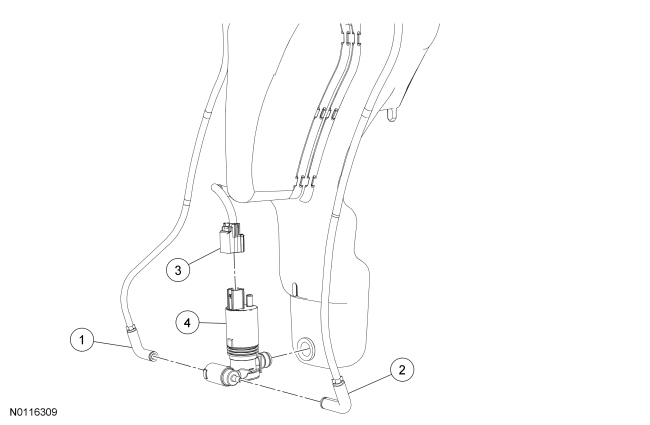

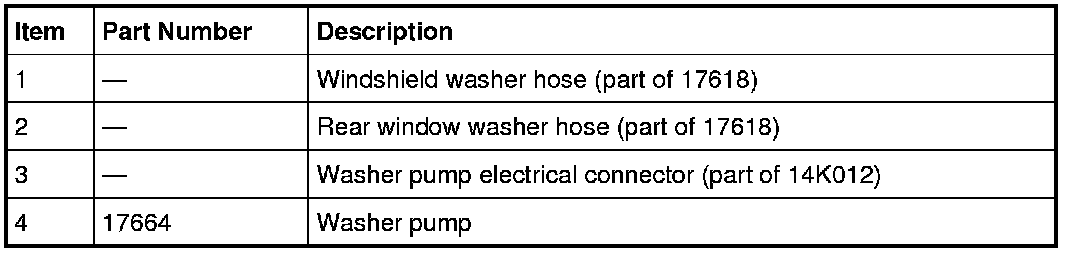

Washer Pump

NOTE: 5 door washer pump shown, 4 door washer pump similar.
